Garmin VHF 115 GAR 010-02096-00
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

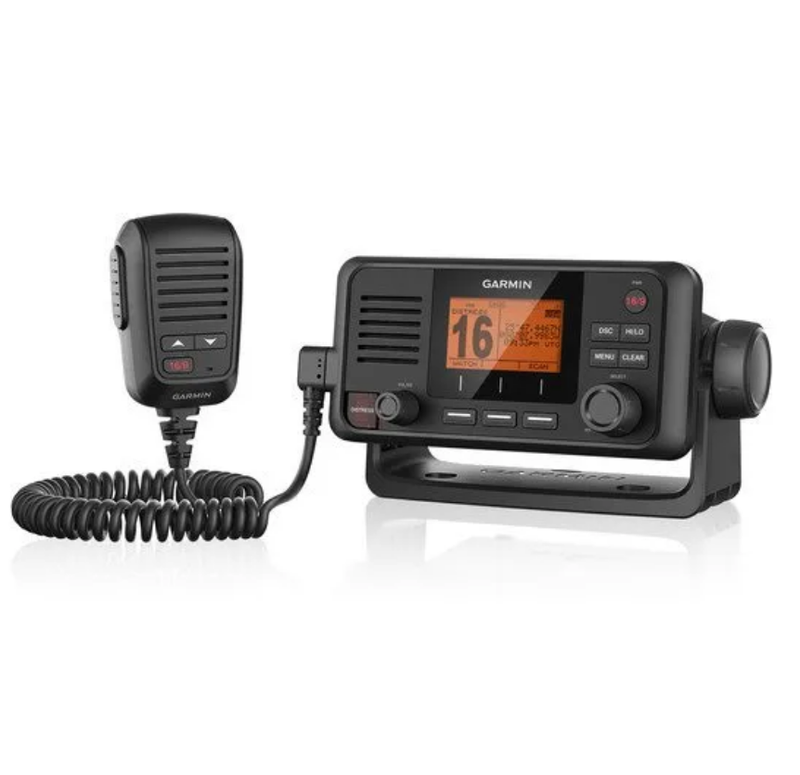

Garmin VHF 115 010-02096-00 is a 25-watt fixed-mount VHF marine radio with Class D DSC, built-in GPS, NMEA 2000 integration, NMEA 0183 support, U.S. / Canadian / international marine channels, and NOAA weather channel access. It is designed for reliable onboard communication, emergency DSC calling, and clean integration with compatible Garmin chartplotters and multifunction displays.

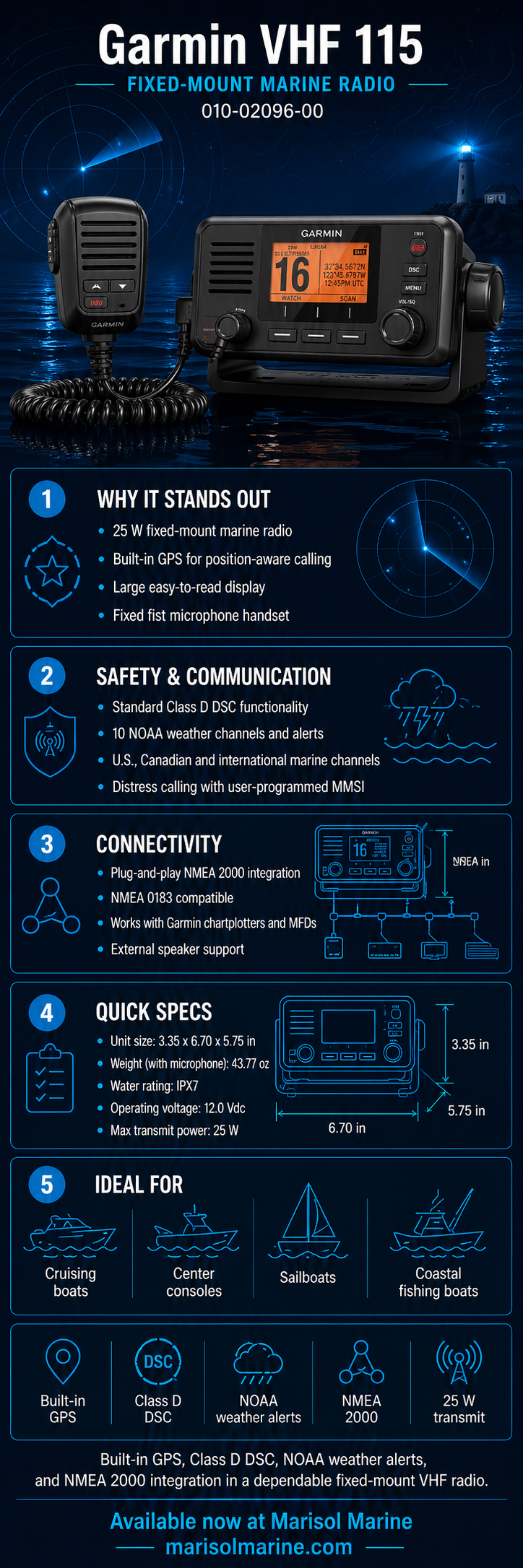

Key Features
- Garmin part number 010-02096-00.
- 25-watt fixed-mount VHF marine radio.
- Class D Digital Selective Calling for distress calling and direct calling with programmed MMSI.
- Built-in GPS / GNSS receiver.
- Supports GPS and GLONASS positioning.
- Supports WAAS / EGNOS differential positioning.
- NMEA 2000 compatible for Garmin helm integration.
- NMEA 0183 compatible.
- Includes U.S., Canadian, and international marine channel support.
- Includes 10 NOAA weather channels.
- Supports dual watch and tri watch functions.
- Monochrome FSTN LCD display.
- Water rating: IPX7.
- Approximate dimensions: 3.4" H x 6.7" W x 5.8" D.
- Approximate weight: 43.8 oz / 1.24 kg.
- Operating voltage: 10.8–15.6 Vdc.
- Typical current draw: approximately 600 mA, with transmit draw up to approximately 6 A.
- Antenna connector: SO-239, 50 ohms.
- External GNSS antenna connector: BNC.
- Compass-safe distance: approximately 27" / 70 cm.
Marine Electronics Compatibility
The Garmin VHF 115 is selected by the boat's communication system, antenna setup, helm layout, power supply, GPS needs, and network wiring rather than by engine model. It is suited for boats that need a fixed-mount VHF radio with DSC safety functions and Garmin system integration.
Compatible setup checks include:
- 12V marine electrical system within the listed operating voltage range.
- Proper marine VHF antenna and antenna cable.
- Correct MMSI programming for DSC use.
- NMEA 2000 network connection for Garmin chartplotter / MFD integration.
- NMEA 0183 wiring where required.
- Suitable mounting space for either bail mount or flush mount installation.
- Optional external GNSS antenna connection if the installation location limits internal GPS reception.
Fitment & System Compatibility Notice
Confirm the boat has the correct mounting space, power supply, VHF antenna, antenna cable route, NMEA 2000 / NMEA 0183 network plan, and MMSI setup before ordering. DSC safety features require proper MMSI programming and valid GPS position data, so the radio should be installed as part of a complete communication and safety system.
When This Unit Is a Good Upgrade
The VHF 115 is a good upgrade when replacing an older fixed-mount VHF, adding DSC safety functionality, or building a Garmin-integrated helm. It is a strong fit for boats that need a reliable standard VHF radio with built-in GPS and network compatibility, without stepping up to AIS or remote-handset models.
Installation Notes
Install using the supplied power cable, mounting hardware, protective cover, trim ring snap cover, and flush mount gasket. The VHF antenna, antenna cable condition, grounding, MMSI programming, GPS reception, and NMEA wiring should all be confirmed during installation.
Included Components
- VHF 115 marine radio
- Bail mount with knobs and mounting hardware
- Protective cover
- Trim ring snap cover
- Flush mount gasket
- Power cable
- Documentation
Alternate/Superseded Part Numbers
The active Garmin part number for this package is 010-02096-00. For clarity, this is the standard Garmin VHF 115 fixed-mount marine radio package and should not be confused with Garmin VHF models that include AIS or remote handset packages.
Parts Desk Insight
The key with the VHF 115 is confirming the customer needs a standard fixed-mount VHF with DSC and built-in GPS, not an AIS-equipped model. A clean antenna installation, proper MMSI setup, and valid GPS position data matter just as much as the radio itself.
