Garmin VHF 215 GAR 010-02097-00
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

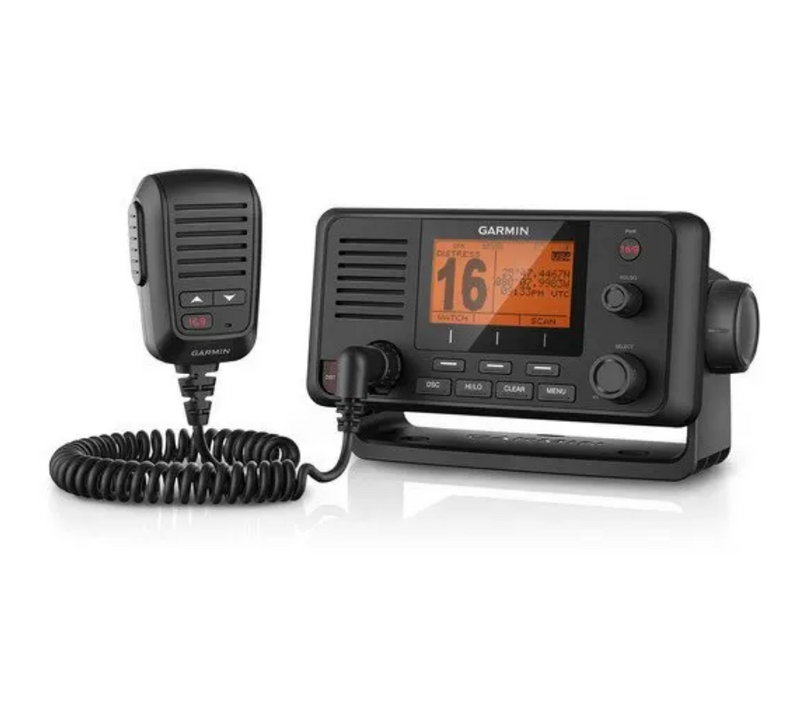

Garmin VHF 215 010-02097-00 is a 25-watt fixed-mount VHF marine radio with Class D DSC, built-in GPS, NMEA 2000 integration, NMEA 0183 support, NOAA weather channel access, and a removable fist microphone. It is built for reliable marine communication, emergency DSC calling, and clean integration with compatible Garmin chartplotters and multifunction displays.
Key Features
- Garmin part number 010-02097-00.
- 25-watt fixed-mount VHF marine radio.
- Class D Digital Selective Calling for distress calling and direct calling with programmed MMSI.
- Built-in GPS receiver for position support.
- Compatible with NMEA 2000 networks.
- Supports NMEA 0183 connectivity.
- Includes U.S., Canadian, and international marine channel support.
- Includes 10 NOAA weather channels.
- Compatible with optional GHS 11 second-station handset.
- Removable fist microphone can be relocated away from the main radio body.
- Supports optional foghorn and two-way hailer system setup.
- Water rating: IPX7.
- Approximate dimensions: 3.86" H x 7.76" W x 5.78" D.
- Approximate radio weight without microphone: 42.75 oz / 1.212 kg.
- Microphone weight: approximately 8.75 oz / 0.248 kg.
- Operating voltage: 12 Vdc.
- Standby current draw: approximately 350 mA.
- Receive current draw: approximately 600 mA.
- Transmit current draw: approximately 2.0–6.0 A, depending on transmit power.
- Antenna connector: SO-239, 50 ohms.
- Compass-safe distance: approximately 29.5" / 75 cm.
Marine Electronics Compatibility
The Garmin VHF 215 is selected by the boat's communication system, antenna setup, helm layout, power supply, GPS needs, and network wiring rather than by engine model. It is suited for boats that need a fixed-mount VHF radio with DSC safety functions and Garmin helm integration.
Compatible setup checks include:
- 12V marine electrical system.
- Proper marine VHF antenna and antenna cable.
- Correct MMSI programming for DSC use.
- NMEA 2000 network connection for Garmin system integration.
- NMEA 0183 wiring where required.
- Optional GHS 11 handset if a second station is needed.
- Optional hailer or foghorn speaker setup if using those features.
Fitment & System Compatibility Notice
Confirm the boat has the correct mounting space, power supply, antenna route, VHF antenna, network plan, and MMSI setup before ordering. DSC features require proper MMSI programming and valid GPS position data, so the radio should be installed as part of a complete communication and safety system.
When This Unit Is a Good Upgrade
The VHF 215 is a good upgrade when replacing an older fixed-mount VHF, adding DSC safety functionality, building a Garmin-integrated helm, or setting up a radio that can support a second station and optional hailer functions. It is a strong fit for boats that need a traditional helm-mounted VHF with reliable communication and network integration.
Installation Notes
Install using the supplied power cable, mounting hardware, removable fist mic, and selected mounting method. The VHF antenna, antenna cable condition, grounding, MMSI programming, GPS position source, and NMEA 2000 / NMEA 0183 wiring should all be confirmed during installation.
Included Components
- VHF 215 marine radio
- Removable fist microphone
- Fist mic mounting bracket and hardware
- Bail mount with knobs and mounting hardware
- Protective cover
- Trim ring snap cover
- Flush mount gasket
- Power cable
- Documentation
Alternate/Superseded Part Numbers
The active Garmin part number for this package is 010-02097-00. For clarity, this SKU corresponds to the Garmin VHF 215 fixed-mount marine radio package. Garmin's VHF 215 AIS package uses a separate part number, so AIS requirements should be confirmed before ordering.
Parts Desk Insight
The important check on this radio is whether the customer needs the standard VHF 215 or the separate VHF 215 AIS package. The model name is close, but the SKU matters most. Confirming the part number first helps avoid sending the wrong communication package for the helm.
