Garmin VHF 315 GAR 010-02047-00
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

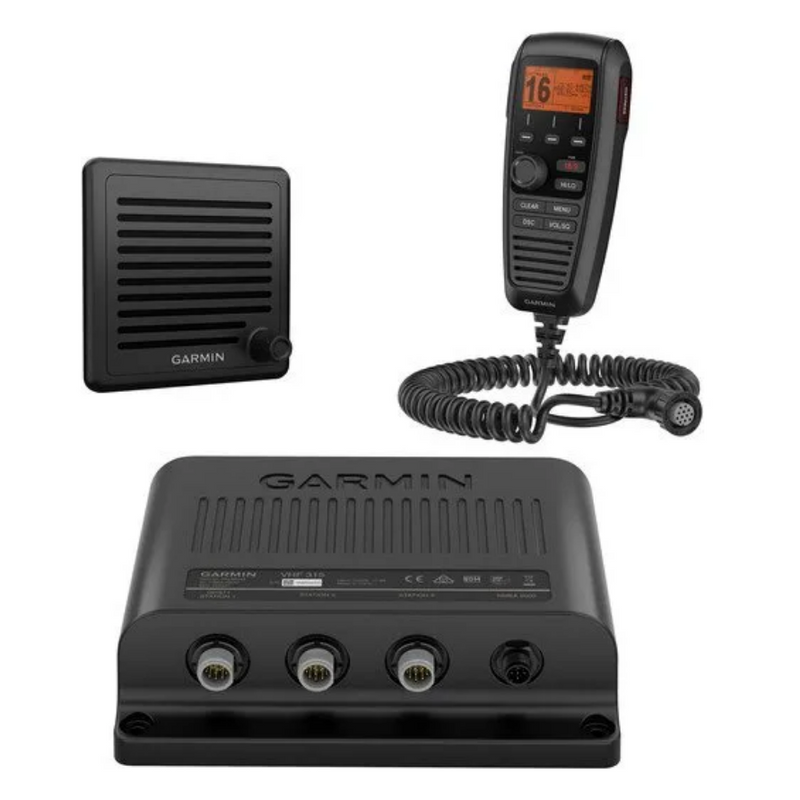

Garmin VHF 315 010-02047-00 is a modular 25-watt fixed-mount VHF marine radio with Class D DSC, built-in GPS receiver, NMEA 2000 integration, NMEA 0183 support, hailer capability, and a remote GHS 11 handset. It is designed for boats that need reliable VHF communication, weather-channel access, DSC safety features, and clean integration with compatible Garmin chartplotters and multifunction displays.
Key Features
- Garmin part number 010-02047-00.
- 25-watt fixed-mount VHF marine radio.
- Class D DSC support for marine safety communication.
- Includes GHS 11 remote handset for modular helm installation.
- Includes active speaker for clear audio at the helm.
- Built-in GPS receiver with external GPS antenna connection.
- Supports NMEA 2000 integration with compatible Garmin systems.
- Supports NMEA 0183 connectivity.
- Preprogrammed with U.S., Canadian, and international marine channels.
- Includes NOAA weather channel access.
- Supports two-way 30-watt hailer capability when connected to suitable equipment.
- Supports intercom use between compatible remote stations when properly configured.
- Water rating: IPX7.
- Operating voltage: 9.6–16 Vdc.
- Approximate radio dimensions: 8.1" x 7.1" x 2.4".
- Approximate radio weight: 3.4 lb / 1.53 kg.
Marine Electronics Compatibility
The Garmin VHF 315 is selected by the boat's communication setup, helm layout, GPS source, antenna system, and electronics network rather than by engine model. It is suited for installations that need a modular VHF radio with a remote handset, DSC safety functionality, Garmin system integration, and optional hailer/foghorn capability.
Compatible setup checks include:
- 12V marine electrical system within the listed operating voltage range.
- Proper marine VHF antenna installation.
- Correct MMSI programming for DSC use.
- NMEA 2000 network connection when integrating with compatible Garmin chartplotters or multifunction displays.
- NMEA 0183 wiring where required.
- External GPS antenna connection when needed.
- Optional hailer or foghorn speaker setup if using those features.
Fitment & System Compatibility Notice
Confirm the boat has the correct mounting space, power supply, antenna cable route, VHF antenna, NMEA 2000 / NMEA 0183 network plan, and GPS antenna setup before ordering. DSC functionality requires proper MMSI setup and valid GPS position data, so the radio should be installed as part of a complete communication and safety system.
When This Unit Is a Good Upgrade
The VHF 315 is a good upgrade when replacing an older fixed-mount VHF, building a Garmin-integrated helm, adding DSC safety functionality, or moving to a cleaner modular radio installation with a remote handset and active speaker. It is especially useful where the main radio module can be mounted out of the way while the handset and speaker remain at the helm.
Installation Notes
Install using the supplied power cable, deck cable, handset cradle, active speaker, microphone hanger, and mounting hardware. The VHF antenna, MMSI programming, GPS antenna connection, and network wiring should all be confirmed during installation so communication, DSC, and position-reporting functions operate correctly.
Included Components
- VHF 315 marine radio
- GHS 11 handset
- Cradle for GHS 11
- Active speaker
- Power cable
- 10 m deck cable
- Microphone hanger
- Mounting hardware
- Documentation
Alternate/Superseded Part Numbers
The active Garmin part number for this package is 010-02047-00. No replacement or superseding Garmin number is required for this listing.
Parts Desk Insight
The key with the VHF 315 is planning the full communication system, not just the radio module. Confirm the VHF antenna, GPS antenna requirement, MMSI setup, and NMEA network layout first so DSC, GPS position, and helm integration work properly.
