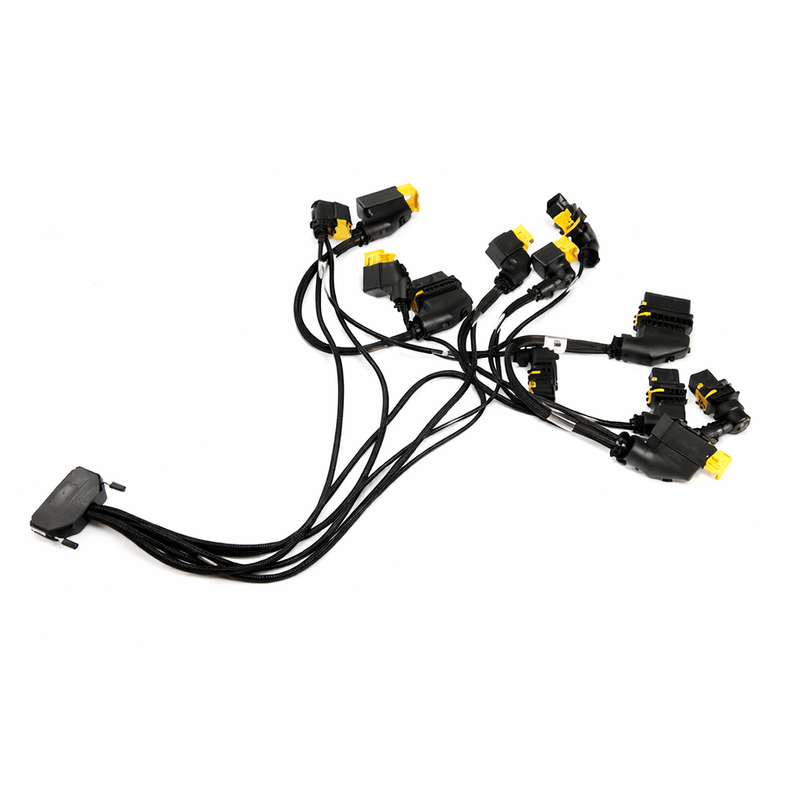

Volvo Penta Breakout Harness – 88890016
OEM Part Number: 88890016
Part Type: Engine Electrical Breakout Harness
Application: Diagnostic and engine wiring interface harness
Product Description
The Volvo Penta 88890016 breakout harness is a genuine OEM electrical harness designed for use with Volvo Penta marine engine control systems. This harness allows technicians to connect diagnostic equipment or service tools to the engine’s wiring system for troubleshooting, testing, and system integration.
Manufactured to Volvo Penta specifications, the breakout harness ensures secure electrical connections while preventing damage to the engine’s main wiring harness during diagnostics or service procedures. It is commonly used during engine service operations and electronic system testing on Volvo Penta engines equipped with electronic control systems.
Compatible Volvo Penta Engine Types
The 88890016 breakout harness is used with Volvo Penta engine electrical and diagnostic systems across several engine platforms, including:
Volvo Penta Gasoline Engines
-
Volvo Penta 4.3L V6 engines
-
Volvo Penta 5.0L V8 engines
-
Volvo Penta 5.7L V8 engines
-
Volvo Penta 8.1L V8 engines
Volvo Penta Diesel Engines
-
Volvo Penta D-Series marine diesel engines
-
Volvo Penta KAD Series
-
Volvo Penta TAMD Series
These engines are commonly found in Volvo Penta sterndrive and inboard marine applications. Compatibility may vary depending on the engine control system and wiring configuration.
How to Verify Compatibility Using Your Engine Serial Number
Volvo Penta engines include an identification plate that lists the engine model and serial number, which should always be checked before ordering electrical components.
Typical locations for the engine identification plate include:
-
On the engine block
-
On the valve cover
-
On the intake manifold or engine mounting bracket
To confirm compatibility:
-
Locate the engine model and serial number on the engine identification plate.
-
Check the Volvo Penta parts catalog for your specific engine serial number range.
-
Confirm that breakout harness 88890016 is listed for your engine’s wiring configuration.
Because wiring harness layouts may vary depending on engine revision, ECU type, and serial number range, verifying the serial number ensures the correct harness is used.
Specifications
| Specification | Details |
|---|---|
| Part Type | Breakout Harness |
| OEM Part Number | 88890016 |
| Application | Engine diagnostics / wiring interface |
| Manufacturer | Volvo Penta |
| Condition | Genuine OEM component |
Key Features
-
Genuine OEM replacement for Volvo Penta 88890016
-
Designed for Volvo Penta engine diagnostic systems
-
Enables safe connection of service and diagnostic tools
-
Prevents damage to the main engine wiring harness
-
Durable marine-grade electrical harness construction
-
OEM-fit component for Volvo Penta service applications
