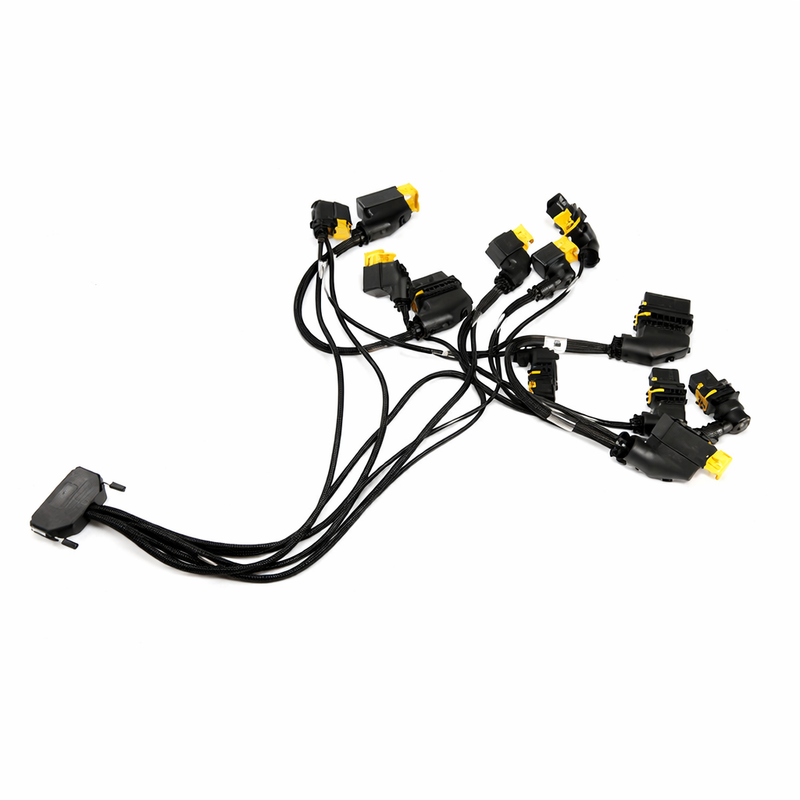

Volvo Penta Breakout Harness – 88890117
OEM Part Number: 88890117
Part Type: Engine Electrical Breakout Harness
Application: Diagnostic / electrical connection harness for engine systems
Product Description
The Volvo Penta 88890117 breakout harness is an OEM electrical harness designed to interface with Volvo Penta engine wiring systems. This harness allows technicians to access and connect diagnostic equipment or auxiliary electrical components to the engine’s main wiring system for troubleshooting, service, and system integration.
Manufactured as a genuine Volvo Penta OEM component, the breakout harness is designed to match the factory wiring configuration, ensuring proper electrical connectivity and safe diagnostics of engine management systems.
Because marine engine control systems rely on precise electrical signals, using the correct breakout harness helps prevent wiring damage while providing secure connections during engine diagnostics and maintenance.
Compatible Volvo Penta Engine Types
The 88890117 breakout harness is used with various Volvo Penta electronic engine management systems and diagnostic setups found on several marine engines, including:
Volvo Penta Gasoline Engines
-
Volvo Penta 4.3L V6 engines
-
Volvo Penta 5.0L V8 engines
-
Volvo Penta 5.7L V8 engines
Volvo Penta Diesel Engines
-
Volvo Penta D-Series marine diesel engines
-
Volvo Penta KAD Series
-
Volvo Penta TAMD Series
This harness is typically used during diagnostics, service procedures, or when connecting test equipment to engine wiring systems. Compatibility may vary depending on engine configuration and electronic control system.
How to Verify Compatibility Using Your Engine Serial Number
Volvo Penta engines include an identification plate listing the engine model and serial number, which should always be checked before ordering electrical components.
Typical locations for the engine identification plate include:
-
On the engine block
-
On the valve cover
-
On the engine mounting bracket or intake manifold
To confirm compatibility:
-
Locate the engine model and serial number on the engine data plate.
-
Refer to the Volvo Penta parts catalog for your specific serial number range.
-
Confirm that breakout harness 88890117 is listed for your engine wiring configuration.
Because electrical harness configurations may vary depending on engine revision, ECU type, and serial number range, verifying the serial number ensures the correct harness is used.
Specifications
| Specification | Details |
|---|---|
| Part Type | Breakout Harness |
| OEM Part Number | 88890117 |
| Application | Engine electrical diagnostics / wiring interface |
| Weight | ~0.42 lb |
| Construction | OEM marine electrical harness |
Key Features
-
Genuine OEM replacement for Volvo Penta 88890117
-
Designed for Volvo Penta engine electrical systems
-
Enables safe diagnostic and service connections
-
OEM-spec wiring connectors for reliable electrical communication
-
Durable marine-grade harness construction
-
Direct-fit component for Volvo Penta service applications
