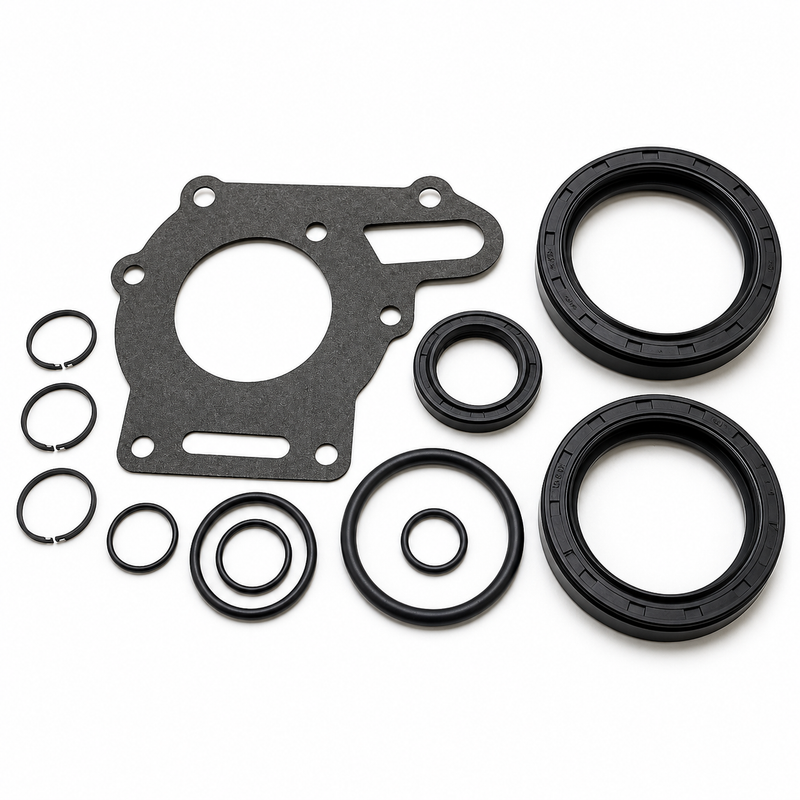

Hurth — Gasket & Seal Kit HBW360 — H-360
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Hurth H-360 Seal Kit is a marine transmission gasket and seal kit for Hurth / ZF HBW 360 mechanical marine gearboxes. This kit is used during resealing, leak repair, and gearbox overhaul work where the transmission casing, input shaft, output coupling, or selector shaft sealing areas require service. It is intended for HBW 360-family transmissions and supplies the soft sealing components required to help correct common marine gear oil leaks without including internal clutch plates, bearings, or hard mechanical rebuild components.
Key Features
- Product code: H-360
- Common reference: HBW360 Seal Kit
- Transmission family: Hurth / ZF HBW 360
- Kit function: Transmission gasket and seal reseal kit
- Service use: Leak repair, casing split service, and overhaul resealing
- Typical sealing areas: Input shaft, output shaft, selector shaft, and transmission housing joints
- Component type: Soft sealing parts only
- Friction parts not included: Does not include bronze clutch plates, steel plates, bearings, gears, shafts, or other internal hard parts
Transmission Compatibility
This seal kit is intended for compatible Hurth / ZF mechanical marine transmissions in the HBW 360 family, including:
- Hurth HBW 360
- Hurth HBW 360A
- Hurth HBW 360-2R
- Related early ZF 360-series housings where the parts breakdown calls for the same seal kit
Fitment should be confirmed against the transmission model tag, ratio plate, serial number, and parts diagram before installation.
Fitment Notice
HBW transmission seal kits are model-specific. Confirm the gearbox identification tag before ordering, including the exact model, ratio, output angle or offset configuration, and any ZF/Hurth supersession shown in the service parts catalog. This kit should not be treated as a general seal kit for later ZF 450, ZF 630, or unrelated ZF Marine transmission families unless the current parts diagram specifically calls for the H-360 / HBW360 kit.
When This Part Needs Replacement
Replace the transmission seals and gaskets when there is visible transmission-fluid weeping at the input shaft, output coupling, casing joint, shift selector shaft, or cover plate areas. This kit is also normally used during a gearbox casing split, reseal, or overhaul inspection, since old gaskets and shaft seals can harden, flatten, or lose sealing tension after years of heat, oil exposure, and vibration.
Common service signs include oil in the bilge near the gearbox, fluid staining around the output flange, seepage at the selector lever, declining oil level, or a persistent leak after cleaning and inspection.
Installation Notes
Before installation, clean all sealing surfaces and inspect the transmission housing, shaft surfaces, coupling area, selector shaft, and bearing locations for scoring, corrosion, wear grooves, or damage. Shaft seals should be installed squarely and protected from sharp edges during assembly.
If the transmission case is split, preserve any shim arrangement and follow the Hurth / ZF service procedure for bearing preload, gasket thickness, fastener sequence, and fluid specification. Replacing seals alone will not correct leaks caused by worn shafts, damaged bearings, loose couplings, excessive vibration, or blocked transmission venting.
Kit Contents Overview
Exact contents can vary by kit supplier, but H-360 / HBW360 seal kits are intended to cover the primary soft sealing points on the HBW 360 gearbox family. Typical reseal components may include:
- Input shaft oil seal
- Output shaft oil seal
- Shift control / selector shaft O-rings
- Casing split gaskets or sealing paper
- Cover or housing gaskets where applicable
Always compare the supplied kit contents with the gearbox parts diagram before disassembly.
Alternate/Superseded Part Numbers
- Primary kit reference: H-360
- Common description: HBW360 Seal Kit
- Transmission reference: Hurth HBW 360
- Related transmission references: HBW 360A, HBW 360-2R
- ZF / Hurth catalog reference: Verify by transmission model tag and current parts breakdown
Parts Desk Insight
The most important check with this kit is the gearbox tag, not the engine model. HBW 360 transmissions can appear behind many different diesel installations, and small differences in housing layout, output arrangement, and service history can affect which seals and gaskets are required. Confirm the exact Hurth/ZF model before ordering, especially if the transmission has been rebuilt or replaced in the past.
