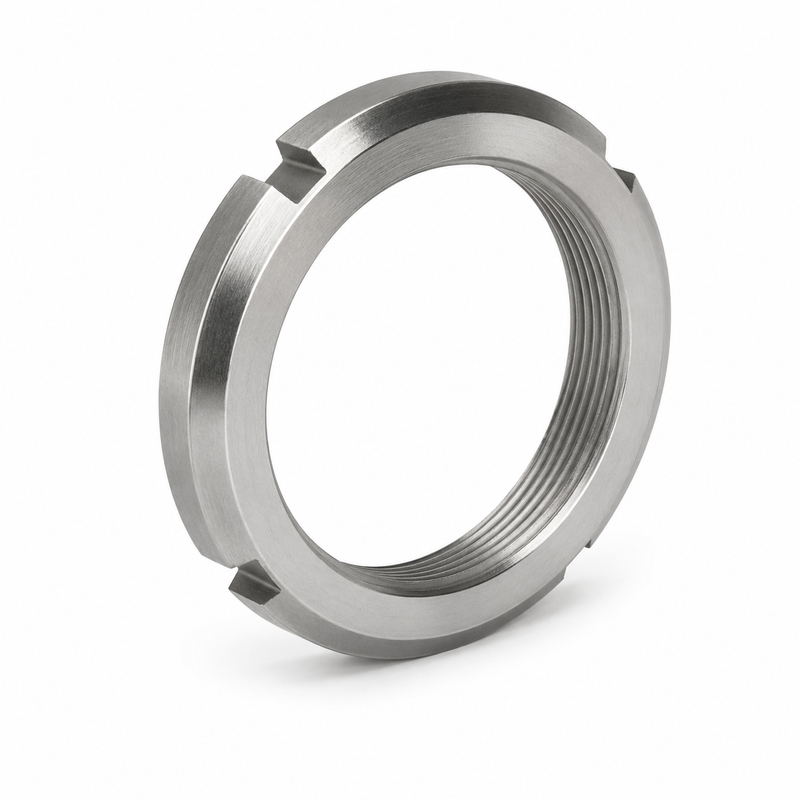

Bearing Locknut — N-06
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The N-06 Bearing Locknut is an imperial-threaded shaft locknut used to position and retain bearings, adapter sleeves, and rotating components in industrial power transmission assemblies. It is designed to help hold bearings, adapter sleeves, and rotating components in industrial power transmission assemblies. It is designed to help hold bearings securely on a shaft and prevent loosening caused by vibration, rotational force, and load cycling.
This locknut is designed to work with a matching W-06 multi-tang lockwasher. After the nut is tightened, one washer tang is bent into one of the locknut slots to create a positive mechanical lock.
Key Features
- Industry-standard slotted bearing locknut.
- Part number: N-06.
- Alternate typed formats: N06 and N 06.
- Imperial thread profile: 1.173 in. x 18 TPI.
- Four-slot outer rim for hook or impact spanner wrench use.
- Used for bearing retention, shaft positioning, and adapter sleeve assemblies.
- Designed to pair with a matching W-06 lockwasher.
- Suitable for industrial power transmission, rotating equipment, bearing housings, and machinery service where specified.
- Commonly used with compatible S-06 adapter sleeve assemblies where listed.
Technical Specifications
- Locknut type: threaded bearing / shaft locknut
- Part number: N-06
- Thread profile: 1.173 in. x 18 TPI
- Outer diameter: 1.750 in. / 1-3/4 in. / approximately 44.45 mm
- Face diameter: 1.500 in.
- Thickness / width: 0.416 in. / 13/32 in. / approximately 10.56 mm
- Slot count: 4 outer locking slots
- Required lockwasher: W-06 series
- Compatible adapter sleeve reference: S-06 where specified
- Standard reference: ANSI / ABMA-style industrial bearing locknut dimensions
Application Compatibility
Common application context includes bearing and shaft assemblies where N-06, N06, N 06, or an approved equivalent is specified, including:
- Industrial bearing retention assemblies.
- S-06 adapter sleeve installations.
- Gearbox and rotating shaft equipment.
- Pump, motor, fan, and machinery bearing locations.
- Power transmission shaft assemblies.
- Shaft-mounted component retention where a slotted locknut and tang washer system is required.
Use this locknut only where the shaft thread, lockwasher size, bearing arrangement, adapter sleeve, and equipment service manual confirm N-06 compatibility.
Fitment Notice
Confirm thread size, shaft diameter, adapter sleeve series, lockwasher series, bearing arrangement, keyway requirement, and spanner tool clearance before ordering. Bearing locknuts are dimension-specific and should not be selected by outside diameter alone.
This nut requires the matching W-06 lockwasher and a shaft or adapter sleeve arrangement designed for the washer’s internal tang. Without the correct lockwasher and keyway setup, the nut cannot be mechanically locked in place.
When This Part Needs Replacement
Replace the locknut if the threads are worn, galled, stretched, cross-threaded, corroded, cracked, rounded, or if the locking slots are damaged. Replacement is also recommended during bearing service if the nut no longer tightens smoothly or if the lockwasher tang cannot seat securely into the nut slot.
A worn or incorrectly matched locknut can allow bearing movement, shaft misalignment, vibration, heat buildup, or premature bearing failure.
Installation Notes
Clean the shaft threads, bearing seat, lockwasher area, and adapter sleeve before installation. Thread the nut on by hand first to confirm proper engagement, then tighten with the correct hook spanner, impact spanner, or approved bearing service tool according to the equipment manufacturer’s bearing setting procedure.
Install the matching W-06 lockwasher in the correct orientation. After final adjustment, bend one washer tang firmly into one of the four locknut slots. Do not reuse a lockwasher tang that has been repeatedly bent or no longer holds securely.
Alternate / Cross-Reference Part Numbers
- N-06 — primary locknut reference
- N06 — alternate typed format
- N 06 — alternate spacing format
- SKF N 06 — cross-reference reference; verify dimensions
- Timken N06 — cross-reference reference; verify dimensions
- Timken TN06 — cross-reference reference; verify dimensions
- NTN N06 — cross-reference reference; verify dimensions
- FAG N06 — cross-reference reference; verify dimensions
- W-06 — matching lockwasher reference
- S-06 — related adapter sleeve reference; verify bearing and shaft assembly
Parts Desk Insight
The critical checks are the 1.173 in. x 18 TPI thread, the matching W-06 lockwasher, and the shaft or sleeve keyway needed for the washer tang. The locknut supplies the bearing retention force, while the lockwsher provides the mechanical anti-rotation lock.
