WIX WL10069 Premium Marine Oil Filter
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

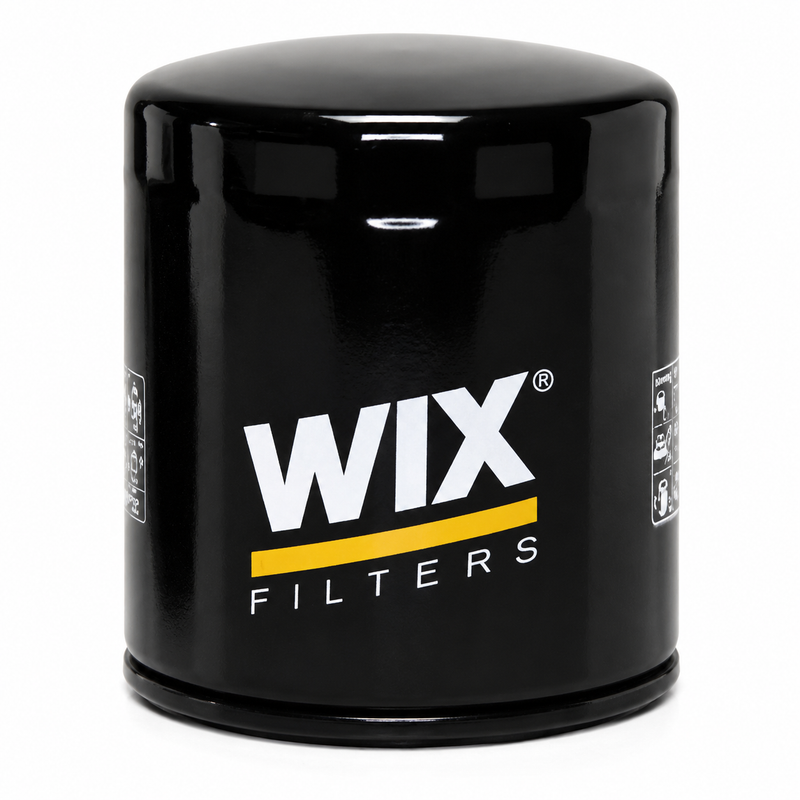

The WIX WL10069 Premium Marine Oil Filter is a compact spin-on oil filter designed for compatible Mercury and MerCruiser 4-stroke marine engine applications. Built for demanding marine service, it features a heavy-gauge canister, anti-drainback protection, internal bypass protection, and high-capacity pleated filtration media to help protect engine oil systems from fine debris, soot, and metallic wear particles.
This filter is commonly used where the engine service information, existing filter, or cross-reference chart calls for WIX WL10069 or a verified equivalent.
Key Features
- WIX premium marine spin-on oil filter.
- Part number: WL10069.
- Thread size: M22 x 1.5 mm.
- Compact height: approximately 3.10 in.
- Outside diameter: approximately 3.66 in.
- Bypass valve setting reference: 8–11 PSI.
- Anti-drainback valve helps keep oil in the filter during shutdown.
- Bypass relief valve helps maintain oil flow if the filter becomes restricted.
- High-capacity pleated cellulose filter media.
- Heavy-gauge casing built for marine vibration and harsh operating environments.
- Designed for compatible Mercury / MerCruiser 4-stroke outboard and sterndrive applications where listed.
Engine Compatibility
Common application context includes compatible Mercury and MerCruiser marine engines where this M22 x 1.5 mm spin-on oil filter and cross-reference group are specified, including:
- Mercury 4-stroke outboard applications where listed.
- MerCruiser 4-stroke marine engine applications where listed.
- Sterndrive and marine power packages using a compatible M22 x 1.5 mm filter mount.
- Applications calling for Mercury / MerCruiser 35-877761K01, 35-877761Q01, 877761K01, or 877761Q01.
- Applications calling for Sierra Marine 18-7758 or NAPA Gold 400069 where verified.
Use this filter only where the engine model, serial number, thread size, gasket seat, canister clearance, and service manual confirm compatibility.
Serial Number Fitment Notice
Confirm fitment by engine model, serial number, existing oil filter number, thread size, gasket diameter, bypass requirement, and available clearance before ordering. Marine oil filters can look similar but may differ in thread, gasket seat, canister height, bypass-valve setting, and internal construction.
When replacing an oil filter, match against the filter being removed or verify through the engine manufacturer's parts lookup.
When This Part Needs Replacement
Replace the oil filter at every scheduled oil change, during seasonal service, after oil contamination, after extended storage, or whenever the canister is rusted, dented, leaking, damaged, or past the recommended service interval.
Replacement is also recommended after overheating, water-contaminated oil, major engine service, or when changing oil type.
Installation Notes
Warm the engine briefly, shut it down, and drain the oil according to the service procedure. Remove the old filter and confirm the old gasket did not remain stuck to the filter mount. Clean the sealing surface before installing the new filter.
Lightly oil the new gasket with clean engine oil, spin the filter on by hand, and tighten according to the engine or filter instructions. Do not over-tighten. Refill with the correct marine engine oil, run the engine, verify oil pressure, inspect for leaks, and recheck the oil level after shutdown.
Alternate / Cross-Reference Part Numbers
- WIX WL10069 — primary part number
- Mercury / MerCruiser 35-877761K01 — cross-reference reference; verify by engine serial number
- Mercury / MerCruiser 35-877761Q01 — cross-reference reference; verify by engine serial number
- Mercury / MerCruiser 877761K01 — cross-reference reference; verify by engine serial number
- Mercury / MerCruiser 877761Q01 — cross-reference reference; verify by engine serial number
- NAPA Gold 400069 — cross-reference reference; verify by application
- Sierra Marine 18-7758 — cross-reference reference; verify by application
Parts Desk Insight
The most important checks on this filter are the M22 x 1.5 mm thread, gasket fit, canister clearance, and bypass-valve requirement. A correct oil filter must seal properly, maintain oil flow, and match the engine's service specification. For marine engines, corrosion resistance and anti-drainback protection are especially important during seasonal use and long storage periods.
