Evolution Autopilot. Engineered for Sail.

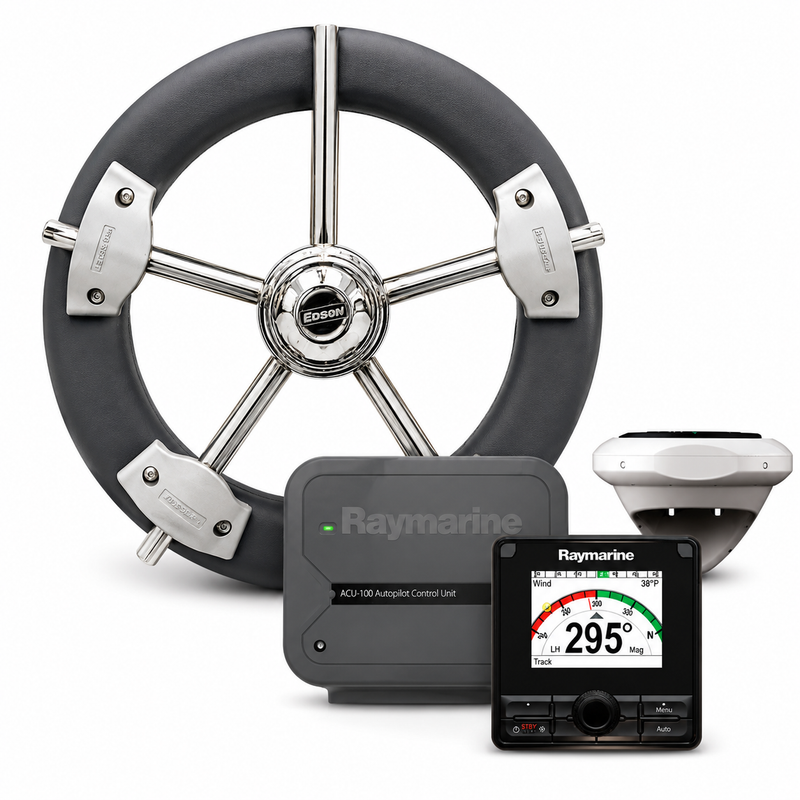

The Raymarine EV-100 Cockpit Autopilot — Sail is a complete, sail-specific autopilot system built around Raymarine’s Evolution platform — the same technology trusted by bluewater cruisers and performance sailors worldwide. Designed for sailboats with wheel steering, this package includes every component needed for a full installation: sensor core, actuator control unit, sail-optimized control head, wheel drive, and a complete SeaTalkⁿ cabling kit.
The EV-1 sensor core’s nine-axis motion sensing continuously adapts to changing wind, sea state, and vessel behavior — delivering the kind of smooth, intelligent course keeping that reduces helm fatigue on long passages and lets you focus on sail trim, not steering.
What’s Included
- EV-1 Sensor Core — 9-axis motion sensor; SeaTalkⁿ single-cable connection for power and data
- ACU-100 Actuator Control Unit — Fully sealed; compatible with wheel-drive and tiller-drive applications; mountable above or below decks
- p70s Autopilot Control Head (Sail) — Push-button sail controller with LightHouse UI, startup wizard, advanced LED backlighting, and wide viewing angles
- Wheel Drive Unit — Fully enclosed; fits most wheel types; simple clutch engagement; max displacement 7,500 kg (16,500 lb); 30Nm thrust; 9 RPM
- Evolution Cabling Kit — Includes SeaTalkⁿ power cable (0.4m), backbone cable (5m), spur cable (0.4m), 5-way connector block, 2x T-piece connectors, 2x terminators
Key Features
- Evolution EV-1 Sensor Core — Nine-axis sensor measures heading, pitch, roll, and yaw for adaptive, sea-state-aware course keeping
- Sail-Optimized p70s Control Head — Designed specifically for sailboat operation with wind-vane mode support and LightHouse interface
- Wheel Drive for Most Wheel Types — Quick-fit, fully enclosed drive unit with simple clutch; rated to 7,500 kg displacement
- Fully Sealed ACU-100 — Above or below-deck mounting flexibility for clean, space-efficient installations
- SeaTalkⁿ & NMEA 2000 Compatible — Single-cable networking integrates with Raymarine MFDs, chartplotters, and third-party instruments
- Complete Cabling Kit Included — All SeaTalkⁿ network components included; no additional cabling purchase required for a standard installation
- LightHouse User Interface — Consistent UI across Raymarine products; startup wizard simplifies commissioning
- Advanced LED Backlighting — Low power consumption with vibrant display; wide horizontal and vertical viewing angles for cockpit readability
Specifications
- Brand: Raymarine
- Model: EV-100 Cockpit — Sail
- Part Number: T70152
- Application: Sailboat, wheel steering
- Max Vessel Displacement: 7,500 kg (16,500 lb)
- Wheel Drive Thrust: 30Nm
- Wheel Drive RPM: 9
- Network: SeaTalkⁿ, NMEA 2000
- Weight: 10.43 kg (23.0 lb)
Whether you’re crossing an ocean or day-sailing the coast, the Raymarine EV-100 Cockpit Sail system gives you the freedom to let the boat steer itself — accurately, smoothly, and reliably — so you can sail, not just survive the passage.
⚓ Parts Desk Insight
- Sail vs. Power variant — the control head is the key difference: The Sail version includes the p70s control head with wind-vane (apparent wind) mode, which is essential for efficient upwind and downwind sailing. The Power version uses the P70R rotary head without wind-vane functionality. Confirm the customer’s vessel type before ordering.
- Displacement rating matters: The included wheel drive is rated to 7,500 kg (16,500 lb) maximum laden displacement. Customers with heavier vessels should verify their boat’s displacement before purchasing — a higher-rated drive unit may be required.
- SeaTalkⁿ integration unlocks GPS route following: When connected to a Raymarine chartplotter or MFD via SeaTalkⁿ, the EV-100 can follow waypoints and routes automatically. In standalone mode, it operates as a heading-hold pilot only.
- Professional installation is strongly recommended: Autopilot commissioning on a sailboat involves drive unit alignment, dockside and sea-trial calibration, and network configuration. A certified Raymarine installer will ensure the system is tuned correctly for the vessel’s steering characteristics.
