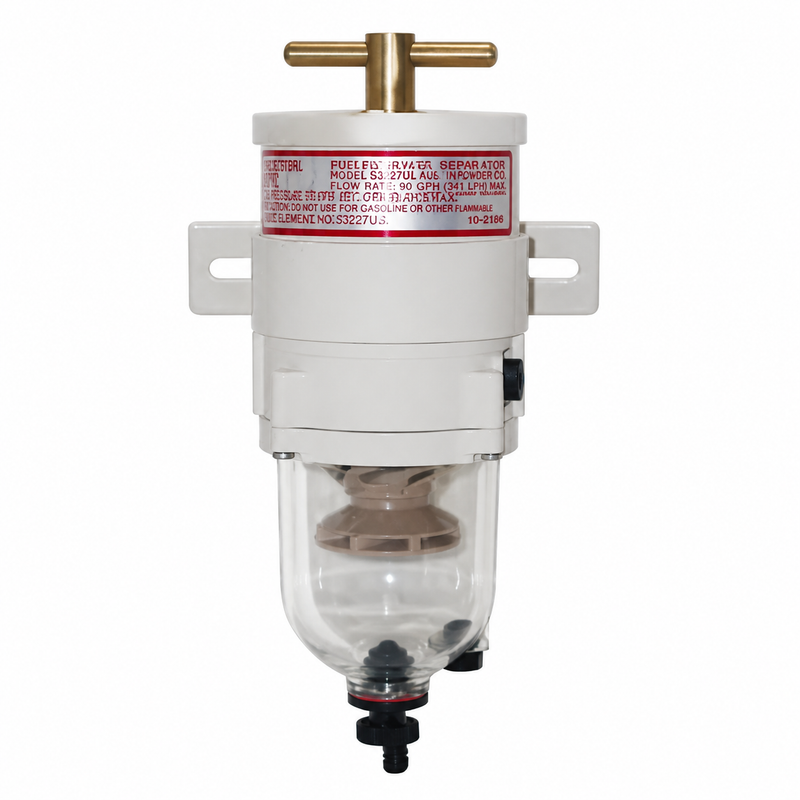

The Parker Racor 500FG10 Turbine Series Fuel Filter Water Separator is a complete heavy-duty fuel filtration assembly designed for compatible diesel marine and industrial engine fuel systems. It uses Racor’s turbine-style separation design with a 10-micron Aquabloc® replacement element to help remove water, rust, dirt, algae, and fine particulate contamination before fuel reaches the engine injection system.
This assembly is commonly used as a primary or secondary fuel/water separator where the engine, fuel system, and flow requirement call for a Racor 500FG10, RAC-500FG-10, or verified equivalent.
Key Features
- Parker Racor Turbine Series fuel filter water separator assembly.
- Part number: 500FG10.
- Common catalog format: RAC-500FG-10.
- Designed for compatible diesel fuel systems.
- Supplied with a 10-micron Aquabloc® filter element.
- Replacement element reference: 2010TM-OR.
- Maximum flow reference: 60 GPH / 227 LPH.
- Three-stage separation process helps remove water and particulate contamination.
- Transparent collection bowl allows water and debris inspection.
- Self-venting drain valve supports routine water removal.
- Top-loading element design simplifies service.
- Helps protect injection pumps, injectors, and precision diesel fuel-system components.
Technical Specifications
- Assembly type: turbine-style fuel filter / water separator
- Part number: 500FG10
- Alternate format: RAC-500FG-10
- Fuel type: diesel
- Filtration rating: 10 micron
- Filter media: Aquabloc® water-repelling media
- Replacement element: 2010TM-OR
- Maximum flow rate: 60 GPH / 227 LPH
- Port size: 3/4 in.-16 UNF / SAE J1926 reference
- Bowl style: clear collection bowl with drain
- Overhead service clearance: approximately 5.0 in.
- Drain clearance: approximately 2.0 in.
Fuel System Compatibility
Common application context includes compatible diesel fuel systems used on:
- Marine diesel engines.
- Small commercial vessel engines.
- Inboard diesel propulsion systems.
- Diesel generator and auxiliary engine packages.
- Industrial diesel equipment.
- Fuel systems requiring a Racor 500 Series turbine-style separator.
- Applications requiring a 10-micron Racor 2010-series replacement element.
Use this assembly only where the engine fuel-flow requirement, fuel type, mounting space, port size, hose/fitting layout, and service access match the installation.
Fitment Notice
Confirm fitment by engine model, fuel type, required flow rate, fuel line size, port adapter requirement, mounting location, service clearance, and whether the system requires primary or secondary filtration. The 500FG10 is a complete filter/separator assembly, not just a replacement element.
For gasoline installations, confirm the correct Racor model and bowl type before ordering. Clear collection bowls are commonly used in diesel applications, while gasoline systems may require different approved components depending on installation regulations and engine setup.
When This Product Needs Replacement or Service
Service the filter element when fuel flow is restricted, engine power drops, water or contamination is visible in the bowl, the engine shows signs of fuel starvation, or the filter reaches its scheduled maintenance interval. Drain collected water from the bowl as part of routine fuel-system inspection.
Replace the assembly if the housing, lid, ports, bowl, drain, or sealing surfaces are cracked, corroded, damaged, leaking, or no longer able to seal properly.
Installation Notes
Mount the assembly upright in an accessible location with enough clearance above the lid for element replacement and enough clearance below the bowl for draining water. Use proper fuel-rated fittings, fuel hose, and thread sealing practices suitable for the fuel system.
After installation, prime the filter assembly, check all fittings for leaks, and run the engine while monitoring for air leaks, restriction, or fuel seepage. Inspect the clear bowl regularly and drain water before it can reach the engine.
Replacement Parts
- Parker Racor 500FG10 — complete filter / water separator assembly
- RAC-500FG-10 — common catalog format
- Racor 2010TM-OR — 10-micron Aquabloc® replacement element
- Racor 500 Series bowl and seal components — verify by exact assembly before ordering
- 3/4 in.-16 UNF / SAE J1926 fittings — verify fuel-line size and installation layout
Parts Desk Insight
The 500FG10 is a complete Racor turbine-style separator, so the key checks are fuel type, flow rate, port fittings, service clearance, and correct replacement element. The clear bowl makes water and debris easy to inspect, but it still needs regular draining and element service. A clean fuel supply is one of the best ways to protect diesel injectors and injection pumps from expensive damage.
