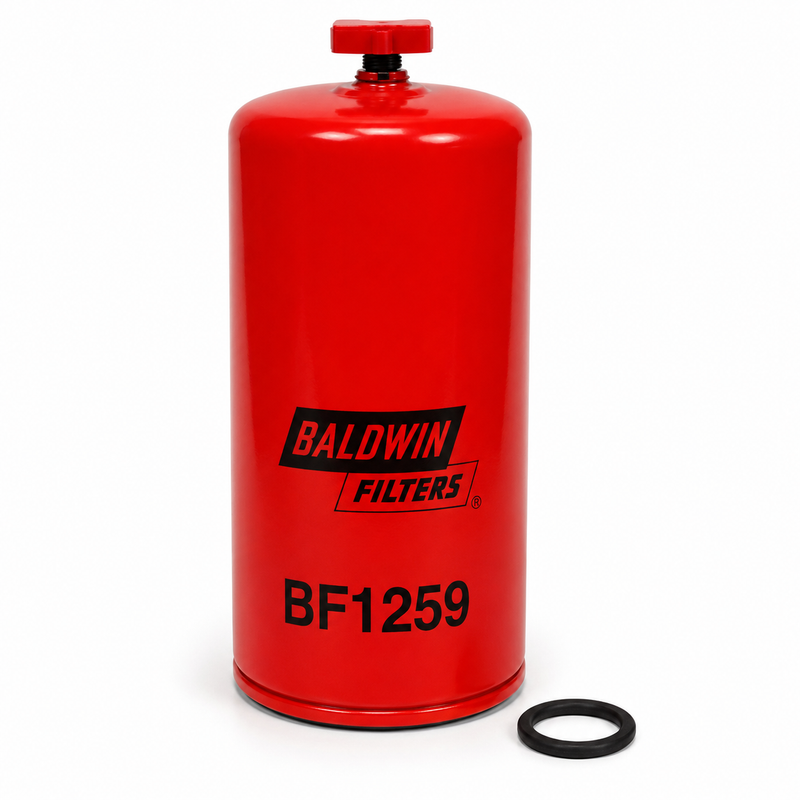

Baldwin — Fuel/Water Separator Filter — BF1259

The Baldwin BF1259 Fuel/Water Separator Filter is a heavy-duty spin-on diesel fuel filter designed to remove water and fine contamination before fuel reaches sensitive injection-system components. It is commonly used on commercial trucks, agricultural tractors, industrial diesel equipment, and heavy-duty machinery where the fuel system calls for Baldwin BF1259 or a verified equivalent.

This filter includes an integrated twist-drain for water service and is built for primary fuel/water separator applications where proper water removal, clean fuel delivery, and fuel system protection are critical.

Key Features

• Baldwin heavy-duty spin-on fuel/water separator filter.
• Part number: BF1259.
• Filtration reference: 10 micron absolute.
• Integrated twist-drain for water removal.
• Designed for diesel fuel systems.
• Helps remove water, dirt, rust, and fine abrasive fuel contamination.
• Internal standpipe supports correct fuel flow direction and air management.
• Thread size reference: 1 in.-14.
• Includes sealing components where supplied.
• Built for heavy-duty truck, agricultural, industrial, and equipment service.

Technical Specifications

• Filter type: spin-on fuel/water separator
• Part number: BF1259
• Filtration rating: 10 micron absolute reference
• Media type: cellulose
• Thread size: 1 in.-14
• Overall length: 9-17/32 in. / 242.1 mm
• Outside diameter: 3-11/16 in. / 93.7 mm
• Drain style: integrated twist-drain
• Internal design feature: standpipe
• Included gasket references: ES24-D furnished gasket and integral G381-A gasket
• Important seal note: supplied D-ring must be installed on the mounting post where required by the filter base

Application Compatibility

Common application context includes heavy-duty diesel fuel systems where BF1259 or a verified equivalent is specified, including:

• Caterpillar diesel engine applications where listed.
• Cummins diesel engine applications, including Celect-era fuel system applications where listed.
• Kenworth commercial truck applications where listed.
• Sterling commercial truck applications where listed.
• Volvo heavy-duty truck applications where listed.
• Versatile agricultural tractor applications where listed.
• Euclid rear dump truck applications where listed.
• Industrial diesel equipment using compatible remote or engine-mounted filter bases.

Use this filter only where the engine, equipment model, filter base, thread size, gasket layout, and parts lookup confirm BF1259 or an approved cross-reference.

Fitment Notice

Confirm fitment by engine model, equipment model, serial number, existing filter number, mounting base, thread size, gasket seat, drain clearance, and fuel-system layout before ordering. Spin-on fuel/water separators can look similar but may differ in height, seal design, standpipe requirement, drain style, and internal flow path.

The D-ring and supplied gaskets must be installed in the correct locations. Incorrect gasket placement can cause air leaks, fuel restriction, loss of prime, or unfiltered fuel bypass.

When This Part Needs Replacement

Replace the filter at the manufacturer’s recommended service interval, when water is present in the separator, after contaminated fuel exposure, during scheduled fleet maintenance, or when the engine shows signs of fuel restriction such as hard starting, low power, rough running, hesitation, smoke, or stalling under load.

Replacement is also recommended if the canister is dented, rusted, leaking, clogged, damaged, or if the drain valve does not seal properly.

Installation Notes

Shut the engine down safely and close the fuel supply if equipped. Clean the filter head and surrounding area before removing the old filter. Confirm that the old gasket is removed from the mounting base and inspect the mounting post for the required D-ring location.

Install the supplied D-ring and gaskets as required, lubricate the sealing surfaces with clean diesel fuel or clean engine oil where specified, and spin the new filter on by hand. Do not over-tighten. Prime the fuel system, drain any trapped water as needed, start the engine, and inspect carefully for leaks or air intrusion.

Alternate / Cross-Reference Part Numbers

• Baldwin BF1259 — primary part number
• Fleetguard FS1000 — cross-reference reference; verify by application
• Cummins 3329289 — cross-reference reference; verify by application
• Wix 33406 — cross-reference reference; verify by application
• NAPA Gold 3406 — cross-reference reference; verify by application
• Caterpillar 256-8753 — cross-reference reference; verify by application

Related Service Parts

• Baldwin FB1311 — compatible remote mounting base reference where specified by system layout
• Replacement fuel filter base seals — verify by filter head and application
• Diesel-rated fuel fittings and hose — verify by fuel system pressure, thread, and routing

Parts Desk Insight

This filter is a primary fuel/water separator, so correct sealing is just as important as filtration. The supplied D-ring must be installed where the filter base requires it, or the system may draw air and cause hard starts, power loss, or loss of prime. When servicing a contaminated fuel system, drain water regularly and consider replacing both primary and secondary fuel filters together.
