Jabsco 6-Hole Pump End Cover Plate - JAB-11831-0000
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

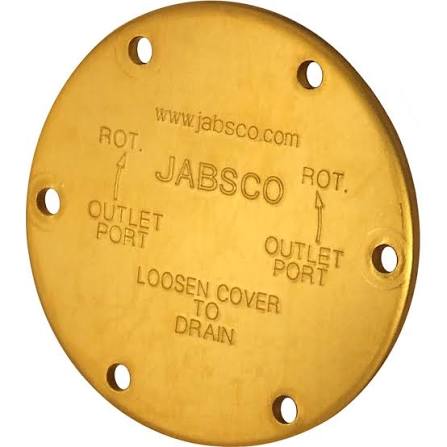

The Jabsco 11831-0000 Pump End Cover Plate is a replacement end cover for compatible Jabsco flexible impeller engine-cooling pumps. This 6-hole cover plate is used on select Jabsco 1" raw-water cooling pumps and helps close the impeller chamber so the pump can maintain proper suction and water flow through the marine engine cooling circuit. It is commonly replaced during pump service when the original cover plate is worn, grooved, corroded, or leaking.
Key Features
- Jabsco part number: 11831-0000
- Marisol / product code: JAB-11831-0000
- Product type: Flexible impeller pump end cover plate
- Cover pattern: 6 connection holes
- Pump application: Select Jabsco 1" flexible impeller cooling pumps
- System: Marine engine raw-water cooling
- Service use: Pump cover replacement, impeller service, leak repair, and cooling-flow restoration
- Related reference: USA-version cover associated with Jabsco 3993-style applications where confirmed by pump model
Pump Compatibility
This end cover plate is intended for compatible Jabsco 1" flexible impeller engine-cooling pumps that use the matching 6-hole cover pattern.
Fitment should be confirmed by the pump model number, existing cover plate pattern, screw count, impeller size, port size, and Jabsco parts diagram before ordering. Do not select this cover by hose size alone.
Fitment Notice
Confirm that the existing pump uses a 6-hole cover plate and that the screw pattern, cover diameter, and impeller chamber match the 11831-0000 plate. Jabsco flexible impeller pumps can look similar while using different covers, gaskets, impellers, cams, and wear plates.
If the old cover is available, compare the hole layout and sealing face before installation.
When This Part Needs Replacement
Replace the end cover plate if it is grooved, scored, pitted, warped, cracked, corroded, or leaking around the cover gasket. A worn cover plate can reduce pump efficiency by allowing water to bypass around the impeller face, which may contribute to weak raw-water flow, overheating, or poor pump priming.
It should also be inspected during every impeller service, especially if the impeller failed, ran dry, or shed vanes.
Installation Notes
Remove the old cover and inspect the impeller, gasket, screws, cam, pump body, shaft seal area, and wear surfaces before reassembly. Clean the cover sealing surface and remove old gasket material without scratching the pump body.
Install with the correct gasket or sealing arrangement for the pump model. Tighten the cover screws evenly so the plate seats flat against the pump body. After service, run the engine with proper water supply and confirm strong raw-water flow, no cover leakage, and normal engine temperature.
Alternate/Superseded Part Numbers
- Jabsco: 11831-0000
- Marisol / product code: JAB-11831-0000
- Related Jabsco reference: 3993-style USA version, confirm by pump model before substitution
- Common description: Jabsco 6-Hole Pump End Cover Plate for 1" Flexible Impeller Pumps
ā Parts Desk Insight
On a flexible impeller pump, the end cover is part of the pumping surface. If the plate is deeply grooved, a new impeller may still underperform because water can slip past the impeller face. During impeller service, inspect the cover plate closely and replace it if the surface is worn or uneven.
