PCM / Crusader FCC Fuel Filter Element R080033
Product Description

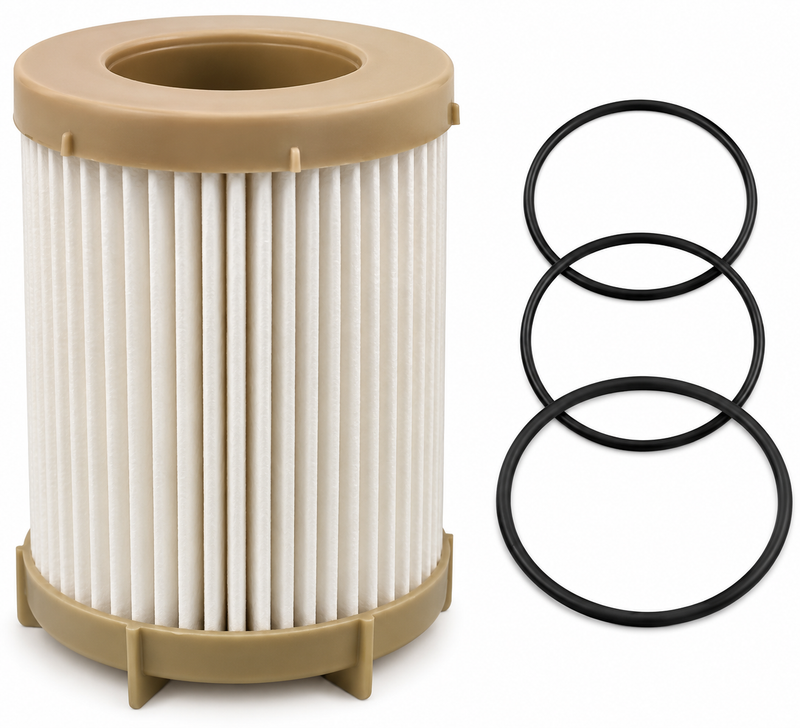

The PCM / Crusader R080033 Fuel Filter Element is a genuine-style primary fuel filter service element for compatible Pleasurecraft Marine and Crusader gasoline marine engines equipped with frame-mounted Fuel Control Cell / FCC fuel systems. It is designed to help protect high-pressure MPI fuel system components by filtering fine contamination before fuel reaches the injectors.
This filter is commonly used on late-model PCM and Crusader multi-port fuel injected marine engines where the engine serial number, fuel system layout, and parts manual confirm R080033.
Key Features
-
PCM / Crusader primary fuel filter element.
-
Part number: R080033.
-
Alternate catalog format: r08033.
-
Designed for compatible Fuel Control Cell / FCC systems.
-
Spin-on fuel filter element style.
-
Filtration reference: 10 micron.
-
Built for marine gasoline fuel injection systems.
-
Helps protect injectors, fuel pumps, and high-pressure fuel delivery components.
-
Suitable for ethanol-blended marine gasoline where specified.
-
Typically supplied with replacement sealing O-rings for FCC service.
-
Used in compatible late-model PCM and Crusader MPI inboard applications.
Fuel System Compatibility
Common application context includes compatible PCM and Crusader marine gasoline engines equipped with frame-mounted FCC fuel systems, including:
-
PCM Excalibur 330 applications where listed.
-
PCM EX343 applications where listed.
-
PCM ZR409 applications where listed.
-
PCM ZR6 applications where listed.
-
Crusader late-model MPI V8 applications where listed.
-
Correct Craft / Nautique installations using compatible PCM FCC fuel systems where specified.
Use this filter only where the engine model, serial number, fuel system layout, and service manual confirm R080033.
Fitment Notice
Confirm fitment by engine model, serial number, FCC canister style, existing filter number, and fuel system configuration before ordering. PCM and Crusader engines may use different fuel filters depending on model year, engine family, injection system, and FCC layout.
This filter is for compatible FCC-style fuel systems. It should not be substituted for other PCM / Crusader inline, returnless, or non-FCC fuel filter elements unless the parts lookup confirms interchange.
When This Part Needs Replacement
Replace the fuel filter during scheduled fuel system maintenance, when servicing the FCC canister, after contaminated fuel exposure, after long storage, or when the engine shows signs of fuel restriction such as hard starting, hesitation, rough idle, surging, loss of power, or stalling under load.
Replacement is also recommended any time the FCC canister is opened and the filter or sealing O-rings show swelling, cracking, flattening, fuel hardening, or visible contamination.
Installation Notes
Relieve fuel system pressure before service and work in a well-ventilated area away from sparks, flame, and hot surfaces. Open the FCC system according to the PCM or Crusader service procedure, remove the old filter, and discard the old O-rings.
Clean the sealing surfaces before installation. Install the new filter and supplied O-rings in the correct positions, then reassemble the housing carefully. Prime the fuel system as required, check for leaks, and run the engine while inspecting the FCC area and fuel connections.
Alternate / Cross-Reference Part Numbers
-
PCM / Crusader R080033 — primary part number
-
r08033 — alternate catalog format
-
R080033 FCC Fuel Filter — application reference
-
PCM FCC fuel filter element — verify by engine serial number
-
Crusader FCC fuel filter element — verify by engine serial number
Parts Desk Insight
The important fitment check is the FCC system layout. PCM and Crusader engines can use different filter elements depending on engine family and production range, so match R080033 by engine serial number and the filter being removed. Always replace the sealing O-rings during service to help prevent fuel leaks, air intrusion, and loss of fuel pressure.
