Shakespeare Galaxy 14ft 8dB VHF Antenna 2-Piece SHA-5230
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

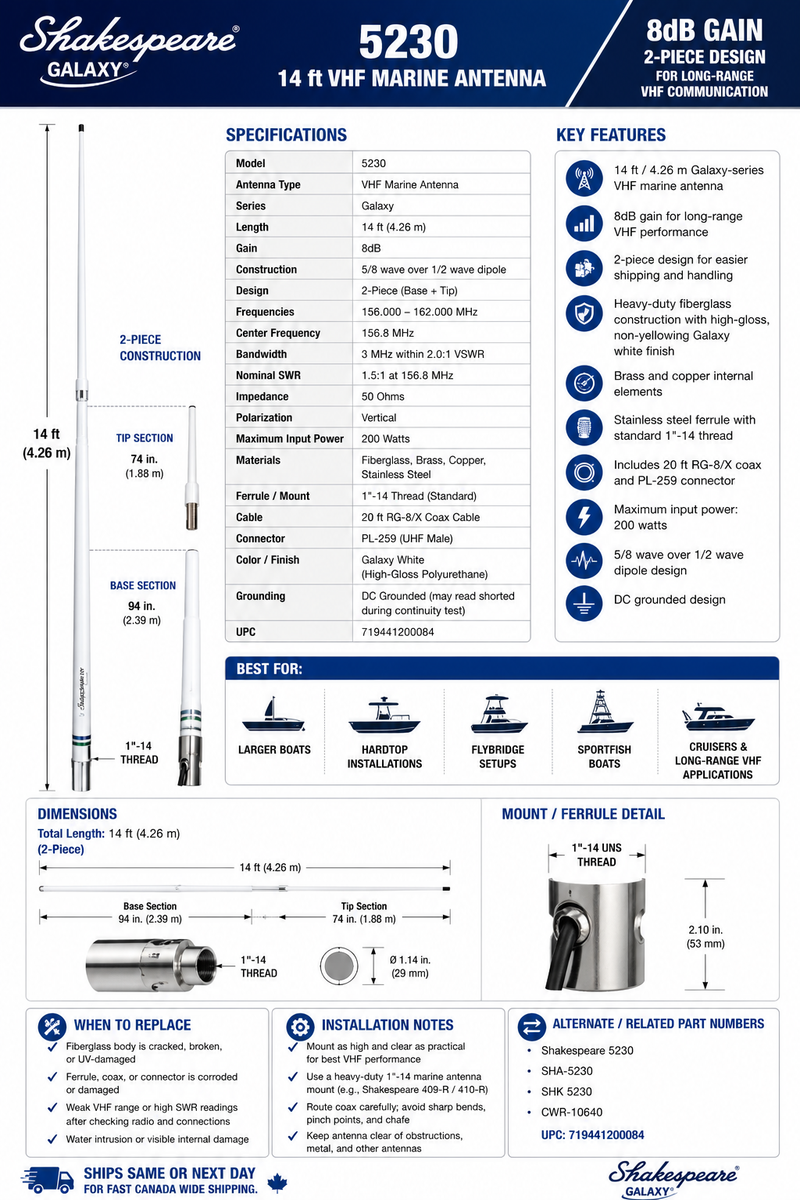

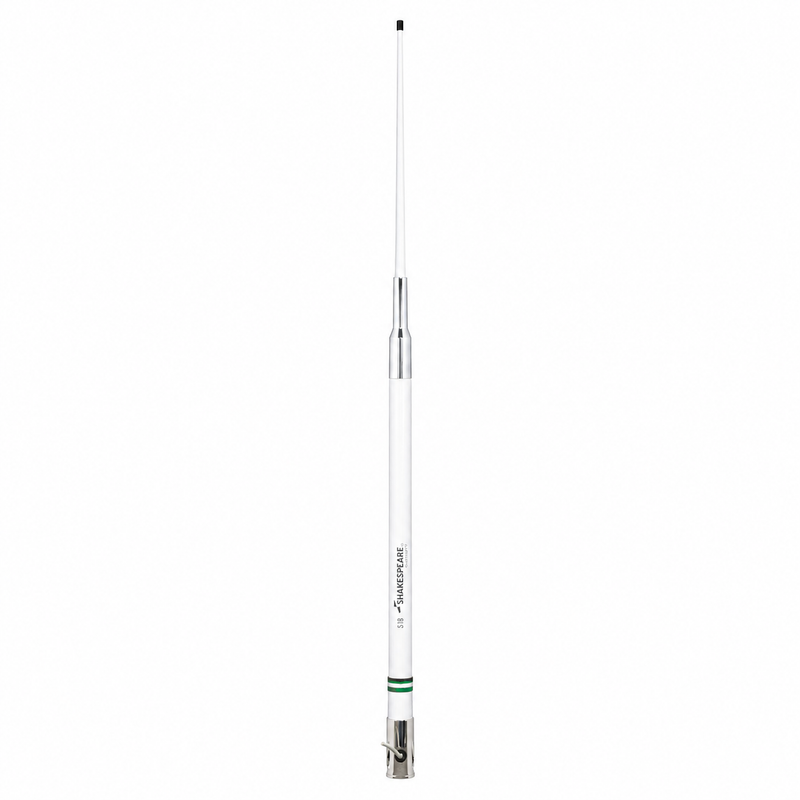

The Shakespeare Galaxy 5230 is a 14 ft, 2-piece VHF marine antenna designed for long-range communication on larger boats where an 8dB antenna is appropriate. It uses a 5/8 wave over 1/2 wave dipole design with brass and copper elements, a heavy-duty fiberglass body, and Shakespeare’s high-gloss Galaxy white finish for marine durability. The 2-piece construction makes the antenna easier to ship and handle while still providing the signal capture area expected from a full 14 ft VHF antenna.
Key Features
- 14 ft / 4.26 m Galaxy-series VHF marine antenna
- 8dB gain for longer-range VHF performance
- 2-piece construction: 94 in. base section and 74 in. tip section
- 5/8 wave over 1/2 wave dipole design
- Brass and copper internal elements for efficient signal performance
- Stainless steel ferrule with standard 1"-14 thread
- Includes 20 ft RG-8/X coax cable and PL-259 connector
- Maximum input power: 200 watts
- Nominal SWR: 1.5:1 at 156.8 MHz
- Bandwidth: 3 MHz within 2.0:1 VSWR
- Impedance: 50 ohms
- Vertical polarization
- DC grounded design; antenna may read shorted during continuity testing
- UPC: 719441200084
Engine Compatibility
This is a marine VHF antenna and is not engine-specific. It is intended for boats using compatible VHF marine radios with a standard VHF antenna connection. The 8dB gain and 14 ft length make it best suited to larger boats, hardtop installations, flybridge setups, sportfish boats, cruisers, and other applications where a taller antenna and longer-range VHF performance are preferred.
Serial Number Fitment Notice
Marine antennas do not use engine serial-number fitment, but installation compatibility should still be confirmed before ordering. Check the boat’s VHF radio connection, mounting location, cable routing, clearance, antenna height requirements, and mount style. This antenna uses a standard 1"-14 threaded ferrule and is commonly paired with Shakespeare 409-R or 410-R mounting kits.
When This Part Needs Replacement
Replace the antenna if the fiberglass body is cracked, UV-damaged, water-intruded, physically broken, or if the ferrule, coax, or connector is corroded or damaged. Weak VHF range, intermittent transmission, poor reception, or high SWR readings can also point to antenna or cable issues after the radio and connections have been checked.
Installation Notes
Mount the antenna as high and clear as practical for best VHF performance. Route the coax carefully to avoid sharp bends, pinch points, chafe, and unnecessary cable stress. Use a compatible heavy-duty 1"-14 marine antenna mount, verify connector installation, and keep the antenna clear of nearby metal obstructions or other antennas where possible.
Alternate/Superseded Part Numbers
- Shakespeare 5230
- SHA-5230
- SHK 5230
- CWR-10640
- UPC: 719441200084
Parts Desk Insight
The 8dB gain is the key detail on this antenna. It is a strong choice for larger boats where the antenna can stay more upright, but smaller or very active boats may be better served by a lower-gain antenna with a wider radiation pattern.
