Cole Hersee 880062BP SR Series Master Battery Disconnect Switch – 300A, IP67/IP69K
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
300A Master Disconnect — Certified for Marine Battery Box Installation

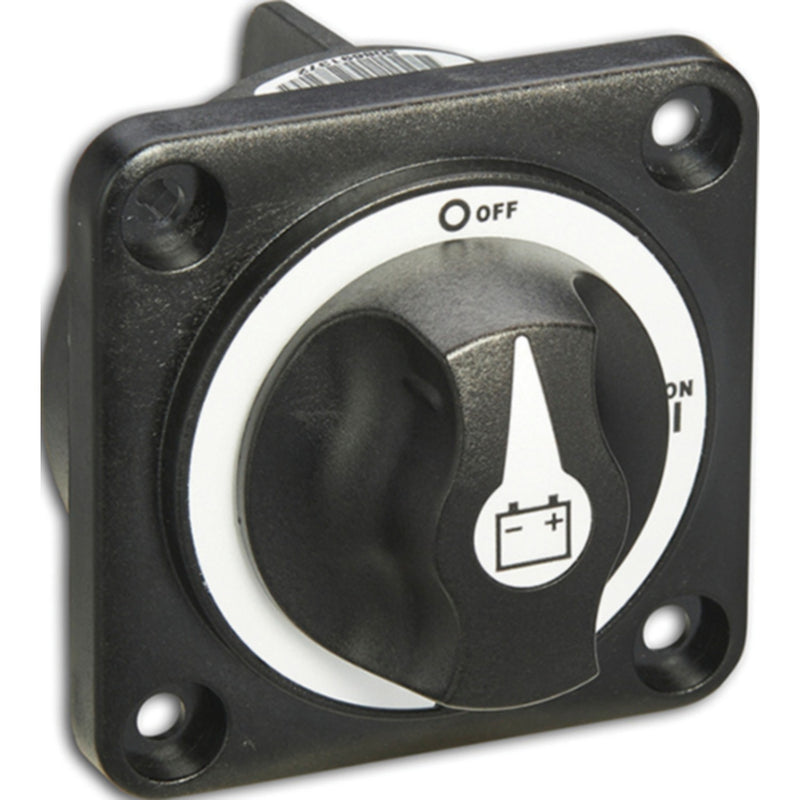

The Cole Hersee 880062BP SR Series Master Disconnect Switch is a heavy-duty battery isolation switch built for boats, RVs, and commercial vehicles that demand serious protection. At 300A continuous and rated to 32V, it handles full electrical system loads without hesitation — and when you’re done for the day, a single turn of the knob isolates the battery completely, eliminating parasitic drain during storage.
Dual ingress protection ratings (IP67 and IP69K) mean this switch survives full submersion and high-pressure wash-down — a meaningful spec for bilge-adjacent or below-deck installations. It’s also ignition protected to SAE J1171 and ISO 8846, making it certified safe for installation directly in a battery box where fuel vapors may be present. The compact 3" depth (knob face to stud end) makes it one of the more space-efficient options in its class for tight panel or battery compartment installs.
Key Features
- SPST master disconnect — fully isolates battery from all circuits
- 300A continuous current rating at 32V DC
- IP67 and IP69K rated — submersion and high-pressure wash-down resistant
- Ignition protected to SAE J1171 and ISO 8846 — safe for battery box installation
- Black UV-resistant plastic housing — will not corrode in salt spray or road splash
- Stainless steel hardware and tin-plated copper contact
- Only 3" deep (knob front to stud end) — fits tight spaces behind panels
Compatible Applications
- Marine battery isolation on powerboats, sailboats, and pontoons
- RV and motorhome battery disconnect
- Commercial and work vehicle battery shutoff
- Battery box installations requiring ignition-protected switches
- Below-deck and bilge-adjacent electrical panels
- Seasonal storage battery isolation to prevent parasitic drain
- 12V and 24V DC systems up to 32V
Parts Desk Insights
Best use case: The 880062BP is the right switch when certification matters — specifically for battery box installations where ignition protection is required by ABYC or insurance standards, or for any below-deck location that sees regular wash-down. The IP69K rating is uncommon at this price point and makes it a strong choice for working boats and commercial vessels where the electrical compartment gets hosed out regularly. The 3" depth is also a practical advantage in cramped battery compartments where deeper switches simply won’t fit.
Related disconnect switches: For a keyed battery disconnect with theft-deterrent lockout, see the Moeller Battery Disconnect Switch with Key. For a push-pull style On/Off switch for lighter accessory circuits, the Cole Hersee M606BP Push-Pull Switch is a compact option.
