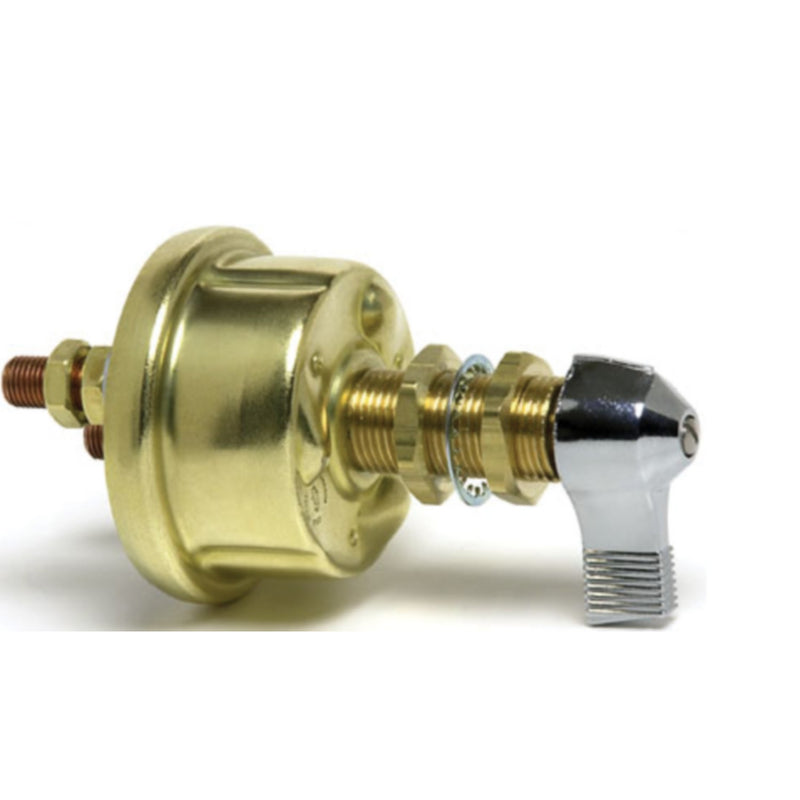

Cole Hersee M284BP SPST Battery Disconnect Switch – 175A, Lever Style, Brass Case
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Heavy-Duty Lever Disconnect for Full Battery Isolation
The Cole Hersee M284BP is a single-pole, lever-operated battery disconnect switch built for serious marine and vehicle electrical systems. Flip the die-cast lever to Off and the battery is fully isolated from all circuits — eliminating parasitic drain during storage and providing a fast, positive shutoff in an emergency. Flip it back to On and full power is restored instantly.
Rated at 175A continuous and 1000A intermittent across 6–36V DC systems, this switch handles the full electrical load of most marine applications including engine cranking surges. The solid brass case and 3/8" copper stud terminals are built for long-term corrosion resistance and high-current reliability. The long 3/4"-16 threaded stem accommodates panels up to 15/16" thick — more than most battery compartment panels — and the lever-style operation gives a clear, tactile on/off indication that’s easy to confirm at a glance.
Key Features
- SPST configuration — Single Pole, Single Throw (Off / On)
- 175A continuous / 1000A intermittent current rating
- Compatible with 6–36V DC systems (12V and 24V)
- Die-cast lever for positive, tactile on/off operation
- Solid brass case for corrosion resistance
- Two 3/8" diameter stud terminals
- Long stem: 3/4"-16 thread, 1-13/32" length
- Fits panels up to 15/16" thick
Compatible Applications
- Marine battery isolation on powerboats, sailboats, and pontoons
- RV and motorhome battery disconnect
- Seasonal storage battery isolation to prevent parasitic drain
- Emergency battery shutoff on vessels and vehicles
- 12V and 24V DC systems up to 36V
- Battery compartment and engine room installations
- High-current applications requiring 175A+ continuous switching
Parts Desk Insights
Best use case: The M284BP is the right choice when you want a lever-style disconnect that’s fast to operate and easy to confirm visually — the lever position makes it immediately obvious whether the battery is isolated or live, which matters in emergency situations and during routine storage prep. The 1000A intermittent rating means it handles engine cranking loads without issue, making it suitable as a primary battery disconnect on single-engine boats and vehicles. The brass case is a meaningful durability advantage over plastic-bodied alternatives in bilge-adjacent and engine compartment locations.
Related disconnect switches: For a keyed disconnect with theft-deterrent lockout, see the Moeller Battery Disconnect Switch with Key. For a compact knob-style disconnect with IP67/IP69K certification, the Cole Hersee 880062BP SR Series Master Battery Disconnect Switch is a strong alternative. For full dual-battery selection (1/Both/2/Off), the Cole Hersee M750BP 4-Position Dual Battery Selector Switch adds bank management capability.
