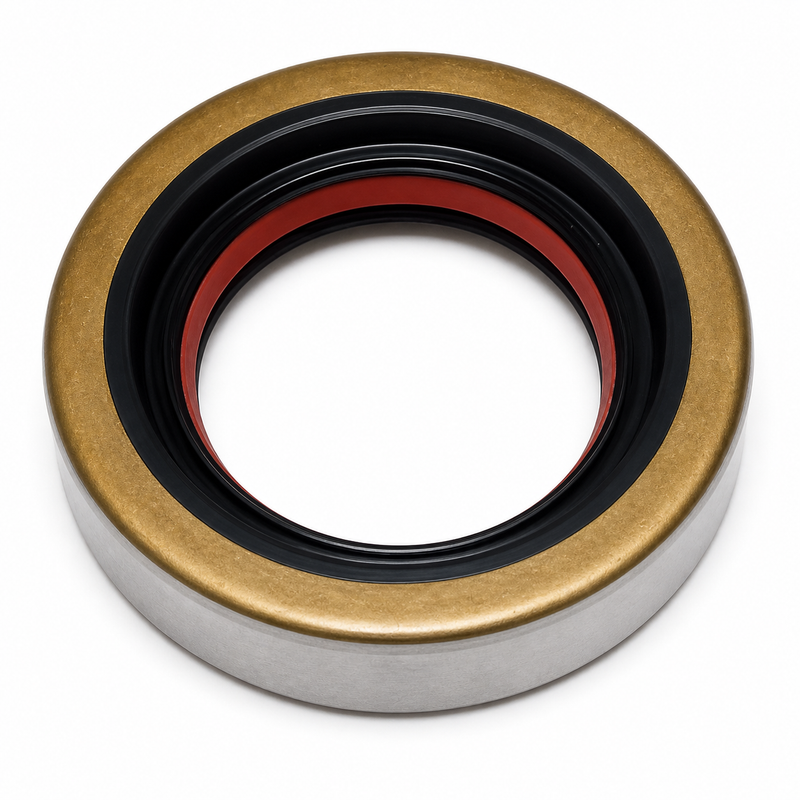

Volvo Penta Gimbal Bearing Driveshaft Seal 3852548
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Volvo Penta 3852548 is a gimbal bearing / transom driveshaft oil seal used in supported Volvo Penta SX and DP-SM transom shield assemblies. It helps seal around the driveshaft area and protect the gimbal bearing from water, dirt, and debris intrusion. Volvo Penta diagram references show 3852548 as a seal in the transom shield assembly, alongside related components such as O-ring 3852537, rubber collar 3860365, ball bearing 184860, and bellows 21277185 / 3885870.
Key Features
- Volvo Penta gimbal bearing / transom driveshaft seal
- Used in supported transom shield assemblies
- Helps protect the gimbal bearing and driveshaft area from water and contamination
- Volvo Penta part number: 3852548
- Common aftermarket dimensional reference: approximately 56 mm outside diameter x 33 mm inside diameter x 13 mm width
- Alternate dimensional reference: approximately 2.186 in. outside diameter x 1.375 in. shaft size x 0.500 in. width
- Common weight reference: approximately 0.09 lb
- Related replacement reference: OMC / BRP 911795
Engine Compatibility
This seal is primarily transom-shield and drive-family specific rather than engine-displacement specific. Cross-reference fitment data lists it for Volvo Penta SX-C, SX-M, SX-R, SX-S, and DP-SM transom applications, and also for compatible OMC Cobra transom / sterndrive applications where the same seal reference is used.
Serial Number Fitment Notice
Seal fitment depends on the exact Volvo Penta transom shield, drive model, gimbal bearing setup, and serial number range. Always confirm compatibility using the Volvo Penta parts diagram and serial number before ordering, especially when cross-referencing 3852548 with OMC / BRP 911795 or aftermarket equivalents.
When This Part Needs Replacement
Replace this seal during gimbal bearing or transom shield service, or if the original seal is worn, hardened, torn, leaking, corroded, or damaged during removal. A compromised seal can allow water and debris into the gimbal bearing area and may shorten bearing life.
Installation Notes
Install as a direct press-fit seal in the correct transom shield location. Inspect the gimbal bearing, bellows, driveshaft surface, seal bore, O-rings, and surrounding transom components while the area is apart. Confirm the seal is pressed in squarely and fully seated before reassembly.
Alternate/Superseded Part Numbers
- 3852548
- Volvo Penta 3852548
- BRP 3852548
- OMC / BRP 911795
- 911795
- Sierra 18-8349
- GLM 86560
- REC3852548
Parts Desk Insight
This seal is best matched by transom shield and drive model, not by engine size. If the gimbal bearing area is already open, it is smart to inspect the bellows and bearing at the same time because a leaking or aged bellows can damage the new seal and bearing quickly.
