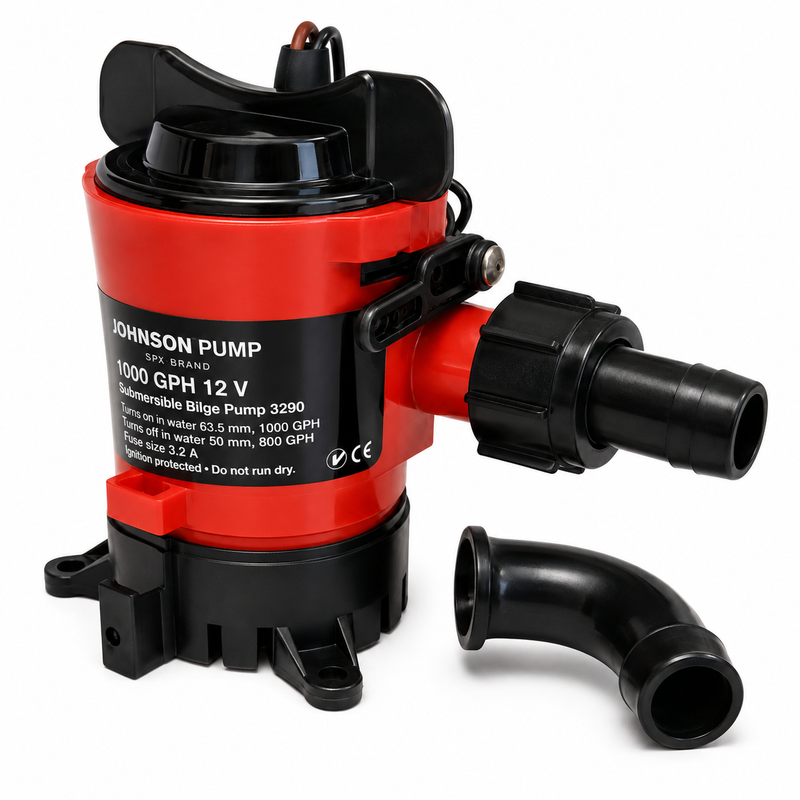

Johnson Pump Marine Cartridge Bilge Pump – 1000 GPH, 12V
Part Number: 32903
Brand: Johnson Pump Marine
UPC: 729321329033
Product Overview
The Johnson Pump 32903 is a compact 12V cartridge-style bilge pump rated at up to 1000 GPH in straight-flow conditions. Its removable motor/impeller cartridge lets you service or clean the pump without removing the base from the bilge — a significant convenience for routine maintenance. Water-cooled motor and ISO 8849 certified for marine use.
- Voltage: 12V DC
- Max capacity: 1000 GPH (63 L/min) at straight flow
- Capacity at 3 ft head: 800 GPH (50 L/min)
- Current draw: 3.2 A
- Recommended fuse: 5 A
- Discharge connection: 3/4 inch (Dura-Port)
- Includes straight and 90° Dura-Port discharge fittings
- Includes removable check valve
- Tool-free cartridge removal for maintenance
- Water-cooled motor
- Meets ISO 8849 marine requirements
Compatible Applications
- Recreational powerboats and cruisers
- Fishing vessels and center consoles
- Sailboats and liveaboards
- Any 12V marine installation requiring a compact, serviceable bilge pump
Fitment Note: Confirm 12V electrical system, adequate bilge mounting space, and a compatible 3/4-inch discharge hose. A separate float switch or bilge pump control is required for automatic operation — this pump does not include one.
When to Replace or Service
- Significant reduction in flow output
- Motor runs intermittently or fails to start
- Impeller is visibly damaged or worn
- Pump no longer reliably evacuates bilge water
The cartridge can be pulled and inspected without removing the pump base — check the cartridge before replacing the entire unit.
Installation Notes
- Mount at the lowest practical point in the bilge
- Route discharge hose to minimize restrictions and vertical lift
- Use a 5 A fuse and marine-grade electrical connections
- Verify all hose connections and test operation after installation
Part Number Cross-Reference
- Johnson Pump: 32903
- 24V version: 32903-24 (separate product — confirm vessel voltage)
Related Products
- Johnson Pump 28512 – 1000/1250 GPH Spare Motor Cartridge
- Johnson Pump Cartridge Combo Package – Auto Bilge Pump with Electronic Float Switch, 12V
- Johnson Pump 92205 DuraPort 90° Connection for 500–1000 GPH Cartridge Pumps
- Johnson Pump 92105 DuraPort Straight Connection for 500–1000 GPH Cartridge Pumps
- Johnson Pump 54235PK Bilge Basket
- Automatic Float Switch – 12V/24V 15A Bilge Pump Control
- Seachoice Universal Automatic Marine Bilge Pump Float Switch – 6–32V
Parts Desk Insights
The 32903 is one of the most straightforward bilge pump installs in the Johnson Pump lineup — the tool-free cartridge is its main selling point for customers who want easy seasonal maintenance access. The most common ordering mistake is confusing it with the 24V version (32903-24); always confirm vessel voltage. If a customer needs automatic operation, pair it with a float switch or recommend the combo package instead. For service without full replacement, the 28512 spare motor cartridge covers most failure scenarios.
