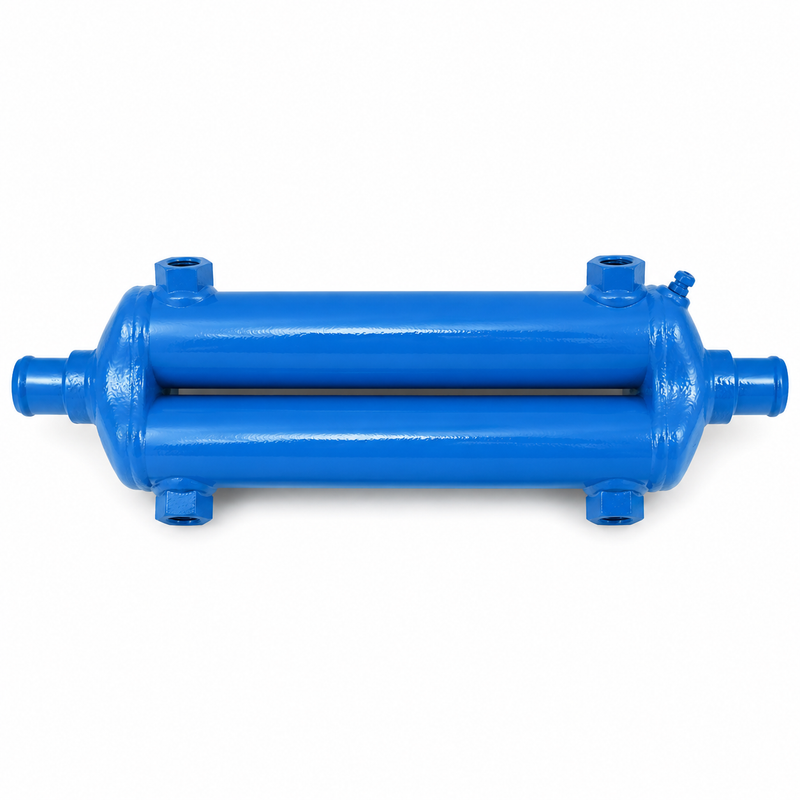

PCM Crusader — Combination Oil Cooler 8.1L — R147035A
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The PCM / Crusader R147035A Combination Oil Cooler is a dual-purpose marine cooling assembly designed for compatible GM-based 8.1L / 496 cu. in. PCM and Crusader MPI inboard engines. This shell-and-tube cooler uses raw seawater flow to help reduce both engine oil temperature and transmission fluid temperature through a combined cooler body.
By integrating engine oil and transmission fluid cooling in one assembly, this cooler supports stable lubrication temperatures, transmission protection, and reliable high-load operation in large-displacement marine inboard applications.
Key Features
- PCM / Crusader combination engine oil and transmission fluid cooler.
- Part number: R147035A.
- Crusader reference: RA147035A or R147035A.
- Designed for compatible GM-based 8.1L / 496 MPI marine inboard engines.
- Dual cooling paths for engine oil and transmission fluid.
- Raw water-cooled shell-and-tube design.
- Used on select 2001–2005/2006 PCM and Crusader big-block applications where specified.
- Commonly associated with Velvet Drive 5000 Series transmission installations where listed.
- Version A reference may include a bottom winterization drain plug.
- Replacement cooler only; mounting straps and related hardware should be verified separately.
Technical Specifications
- Cooler type: combination engine oil and transmission fluid cooler
- Part number: R147035A
- Crusader reference: RA147035A
- Raw water hose connections: 1-1/4 in. straight hose barb connections
- Engine oil ports: two 1/2 in. NPT threaded connections
- Transmission fluid ports: two 3/8 in. NPT threaded connections
- Body length: 12 in. reference
- Shell diameter: 2-1/8 in. reference
- Overall length: 17-3/4 in. tip-to-tip reference
- Cooler style: shell-and-tube raw water heat exchanger
- Aftermarket material reference: Cupronickel / copper-nickel construction on upgraded replacement versions where specified
Engine Compatibility
Common application context includes compatible PCM and Crusader GM-based 8.1L / 496 MPI inboard engines where R147035A, RA147035A, or a verified equivalent is specified, including:
- Crusader Captain’s Choice MP 8.1L applications where listed.
- Crusader 8.1L H.O. MPI applications where listed.
- PCM Python 8.1L applications where listed.
- PCM 8.1L high-output inboard applications where listed.
- Compatible 2001–2005/2006 big-block marine inboard cooling layouts.
- Installations paired with compatible Velvet Drive 5000 Series marine transmissions where specified.
Use this cooler only where the engine model, serial number, transmission model, hose routing, oil-line layout, and parts manual confirm R147035A or a verified equivalent.
Fitment Notice
Confirm fitment by engine serial number, cooler version, bracket layout, drain plug configuration, raw water hose size, engine oil fitting size, transmission fitting size, and overall cooler length before ordering. This application may have multiple minor cooler configurations, so bracket position and plumbing orientation should be checked against the existing cooler.
This listing is for the combination cooler assembly. It is not the mounting strap set, raw water hose, oil hose, transmission hose, drain plug, end cap, or complete cooling system kit.
When This Part Needs Replacement
Replace the cooler if it is leaking externally, leaking oil or transmission fluid into the raw water circuit, leaking seawater into the oil or transmission fluid, plugged with scale or debris, corroded, cracked, frozen, or no longer able to maintain proper fluid temperature.
Replacement is also recommended after saltwater intrusion, freeze damage, oil contamination, transmission fluid contamination, unexplained overheating, or repeated clogging from raw water debris.
Installation Notes
Close the seacock and drain the raw water circuit before removal. Label the engine oil and transmission fluid lines so they return to the correct ports. Inspect hoses, clamps, fittings, mounting straps, drain plug, and adjacent raw water plumbing during replacement.
Use the correct thread sealant for NPT oil and transmission fittings where specified, and avoid over-tightening fittings into the cooler body. After installation, refill and check fluid levels, open the seacock, run the engine, inspect for leaks, and recheck engine oil and transmission fluid condition after warm-up.
Alternate / Cross-Reference Part Numbers
- PCM R147035A — primary part number
- Crusader RA147035A — Crusader reference
- Crusader R147035A — alternate Crusader reference
- Seakamp SKR147035A — aftermarket replacement reference; verify version and port layout
- R171007 — related mounting strap reference; verify by installation
Parts Desk Insight
This cooler handles two critical systems at once: engine oil and transmission fluid. A failure can contaminate oil, transmission fluid, or raw water, so any sign of milky fluid, unexplained fluid loss, overheating, or corrosion should be checked quickly. Before ordering, match the existing cooler’s port sizes, bracket position, drain plug location, and overall length because this 8.1L application can have more than one configuration.
