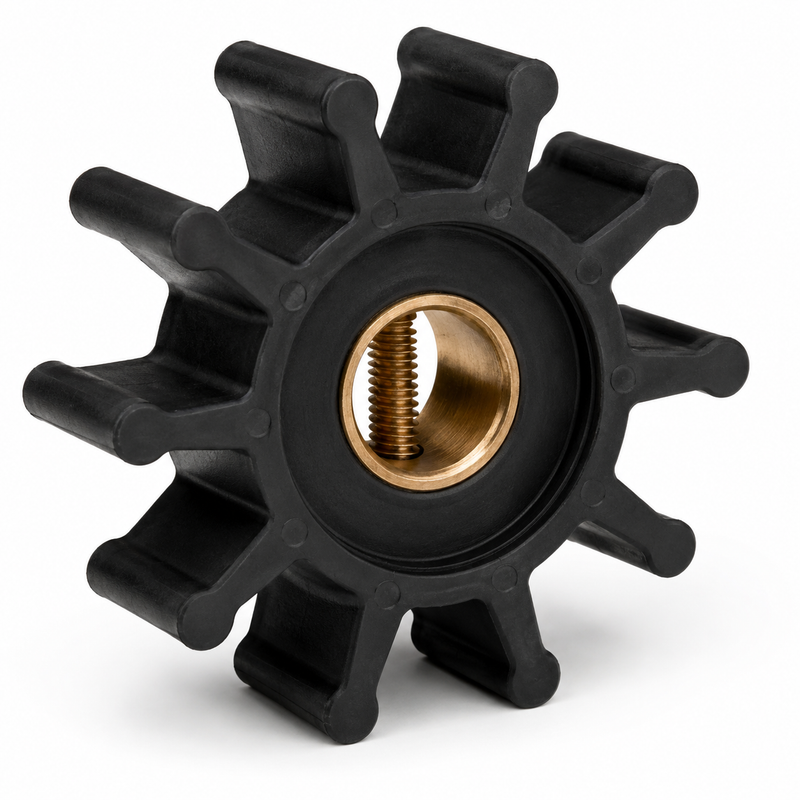

Ancor — Raw Water Pump Impeller — AN 3830
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Ancor AN 3830 Raw Water Pump Impeller is a flexible neoprene replacement impeller for compatible marine engine and generator raw water cooling pumps. Designed with a 10-blade pin-drive / slotted-shaft configuration, this impeller helps move seawater or freshwater through the cooling circuit to protect the engine, exhaust components, and heat exchanger from overheating.
This impeller is commonly used in classic marine diesel engines and generator applications where the pump, engine manual, or existing impeller confirms AN 3830, AN3830, or a verified equivalent.
Key Features
- Ancor flexible raw water pump impeller.
- Part number: AN 3830.
- Alternate format: AN3830.
- 10-fin / 10-blade design.
- Pin-drive / slotted-shaft configuration.
- Neoprene construction for fresh water and salt water cooling service.
- Designed for compatible marine engine and generator raw water pumps.
- Helps maintain proper cooling water flow.
- Suitable for routine impeller replacement and preventative cooling system service.
- Manufactured in Italy reference.
Technical Specifications
- Impeller type: flexible raw water pump impeller
- Material: neoprene
- Blade count: 10
- Drive style: pin drive / slotted shaft
- Outer diameter: 51 mm / approximately 2.0 in.
- Width / depth: 22 mm / approximately 0.86 in.
- Shaft diameter: 12.7 mm / approximately 0.50 in.
- Service: marine raw water cooling pumps
Engine & Pump Compatibility
Common application context includes compatible raw water pumps and marine engines where this impeller size and drive style are specified, including:
- Northern Lights / Lugger generator applications where listed.
- Northern Lights M673L generator applications where the raw water pump layout confirms this impeller.
- Northern Lights 643-series generator applications where listed.
- Raw water pump layout reference NL 25-12007, where applicable.
- Perkins 3.152 marine diesel applications where listed.
- Bukh DV10 marine diesel applications where listed.
- Bukh DV20 marine diesel applications where listed.
- Compatible Jabsco-style pump applications using the listed cross-reference group.
Use this impeller only where the pump model, engine model, serial number, impeller dimensions, and drive style match the application.
Fitment Notice
Confirm fitment by pump model, engine model, serial number, existing impeller number, shaft diameter, impeller width, outer diameter, and drive style before ordering. Flexible impellers can look similar but may differ in shaft style, blade count, width, hub diameter, and cover gasket requirements.
This impeller is for compatible pin-drive / slotted-shaft pump applications. It should not be substituted into key-drive or spline-drive pumps unless the parts manual confirms compatibility.
When This Part Needs Replacement
Replace the impeller at least once per season, during scheduled cooling system service, after dry running, after overheating, after long storage, or whenever cooling water flow is weak. Replacement is also recommended if the impeller blades are cracked, stiff, missing, swollen, permanently bent, or showing signs of heat damage.
A worn or failed raw water impeller can cause overheating, exhaust hose damage, reduced cooling flow, and broken rubber blades traveling downstream into the heat exchanger or oil cooler.
Installation Notes
Inspect the pump cover, wear plate, cam, and gasket surface before installing the new impeller. Lubricate the impeller blades with glycerin, soapy water, or an approved impeller lubricant before installation. Do not install dry and do not run the pump dry.
Twist the blades in the correct direction as the impeller is inserted into the pump body. Replace the cover gasket or O-ring as required, then check for leaks and confirm strong raw water discharge after startup.
Alternate / Cross-Reference Part Numbers
- Ancor AN 3830 — primary part number
- Ancor AN3830 — alternate format
- Jabsco 18673-0001 — cross-reference reference; verify by pump model
- Jabsco 18673-000B — cross-reference reference; verify by pump model
- Jabsco 18653-0001 — related interchange reference; verify dimensions and pump model
- Ancor AN 3823 — related interchange reference; verify dimensions and pump model
- Northern Lights / Lugger 25-12009 — cross-reference reference; verify by generator serial number
- Sierra Marine 23-3315 — cross-reference reference; verify by pump model
- JMP Marine 7071 — cross-reference reference; verify by pump model
Parts Desk Insight
This impeller’s key identifiers are the 51 mm outer diameter, 22 mm width, 12.7 mm shaft size, and pin-drive / slotted-shaft hub. Matching those details is more reliable than matching by engine family alone. When replacing the impeller, inspect the pump cover and gasket at the same time, since a worn cover plate can reduce cooling flow even with a new impeller installed.
