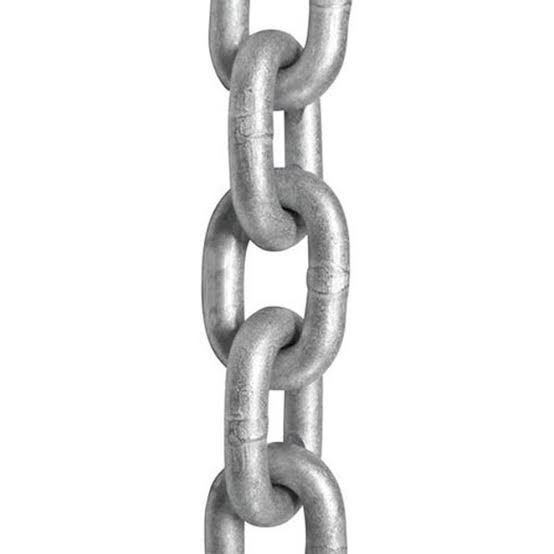

Grade 30 Proof Coil Hot Dip Galvanized Chain, 5/16" x 92' Pail

Lightweight Anchor Chain for Smaller Vessels. 92 Feet Ready to Go.

The Titan Chain Grade 30 Proof Coil Hot Dip Galvanized Chain in 5/16" x 92 feet is sized for smaller sailboats, powerboats, and dinghies where 3/8" chain would be overkill in weight and windlass load. At 5/16" diameter, this chain is lighter and easier to handle manually while still delivering the corrosion resistance and working strength needed for reliable anchoring in coastal and inland waters.

Ninety-two feet gives you a complete shallow-water anchor rode or a generous chain leader on a rope rode — enough scope for most day-anchoring and overnight situations on smaller vessels. Hot dip galvanized finish and ISO short pitch links ensure long-term durability and windlass compatibility.

Key Features

• Grade 30 Proof Coil — Standard working load chain rated for general purpose and anchor applications
• Hot Dip Galvanized Finish — Thick zinc coating for superior corrosion resistance vs. electro-galvanized chain
• 5/16" Diameter — Lighter sizing suited to smaller vessels, manual handling, and lighter-duty windlasses
• 92-Foot Pail — Full shallow-water rode length or generous chain leader in a manageable pail format
• ISO Short Pitch Link — Standard link geometry for compatibility with windlass gypsies and anchor rollers sized for 5/16" chain
• Low Carbon Steel Construction — Proven material for strength and workability in marine anchoring use
• 1-Year Warranty — Backed by Titan Chain’s manufacturer warranty

Specifications

• Brand: Titan Chain
• Grade: 30 (Proof Coil)
• Finish: Hot Dip Galvanized
• Diameter: 5/16" (7.9mm)
• Length: 92 ft (28.0m)
• Link Type: ISO Short Pitch
• Material: Low Carbon Steel
• Weight: 43.1 kg (95 lb)
• Part Number: 10312739
• Warranty: 1 Year

For smaller vessel owners who want proper anchor chain without the weight penalty of larger diameters, the Titan Chain 5/16" x 92’ pail is the right-sized solution.

⚓ Parts Desk Insight

• 5/16" is the right size for smaller boats: Typically used on vessels under 30 feet. Lighter than 3/8" chain, easier to handle manually, and compatible with lighter-duty windlasses. Customers with larger vessels should step up to 3/8" or 1/2" for appropriate working load and catenary effect.
• 92 feet provides solid scope for shallow-water anchoring: At 5:1 scope, 92 feet covers anchoring in up to ~15 feet of water as an all-chain rode. As a chain leader on a rope rode, it provides excellent abrasion protection and weight at the anchor end for depths well beyond that.
• Windlass gypsy must match 5/16" Grade 30: Not all windlasses accommodate 5/16" chain — some are gypsied only for 3/8". Customers should confirm their windlass gypsy specification before ordering to ensure the chain feeds correctly without skipping or jamming.
• Manual handling is practical at this diameter: Unlike 3/8" or 1/2" chain, 5/16" can be retrieved and deployed by hand on smaller vessels without a windlass. This makes it a good choice for boats without a windlass or as a backup anchor chain that doesn’t rely on powered retrieval.
