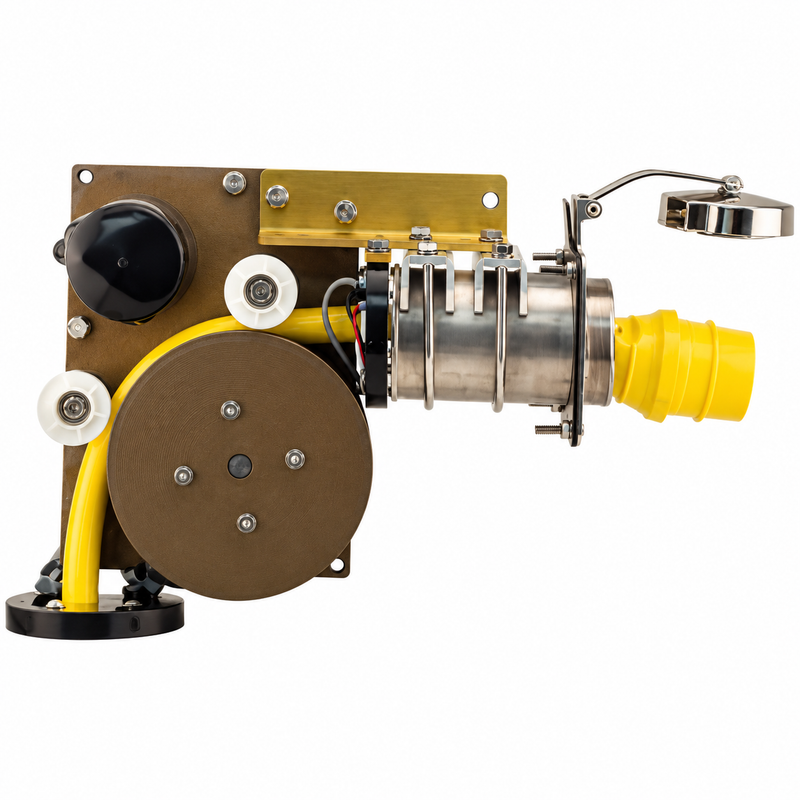

Glendinning 04020-CM7-12V Cablemaster CM7 Shore Power Cable Management System, 12V, 50A
The Glendinning Cablemaster CM7 makes easy work of managing your shore power cable. Powered extension and retraction coil the cable automatically into a storage container below deck, so deploying or stowing your shore power connection takes just the flip of a switch.
Key Features
- Powered extension and retraction with the flip of a switch
- Cable automatically coils into a storage container below deck; cable length is limited only by the size of the storage area
- Robust marine construction and powerful drive motors
- Rated for 50A applications
- Accommodates cable sizes .83" to 1.14" OD
- Operates on a 12V system
- Dimensions: L 18" x W 6.3" x H 12.5" (457 mm x 160 mm x 318 mm)
- UL, CSA, ABYC, CE, and ISO8846 approved
Compatible Applications
- 50A shore power cable management on boats with a 12V DC electrical system
- Installations with below-deck space for a cable storage container
- Shore power cable from .83" to 1.14" in outside diameter
Product Details
- Part number: 04020-CM7-12V
- Brand: Glendinning
- Product type: Cablemaster CM7 shore power cable management system
- Electrical system: 12V
- Applications: 50A
- Cable size range: .83" to 1.14" OD
- Dimensions: L 18" x W 6.3" x H 12.5" (457 mm x 160 mm x 318 mm)
- Approvals: UL, CSA, ABYC, CE, ISO8846
Technical FAQ
What does the Cablemaster CM7 do? It extends and retracts your shore power cable with the flip of a switch, automatically coiling the cable into a storage container below deck.
How much cable can it handle? Cable length is limited only by the size of the storage area, and the system accommodates cable from .83" to 1.14" in outside diameter.
What power does the unit need? The CM7 operates on a 12V DC system and is rated for 50A shore power applications.
What certifications does it carry? The system is UL, CSA, ABYC, CE, and ISO8846 approved.
Related Products
- Glendinning Relay Assembly — a Cablemaster relay assembly for the system's electrical wiring.
- Glendinning Hawse Pipe Assembly — a Cablemaster hawse pipe assembly for routing the cable through the deck.
- Marinco 6153SPP PowerCord Plus 50A 125V Cord Set, 50 ft — a 50A 125V shore power cord set the CM7 can manage.
- Marinco 50 Amp 125/250V Standard ShorePower Cordset — a 4-conductor 50A 125/250V cord set for 50/250V service.
Parts Desk Insights
Best use case: Automating shore power cable handling on a boat with a 50A connection, so the crew can extend or retract the cable at the flip of a switch instead of coiling it by hand.
Most common customer mistake: Not checking the cable size and storage space before ordering. The CM7 handles cable from .83" to 1.14" outside diameter, and how much cable the system can hold depends entirely on the size of the below-deck storage area, so measure both before ordering.
Sizing and fitment guidance: Confirm the shore power cable's outside diameter falls within the .83" to 1.14" range, check that the 12V system can power the unit, and measure the space for the storage container. The unit measures L 18" x W 6.3" x H 12.5", so plan the installation footprint and deck routing accordingly.
