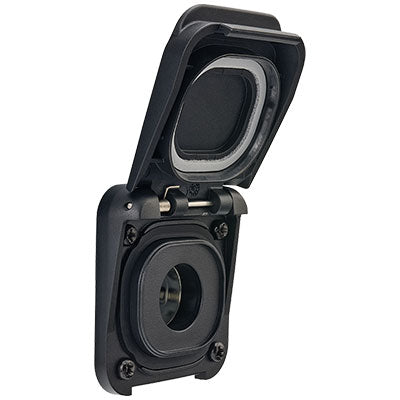

Scanstrut Ventura Series 12V Power Outlet — Part SC-V-DC1
The Scanstrut Ventura 12V Power Outlet makes it easy to plug in portable tire compressors, cool boxes, inverters, and more, wherever the journey takes you. Its compact, rugged design is built on Scanstrut's marine engineering, with a spring-loaded, click-to-close waterproof lid, marine-grade 316 stainless steel components, and a built-in gasket for a watertight seal.
Part Details
- Part number: SC-V-DC1 (SKU SCA-SC-V-DC1)
- Brand: Scanstrut
- Product type: 12V power outlet, Ventura Series
- Electrical: 12V system only, 10-15V DC input; 10A max input current; 150W max output; 0.01W standby draw
- Waterproofing: IP68 and IP69K rated, front only when lid closed
- Materials: Marine-grade 316 stainless steel components with built-in gasket
- Lid: Spring-loaded with premium click-to-close design
- Installation: Standard 32 mm (1.25") holesaw cutout
- Dimensions (per listing): W 2.37" x H 2.68" (approx. 60 mm x 68 mm)
- Certification: CE, ROHS, WEEE
- Warranty: 3-year manufacturer warranty
- Condition: New
Compatible Applications
- Boats, vans, RVs, and overland vehicles that need an exterior 12V power point
- Powering portable tire compressors, cool boxes, inverters, and other 12V gear
- Ventura Series installations that combine power, water, solar, and other exterior connections in one design
- If you are planning an installation, confirm the 1.25" cutout and the space behind the panel before ordering
Key Features
- IP68 and IP69K waterproof rating, front side with the lid closed
- Marine-grade 316 stainless steel hardware with built-in gasket for a watertight seal
- Spring-loaded lid with premium click-to-close design
- 12V system only (10-15V DC), 10A max current, 150W max output, 0.01W standby draw
- Standard 32 mm (1.25") holesaw installation
- CE, ROHS, and WEEE certified, with a 3-year manufacturer warranty
Technical FAQ
What can I plug into this outlet?
Devices that draw up to 10A or 150W on a 12V system (10-15V DC input), such as portable tire compressors, cool boxes, and inverters.
Is it waterproof?
Yes. It is rated IP68 and IP69K on the front side with the lid closed, with a built-in gasket for a watertight seal.
Will it work on a 24V system?
No. This outlet is a 12V system outlet with a 10-15V DC input range.
How is it installed?
It installs in a standard 32 mm (1.25") holesaw cutout.
Related Products
- Scanstrut Ventura Dual USB-C Socket (SC-V-USB-01)
- Scanstrut Ventura 125V 20A AC Outlet (SC-V-P1) — for shore power, a different outlet type
- Scanstrut Ventura SAT Connection (SC-V-TV1)
- Manufacturer product page for SC-V-DC1
Parts Desk Insights
- Best use case: Adding a protected exterior 12V power point to a boat, van, or RV where spray, rain, and washdowns demand a sealed, weatherproof outlet.
- Most common customer mistake: Assuming the outlet is waterproof in every condition. The IP68 and IP69K rating applies to the front side with the lid closed, so gear left plugged in with the lid open is not protected.
- Sizing and fitment guidance: It installs in a standard 32 mm (1.25") holesaw cutout and measures about 2.37" wide by 2.68" high per the listing. Confirm the cutout size, panel thickness, and clearance behind the panel before ordering.
