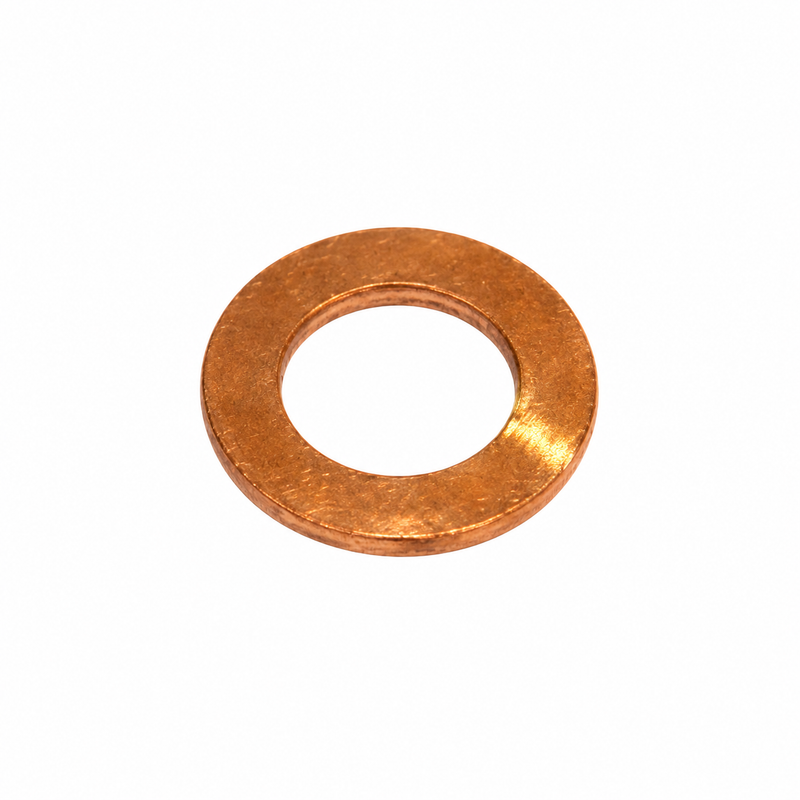

Yanmar 104884-59170 Copper Fuel Pipe Gasket — 8 × 14 × 1 mm
This copper washer seals the specified fuel-pipe joint when compressed during assembly. Match Yanmar part 104884-59170 to the exact engine diagram position; nearby washers with similar openings may have different part numbers and thicknesses.
Compatible Applications
- Yanmar 1GM10 fuel pipe, diagram item 23
- Yanmar 3GMFY fuel pipe, diagram item 16
- Yanmar TF155R-DI fuel lines
- Yanmar TS105C-GBB fuel oil system
- Catalog references also include Yanmar 3TN66L and 3TNA68L; confirm the exact engine variant and diagram
Part Details
- Brand: Yanmar
- Part number: 104884-59170
- Catalog description: Gasket, 8
- Material: Copper
- Quantity: One washer
- Listed dimensions: 8 mm inside diameter × 14 mm outside diameter × 1 mm thick, approximately 0.315 × 0.551 × 0.039 in.
- Part reference: Listed as replacing 104264-59170
Fitment Notice
Match part 104884-59170 and the diagram item to the engine’s serial-specific fuel pipe or fuel oil system drawing. Nearby gasket 23414-080000 is a separate 8 × 1.0 gasket and is not interchangeable based only on nominal opening size.
When to Replace
Install a new washer when the fuel-pipe joint is opened, or replace it if the existing washer is distorted or fuel seepage appears at the connection.
Installation Notes
Clean the mating faces and tighten the joint according to the procedure for the specific engine. Avoid adding sealant to the fuel connection unless the service manual directs it. See the Yanmar 1GM10 Fuel Pipe diagram, Figure 42.
Related Products
Yanmar 23414-080000 Engine Gasket is a nearby, separately catalogued gasket. Confirm the exact part number and diagram position before ordering; it is not a substitute for 104884-59170.
Technical FAQ
Is the washer 1 mm thick? The referenced parts listing identifies it as 8 × 14 × 1 mm. Confirm the diagram number rather than choosing by size alone.
Can 23414-080000 be substituted? No. It has a different part number and should only be used where the engine diagram specifies it.
Parts Desk Insights
Best use: Sealing the fuel-pipe joint at the Yanmar diagram position that specifies 104884-59170.
Common mistake to avoid: Selecting a similar-looking copper washer by nominal opening size and overlooking its part number or thickness.
Sizing and fitment: Listed size is 8 × 14 × 1 mm. Verify the engine variant, serial-specific diagram item, and part number before ordering.
