Cannon 1902335 Optimum™ Electric Downrigger, Black

The Cannon Optimum Electric Downrigger combines precise bait placement with smart, networked trolling control. Its bright 3.5-inch full-colour LCD provides downrigger depth, sonar information and customizable operating views, while advanced functions such as Depth Cycling, Preset Depths, Bottom Tracking, Positive Ion Control, Auto Up and Waterline Zero help keep your presentation working in the strike zone.

Optimum can wirelessly network up to four compatible downriggers and allows simultaneous control through the Cannon mobile app or a compatible Humminbird fish finder. Integration with Fish Hawk X4D and Lithium Ultra systems also allows anglers to monitor the actual depth, temperature and speed at the trolling weight directly from the Optimum display.

Key Features

• Industry-leading retrieval speed of up to 250 feet per minute
• Five adjustable deployment and retrieval speeds

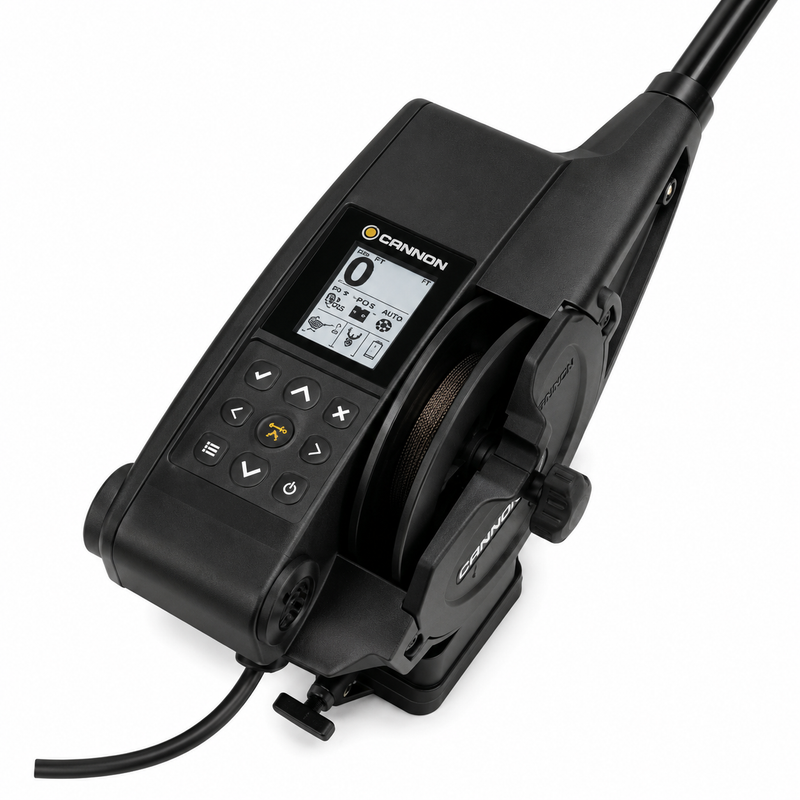

• Bright 3.5-inch full-colour LCD with customizable views
• Wireless networking for up to four Cannon Optimum downriggers
• Control through the Cannon mobile app or compatible Humminbird fish finder
• Fish Hawk X4D and Lithium Ultra integration
• Stores up to five preset trolling depths
• Remembers the depth of the last catch
• Depth Cycling automatically moves the weight through selected depth intervals
• Bottom Tracking maintains a preset distance from the bottom
• Waterline Zero stops the weight at a selected distance below the surface
• Auto Up retrieves individual or connected downrigger weights
• Positive Ion Control helps neutralize fish-repelling electrical energy

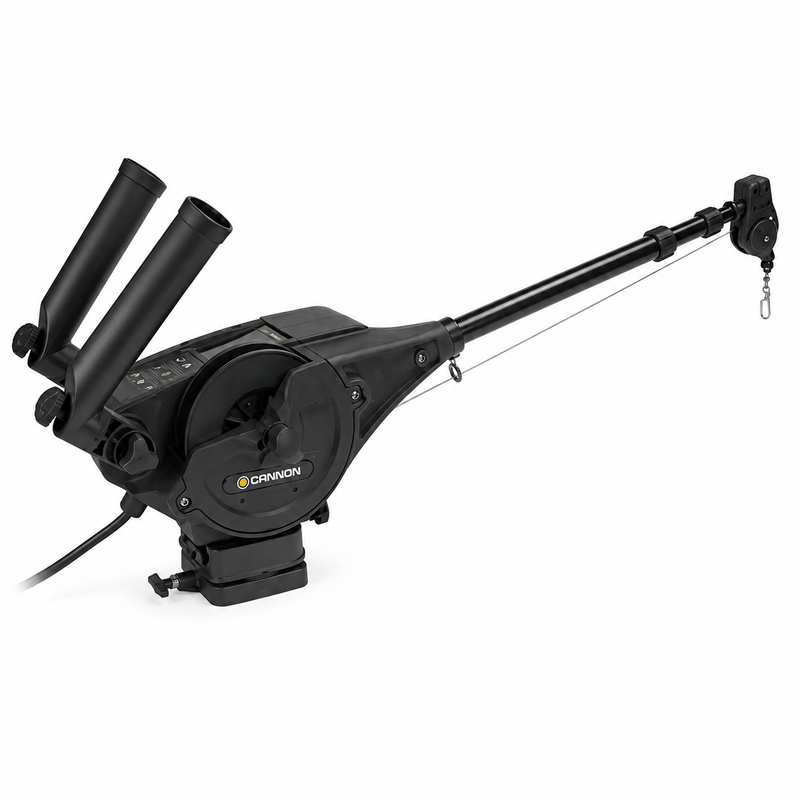

• Heavy-duty stainless steel telescopic boom extending from 24 to 53 inches
• Composite spool preloaded with 400 feet of 150 lb stainless steel cable
• Removable side plate for convenient spool access
• Two dual-axis adjustable rod holders
• Integrated trolling-weight storage hook
• Low-profile 360-degree swivel base
• Waterproof electrical connections
• 20 lb maximum trolling-weight capacity
• Corrosion-resistant construction
• Limited lifetime warranty

Intended Use

The Cannon Optimum is designed for serious controlled-depth trolling where accurate, repeatable bait positioning is essential. It is particularly useful for targeting salmon, lake trout and other suspended or structure-oriented fish that frequently change depth throughout the day.

Its networking, automatic depth control and fish-finder integration make it an excellent choice for anglers running multiple lines or operating several downriggers from one central location.

Product Compatibility

The Optimum can be operated from its onboard keypad and can wirelessly communicate with:

• Up to four compatible Cannon Optimum downriggers
• The Cannon mobile app
• Select Humminbird fish finders through the One-Boat Network
• Fish Hawk X4D and Lithium Ultra systems

Humminbird electronics, Fish Hawk equipment, mobile devices and additional downriggers are sold separately unless specifically included in the installation package.

Fitment Notice

Confirm that the mounting surface is solid, level and sufficiently reinforced to support the downrigger, swivel base and a trolling weight of up to 20 lb. The installation location must also provide adequate clearance for the boom to extend from 24 to 53 inches and rotate through the required operating and storage positions.

Part number 1902335 identifies the standard Cannon Optimum model with a composite spool and two dual-axis adjustable rod holders. It should not be confused with the Optimum TS, which uses additional marine-grade stainless steel components for more demanding saltwater environments.

When This Product Needs Service or Replacement

Inspect the stainless steel cable, spool, line terminator, releases, boom, mounting base and electrical connections before each fishing season and periodically during heavy use.

Service or replacement may be required if:

• The cable becomes frayed, kinked or flattened
• The motor retrieves inconsistently or loses pulling power
• Depth readings become unreliable
• The spool or side plate is damaged
• Electrical connections show corrosion or water intrusion
• The swivel base no longer locks securely
• The boom or mounting structure has sustained impact damage

Replace worn releases and damaged cable before operating the unit under load.

Installation Notes

Mount the downrigger to a structurally reinforced section of the boat using the included universal mounting base and low-profile swivel base. Maintain sufficient clearance for the boom, trolling cable, weight and rod holders throughout the full swivel range.

Follow Cannon's installation instructions for power-cable sizing, circuit protection and waterproof electrical connections. After installation, configure Waterline Zero and test Auto Up before attaching a full trolling weight. Networked downriggers and connected electronics should also be paired and tested before leaving the dock.

What's Included

• Cannon Optimum electric downrigger
• Composite spool with 400 feet of 150 lb stainless steel cable
• Stainless steel telescopic boom
• Universal mounting base
• Low-profile swivel base
• Two dual-axis adjustable rod holders
• Line terminator
• Two Uni-Line releases
• Manual crank handle
• Mounting hardware

Alternate/Superseded Part Numbers

• Cannon product code: 1902335
• UPC: 0029402046881

Confirm the product code when ordering, as Optimum and Optimum TS models have different spool materials, rod-holder quantities and corrosion-resistant component packages.

Parts Desk Insight

The real advantage of the Optimum is not simply its retrieval speed — it is the ability to keep several baits working at controlled, repeatable depths without constantly adjusting every downrigger by hand. For most freshwater trolling installations, the standard Optimum's composite spool and two included rod holders make it a capable and complete setup.
