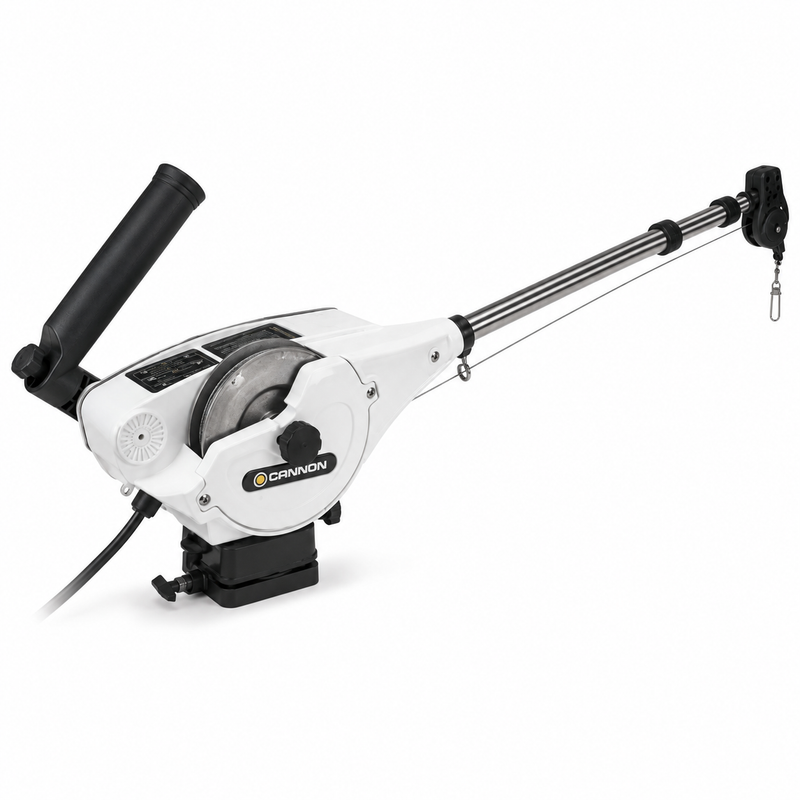

Cannon 1902340 Optimum™ Tournament Series (TS) Electric Downrigger, White
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Cannon Optimum 10 Tournament Series is a premium, saltwater-ready electric downrigger built for anglers who want precise bait placement, connected boat control and dependable performance in harsh marine conditions. Its all-white housing, 316 marine-grade stainless steel telescopic boom and stainless steel spool provide enhanced corrosion resistance, while the bright 3.5-inch full-colour LCD displays depth, trolling information, sonar data and customizable operating views.
Optimum intelligence helps keep your presentation in the strike zone through Depth Cycling, Bottom Tracking, stored preset depths, Auto Up and Waterline Zero. Up to four Optimum downriggers can be wirelessly networked and controlled through the Cannon mobile app or a compatible Humminbird fish finder. Fish Hawk X4D and Lithium Ultra integration can also display the true depth, temperature and speed at the trolling weight.
Key Features
- Industry-leading retrieval speed of up to 250 feet per minute
- Five adjustable deployment and retrieval speeds

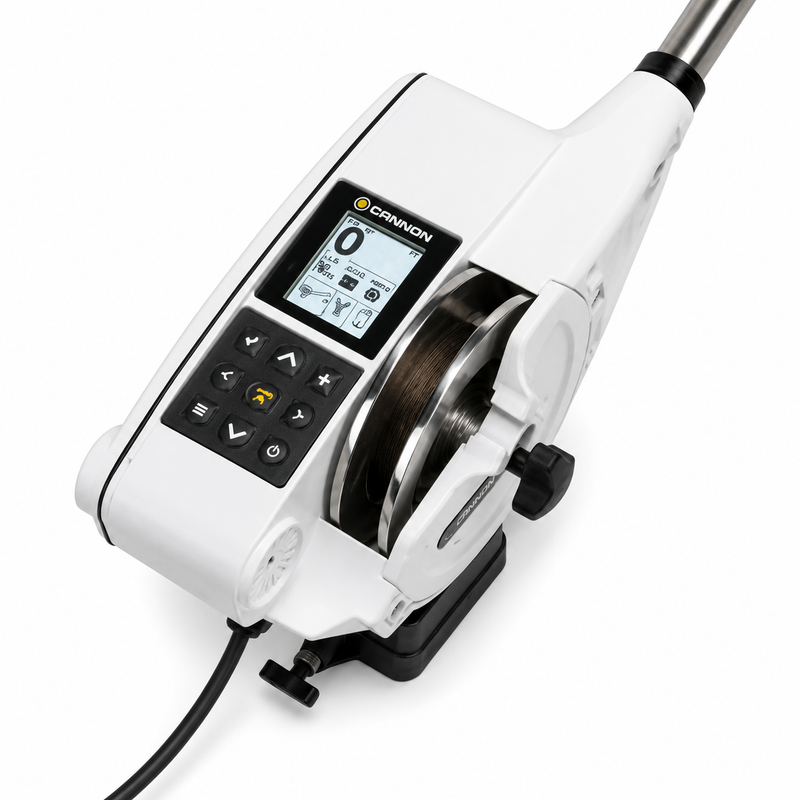

- Full-colour 3.5-inch LCD with customizable views and day/night settings
- Wireless networking for up to four Cannon Optimum downriggers
- One-Boat Network integration with select Humminbird fish finders
- Compatible with the Cannon mobile app
- Fish Hawk X4D and Lithium Ultra System integration
- Bottom Tracking automatically maintains a selected distance from the bottom
- Depth Cycling moves the trolling weight through preset depth intervals
- Stores up to five preset depths and remembers the depth of the last catch
- Waterline Zero helps stop the weight at a selected distance below the surface
- Auto Up retrieves one or multiple connected downrigger weights
- Positive Ion Control helps neutralize fish-repelling negative electrical energy
- 316 marine-grade stainless steel telescopic boom extending from 24 to 53 inches
- Stainless steel spool with 400 feet of 150 lb stainless steel cable
- Removable side plate for convenient spool access
- 20 lb maximum downrigger-weight capacity
- One dual-axis adjustable rod holder
- Integrated trolling-weight storage hook
- Low-profile 360-degree swivel base
- Corrosion-resistant construction designed for saltwater use
- Limited lifetime warranty
Intended Use
Designed for serious freshwater and saltwater trolling where precise, repeatable depth control is essential. The Optimum TS is particularly well suited to salmon, lake trout and other species that require controlled-depth presentations, bottom-following capability or repeated movement through a defined strike zone.
Its Tournament Series stainless steel construction and marine-grade coatings make it the preferred Optimum configuration for coastal boats and vessels regularly exposed to saltwater conditions.
Product Compatibility
The Optimum TS can wirelessly network with up to four Optimum downriggers and may be controlled through:
- The downrigger's onboard keypad and LCD
- The Cannon mobile app
- Compatible Humminbird fish finders through the One-Boat Network
- Fish Hawk X4D and Lithium Ultra systems for weight-depth, temperature and speed data
Networked accessories, compatible Humminbird electronics and Fish Hawk equipment are sold separately unless specifically included with the boat or installation package.
Fitment Notice
Confirm that the selected mounting location provides adequate structural support, clearance for the 24-to-53-inch telescopic boom and room for the downrigger to rotate on its swivel base. Also verify electrical-system capacity, cable routing and compatibility with any Humminbird or Fish Hawk electronics before installation.
Part number 1902340 identifies the white Optimum Tournament Series model with stainless steel boom and spool. Do not select solely by the Optimum family name, as construction, colour and included equipment can vary between models.
When to Upgrade or Replace
Consider replacing or professionally servicing the downrigger if the motor no longer deploys or retrieves smoothly, the depth counter becomes unreliable, the cable or spool is damaged, electrical connections show corrosion, or the housing and mounting system have sustained impact damage.
Inspect the stainless steel cable, line terminator, releases, boom, swivel base and electrical connections regularly. Frayed, kinked or damaged cable and worn line releases should be replaced before the next trip rather than operated under load.
Installation Notes
Install the downrigger on a solid, level and properly reinforced mounting surface. The included low-profile swivel base allows the unit to rotate for fishing, docking and storage positions, but sufficient clearance must be maintained around the boom, cable and weight.
Follow Cannon's installation instructions for electrical connections, mounting hardware and cable routing. After installation, configure Waterline Zero before normal use so the system stops the weight at the desired position below the surface. Network functions should be paired and tested with connected downriggers, the Cannon app, compatible Humminbird electronics or Fish Hawk equipment before heading offshore.
What's Included
- Cannon Optimum TS white electric downrigger
- Stainless steel spool
- 400 feet of 150 lb stainless steel cable
- 316 marine-grade stainless steel telescopic boom
- Universal mounting base
- Low-profile swivel base
- One dual-axis adjustable rod holder
- Line terminator
- Two Offshore Saltwater Line Releases
- Manual crank handle
- Mounting hardware
Alternate/Superseded Part Numbers
- Cannon product code: 1902340
- UPC: 0029402046898
No alternate or superseding Cannon part number should be assumed without confirming the current manufacturer catalogue.
Parts Desk Insight
The Optimum TS is the right choice when standard downrigger control is not enough. Its real advantage is the ability to automate depth changes, follow bottom contours and control several downriggers from one location. For saltwater installations, the stainless steel boom and spool also make this model the better long-term choice over a standard freshwater configuration.
