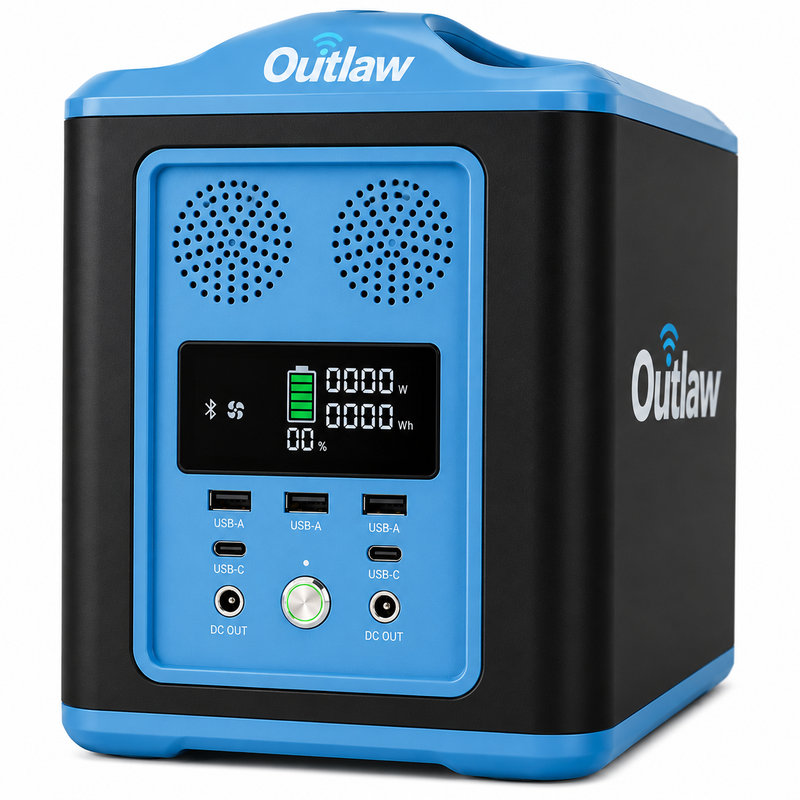

RELiON Outlaw 1072S LiFePO4 Portable Power Station – OUTLAW-US

Product Description

The RELiON Outlaw 1072S is a portable lithium power station built around a 12.8-volt, 72Ah lithium iron phosphate battery. It provides 921.6Wh of stored energy and incorporates a 1,000-watt pure sine wave inverter capable of supplying up to 2,000 watts of surge power. Multiple AC, USB and 12-volt outputs allow the Outlaw to operate electronics, refrigeration, lighting and other compatible equipment without the noise, exhaust or maintenance associated with a petrol generator.

Key Features

• 12.8V, 72Ah internal LiFePO4 battery
• 921.6Wh total energy capacity
• 1,000-watt continuous pure sine wave inverter
• 2,000-watt peak surge output
• More than 3,500 cycles at 80% depth of discharge
• Integrated Battery Management System
• Large LCD operating display
• Multiple AC, USB and 12-volt output connections
• Rechargeable from AC power or compatible solar panels
• Silent operation with no fuel, fumes or engine maintenance
• Compact portable enclosure
• Approximately 32 lb total weight
• One-year manufacturer warranty

Intended Use

The Outlaw 1072S is suitable for portable and backup-power applications such as:

• Boats and marina use
• Camping and overlanding
• Cabins and remote worksites
• Emergency household backup
• Recreational vehicles
• Mobile service operations
• Outdoor events
• Off-grid electronics and appliances

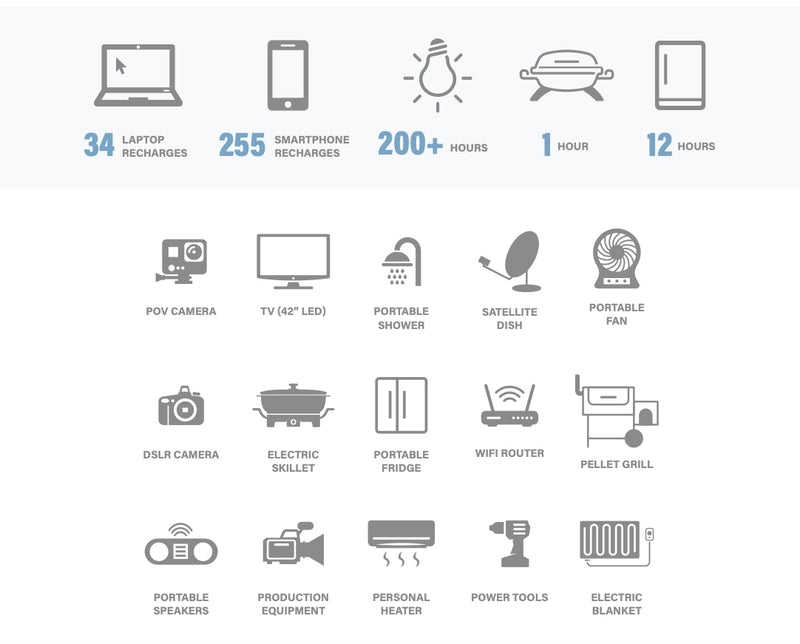

Compatible equipment may include:

• Laptop computers
• Smartphones and tablets
• Televisions
• Electric coolers and refrigerators
• Lighting
• Radios and communications equipment
• Fans
• Pellet grills
• CPAP machines, subject to manufacturer requirements
• Other equipment drawing less than the available inverter output

The combined continuous AC load must remain below 1,000 watts, while brief startup demand must remain within the 2,000-watt surge rating.

Battery Specifications

• Battery chemistry: Lithium iron phosphate
• Nominal voltage: 12.8 volts
• Nominal capacity: 72Ah
• Stored energy: 921.6Wh
• Rated cycle life: More than 3,500 cycles at 80% depth of discharge
• Battery management: Integrated BMS
• Maintenance requirements: None
• Battery construction: Permanently integrated within the portable power station

AC Output

• AC receptacles: Two
• AC output voltage: 110 volts
• AC frequency: 60 Hz
• Continuous inverter output: 1,000 watts
• Peak surge output: 2,000 watts
• Maximum stated AC current: 9.09 amps
• Output waveform: Pure sine wave

Pure sine wave output provides cleaner AC power than a modified sine wave inverter and is better suited to sensitive electronics, audio equipment, variable-speed devices and electronically controlled appliances.

USB Outputs

The Outlaw includes multiple USB connections for charging compatible portable electronics:

• One standard USB-A output
• Two USB-A Quick Charge 3.0 outputs
• Two USB-C outputs
• Standard USB output: 5V, 2.1A
• Quick Charge output ranges:
  • 5–6V at 3A
  • 6–9V at 2A
  • 9–12V at 1A
• USB-C Power Delivery ranges:
  • 5–6V at 3A
  • 6–9V at 2A
  • 9–12V at 1A

Actual charging speed depends on the connected device, cable and supported charging protocol.

12-Volt DC Outputs

• Two 12V barrel-style DC outputs
• Maximum barrel-output current: 7 amps per port
• One 12V automotive accessory outlet
• Maximum accessory-outlet current: 10 amps
• One EC5-style 12V quick-connect output
• Maximum quick-connect output: 30 amps
• One four-pin DC charging receptacle

Confirm the voltage, polarity and current requirements of any accessory before connecting it.

LCD Display

The integrated LCD screen provides operating information including:

• Remaining battery capacity
• Estimated remaining runtime
• Incoming charging wattage
• Outgoing load wattage
• Active output status
• Charging status

Remaining-runtime estimates will change as connected loads are added or removed.

Charging Specifications

The Outlaw can be recharged using:

• The supplied AC wall charger
• A compatible solar-panel system
• A suitable 15–25V DC charging source

Charging input specifications:

• DC charging voltage: 14.6 volts
• Maximum DC charging current: 10 amps
• Supported solar input: 15–25 volts
• Maximum solar input: 160 watts

Solar charging time depends on panel output, available sunlight, temperature, panel angle and the power station’s starting state of charge.

Battery Management System Protection

The integrated BMS provides protection against:

• Battery undervoltage
• Battery overvoltage
• Excessive current
• Short circuits

These protections help safeguard the internal battery but do not replace correct load sizing, ventilation or inspection of connected cables and equipment.

Dimensions and Weight

• Length: 14.48 inches
• Width: 7.87 inches
• Height: 10.82 inches
• Weight: 31.96 lb / approximately 14.5 kg

Fitment Notice

The OUTLAW-US designation refers to the North American version equipped with 110-volt, 60Hz AC output.

This product is a complete portable power station, not a standalone drop-in 12-volt battery. Its internal battery, inverter, display, charging system and output connections are integrated into one enclosure.

Do not attempt to install the Outlaw as a replacement engine-starting, trolling-motor or permanently wired house battery.

Marine Use Notes

The Outlaw can provide convenient portable power aboard a boat, but it should be stored and operated in a dry, ventilated location protected from:

• Direct spray
• Rain and washdown water
• Bilge water
• Fuel vapours
• Battery gases
• Excessive heat
• Physical impact
• Blocked ventilation openings

It is not identified as a permanently installed, ignition-protected marine power system. Do not install or operate it in petrol-engine compartments or other areas where flammable vapours may accumulate.

Operating Notes

Before connecting equipment:

• Confirm its running and startup wattage
• Confirm that the total AC load remains below 1,000 watts
• Inspect plugs and cables for damage
• Ensure the power station has adequate ventilation
• Confirm sufficient remaining battery capacity
• Verify the correct DC voltage and polarity for 12-volt accessories

Switch off unused output sections to reduce standby consumption and extend runtime.

When This Product Needs Replacement

Inspect or discontinue use if the power station:

• No longer accepts or holds a useful charge
• Shuts down repeatedly under correctly sized loads
• Has a swollen, cracked or distorted enclosure
• Shows damaged AC or DC receptacles
• Has loose or heat-damaged connectors
• Produces smoke, unusual odour or excessive heat
• Has been submerged or exposed to significant water intrusion
• Displays persistent battery or inverter faults
• Provides substantially reduced runtime despite being fully charged

The internal lithium battery should only be serviced according to RELiON-authorised procedures.

Included Components

The standard North American package is intended to include:

• RELiON Outlaw 1072S portable power station
• AC wall charger
• Operating documentation

Package contents can vary by production date or distributor, so confirm included charging cables and accessories for the specific unit being purchased.

Alternate Part Numbers

• Manufacturer model: Outlaw 1072S
• Manufacturer reference: OUTLAW-US
• Product name: RELiON Outlaw Portable Power Station
• Battery capacity reference: 12.8V 72Ah
• Energy-capacity reference: 921.6Wh

Parts Desk Insight

The Outlaw is best understood as a portable generator alternative rather than a conventional 12-volt battery. Its internal 72Ah LiFePO4 battery is paired with a pure sine wave inverter, charging electronics and multiple output ports, making it ready to power equipment without requiring a separate inverter or permanent battery installation.
