Mercury Quicksilver 18785T Cylinder Head Gasket — V-135 / V-150 V6 Outboard

Mercury Quicksilver 18785T — Cylinder Head Gasket, V-135 / V-150 V6 Outboard

Overview

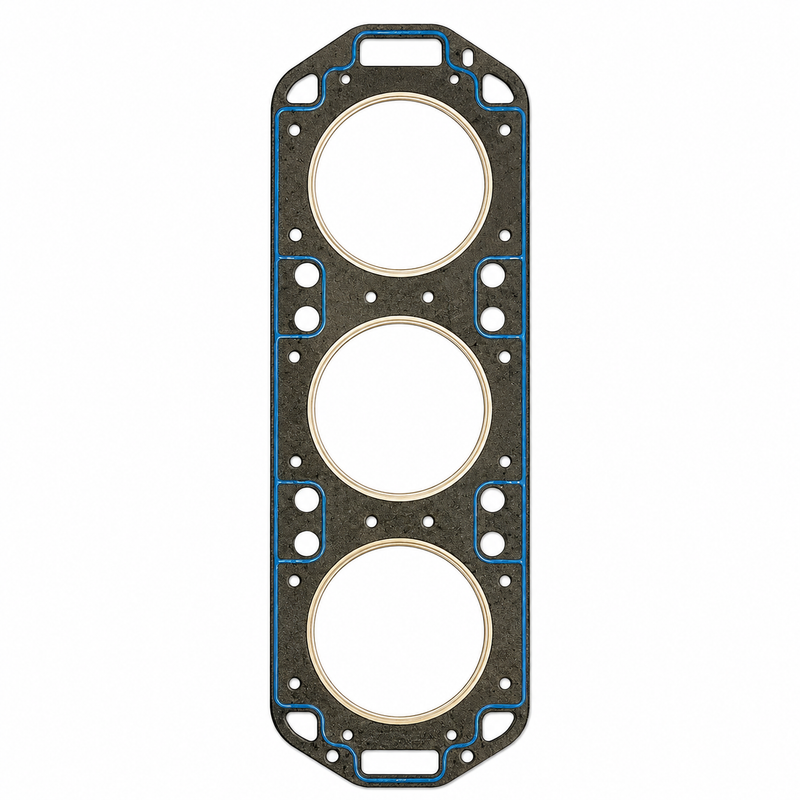

The Mercury Quicksilver 18785T is a genuine OEM cylinder head gasket for selected Mercury V6 outboard powerheads. It seals the joint between the cylinder head and powerhead block, maintaining combustion pressure and preventing coolant or water intrusion into the combustion chamber. Mercury parts diagrams place 18785T directly at the cylinder head / block interface in V-135 and V-150 V6 applications within the specified serial ranges.

Important: Head gaskets are highly application-specific. Combustion-ring diameter, coolant passage layout, thickness, and sealing pattern must all match the exact block and cylinder-head combination. A gasket that looks similar can cause compression loss or cooling problems if it is not the correct part for that specific powerhead. Always confirm by exact model and serial number before ordering.

Supersession

• Current part number: 18785T (service format: 27-18785T)
• Supersedes: 187851
• Supersedes: 187853
• If your service records or parts diagram show 187851 or 187853, 18785T is the correct current OEM replacement.
• Related V6 head gasket variants include 18786T and 822844T05 — these apply to different XR, Magnum, EFI, or Jet configurations within the same engine family. Confirm by exact model and serial number before substituting.

Compatible Applications

• Mercury V-135 — serial range 0C239553–0G960499
• Mercury V-135 — serial range 0G960500–0T178499
• Mercury V-150 — serial range 0C239553–0G960499
• Always confirm by exact model and serial number — related Mercury V6 engines (XR, Magnum, EFI, Jet variants) can use different head gaskets depending on configuration

When to Replace

• Any time the cylinder head is removed — head gaskets should never be reused once the head has been lifted
• Signs of combustion gas leakage at the head/block joint (bubbles in the cooling system, white exhaust smoke)
• Water or coolant intrusion into the combustion chamber
• Compression loss traced to the head gasket rather than rings or valves
• Visible gasket deterioration, erosion at coolant passages, or blown combustion ring

Installation Notes

• Do not reuse the original head gasket — replace with a new OEM gasket every time the cylinder head is removed
• Thoroughly clean both the cylinder-head and block mating surfaces before installation — gasket residue, corrosion, or debris will cause leaks
• Inspect both mating surfaces for warping, erosion, or corrosion pitting; a distorted head or block surface must be machined flat before a new gasket will seal reliably
• Install the gasket in the correct orientation as shown in the Mercury service manual for the exact model and serial range
• Tighten cylinder-head fasteners in the specified sequence and in torque stages per the Mercury service manual — incorrect torque sequence is one of the most common causes of head gasket failure on reinstallation
• Replace all head fasteners if the service manual specifies torque-to-yield bolts (one-time use)

Technical FAQ

• Can I reuse my original head gasket if it looks undamaged? No. Head gaskets deform under clamping load during initial installation and will not seal reliably if reused. Always install a new OEM gasket whenever the cylinder head is removed.
• What is the difference between 18785T, 18786T, and 822844T05? These are different head gaskets within the Mercury V6 outboard engine family, used on different configurations (XR, Magnum, EFI, Jet) and serial ranges. They are not interchangeable — confirm the exact correct part number using your model and serial number in the Mercury parts catalog before ordering.
• My engine is overheating after a head gasket replacement — what should I check? Verify that the head was not warped — a distorted mating surface will cause a new gasket to fail immediately. Also confirm all coolant passages were clear of debris before reassembly, and that the head fasteners were torqued in the correct sequence and to the correct specification.
• How do I know if my head gasket has failed without disassembly? Common signs include white smoke from the exhaust, unexplained coolant loss, bubbles in the cooling system reservoir, compression loss in one or more cylinders, or oil/water contamination. A cylinder leakdown or compression test can help confirm head gasket failure before disassembly.

Parts Desk Insights

Best Use Case: This gasket is the correct choice for a cylinder head service on Mercury V-135 or V-150 V6 outboards within the confirmed serial ranges. The most common scenario is during a powerhead rebuild, overheating repair, or whenever the cylinder head has been removed for inspection or service. Because head gaskets must never be reused once the head is lifted, ordering the replacement gasket before teardown is standard practice.

Common Issues: The most frequent problem is ordering a head gasket by engine displacement alone without confirming the exact model variant and serial range. The Mercury V6 outboard family includes XR, Magnum, EFI, and Jet configurations that use different head gaskets — including 18786T and 822844T05 — that are not interchangeable with 18785T. The second common issue is head gasket failure after reinstallation due to a warped mating surface that was not inspected or machined before reassembly. A new gasket on a distorted surface will not hold.
