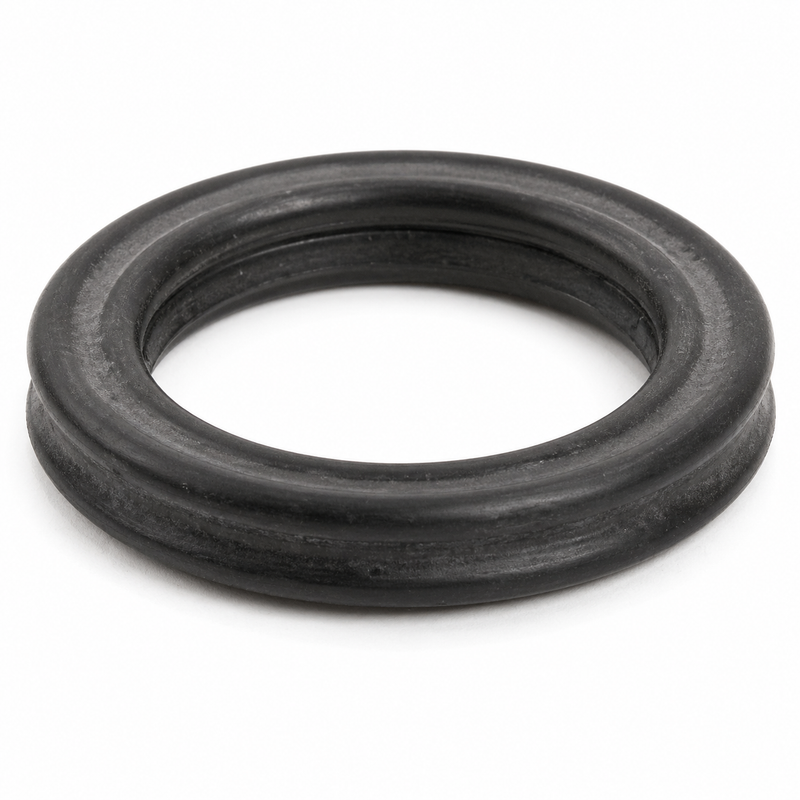

Mercury / MerCruiser Quicksilver Quad Ring 20295
Part Number: 20295 | Service Format: 25-20295 | Size: 1.725 in. × 0.210 in. | Type: Quad ring | GTIN: 745061573154
Genuine Mercury / MerCruiser OEM quad-profile sealing ring used in selected MerCruiser and Mercury Racing closed-cooling / crossover assemblies. Mercury parts references identify 20295 specifically as the crossover-to-heat-exchanger seal on applicable high-performance engines, with two quad rings required per applicable assembly. A quad ring has a four-lobed cross-section that provides more sealing contact area than a standard O-ring of the same nominal size — do not substitute a round O-ring of the same dimensions. No confirmed newer OEM superseding number has been identified.
Specifications
- Brand: Mercury / MerCruiser / Quicksilver
- Part Number: 20295
- Service Format: 25-20295
- Type: Quad ring (X-ring / four-lobed cross-section)
- Outside Diameter / ID Reference: 1.725 in.
- Cross-Section: 0.210 in.
- Packed Dimensions: ~2.13 in. × 2.13 in. × 0.25 in.
- Weight: ~0.01 kg per unit
- GTIN / UPC: 745061573154
- System: Closed-cooling crossover / heat-exchanger sealing circuit
- Typical Quantity per Assembly: 2
Compatible Applications
Fitment must be confirmed against the Mercury parts diagram for your exact engine model, cooling-system configuration, and serial number. Mercury used several different seals in the same closed-cooling assembly area — the diagram part number is the only reliable match.
- Mercury Racing 520
- Mercury Racing 525 EFI — closed-cooling heat-exchanger / crossover assembly (qty 2)
- Mercury Racing 540
- Mercury Racing 565 EFI
- Mercury Racing 600 SCi
- Mercury Racing 662 SCi
- Mercury Racing 700 SCi
- MerCruiser 8.2L MAG — closed-cooling crossover assembly (verify by serial number)
- MerCruiser 8.2L MAG H.O. — closed-cooling crossover assembly (verify by serial number)
- MerCruiser 8.2L Inboard EC (selected serial ranges — verify by diagram)
Diagram Position & Assembly Context
On 525 EFI and 8.2L MAG closed-cooling systems, Mercury parts diagrams show the following seals in the same heat-exchanger / crossover area. These are separate, non-interchangeable parts — confirm each by its diagram position before ordering:
- 20295 — Quad Ring 1.725 × .210 in. — qty 2 — crossover-to-heat-exchanger seal
- 30529 — O-Ring 1.925 × .103 in. — separate position in the same assembly
- 8071341 — Thermostat seal — separate position
- 8M0039163 — Heat-exchanger O-ring — separate position
When to Replace
- The crossover or heat-exchanger joint is being opened for any reason
- Coolant seepage is present at the crossover fitting
- The ring is flattened, permanently compressed, cut, nicked, hardened, swollen, or cracked
- Best practice: replace all seals in the assembly during any major cooling-system service — reusing a compressed seal is a common source of post-service leaks
Installation Notes
- Clean the quad-ring groove and all mating surfaces thoroughly before installing the new seal
- Seat the quad ring evenly in the groove — do not twist, pinch, or roll it during assembly
- Lubricate with the coolant-compatible lubricant or sealant specified in the Mercury service manual for this assembly
- Verify both 20295 quad rings are correctly seated before closing the crossover / heat-exchanger joint
- Do not substitute a standard round O-ring — the quad-ring profile is specified for this sealing position
Related Parts & Service Items
- Mercury MerCruiser Quicksilver Thermostat Housing Gasket 806871
- MerCruiser Thermostat Cover Housing 8M0061068 — 454 / 502 Big Block
- MerCruiser Thermostat 991551
- Mercury Antifreeze -100°F 1 Gallon — 8M0073203 — for closed-cooling system service
- Mercury MerCruiser Quicksilver O-Ring 201951 — 0.487 × 0.103 in. — related OEM sealing ring
Parts Desk Insights
Best use case: 20295 is the right seal when you are opening the crossover-to-heat-exchanger connection on a closed-cooling MerCruiser or Mercury Racing engine. Order two — the diagram calls for one on each side of the fitting, and having both on hand before you start the job means no delays mid-service.
Common customer issue: Confusing 20295 with one of the other seals that sit nearby in the same assembly — particularly 30529 (a round O-ring, different size) or 8M0039163 (the heat-exchanger O-ring). They can look similar out of context, but each seats in a specific groove and is not interchangeable with the others. The closed-cooling diagram for your exact engine is the definitive reference — if you need help reading it, our parts desk can confirm which seal goes where before you order.
