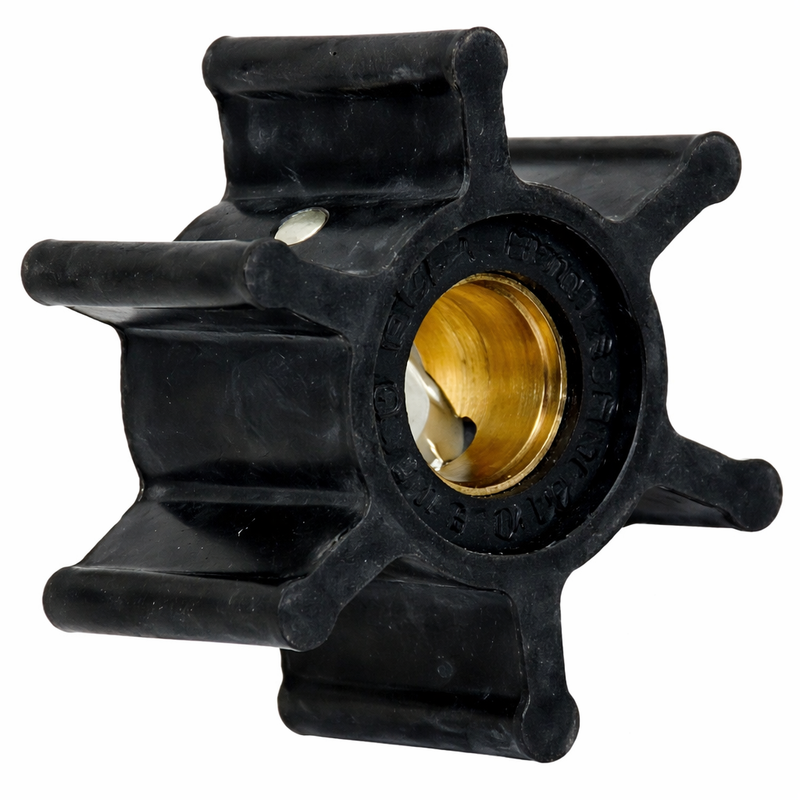

Johnson Pump 09-806B-1 Impeller Kit
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Johnson Pump 09-806B-1 Impeller Kit is a complete raw water pump service kit designed for Johnson F35 series pumps used in marine engine cooling systems. This kit includes a precision-molded MC97 neoprene impeller along with sealing components and lubricant to restore proper water flow and ensure reliable engine cooling.
Built with a durable marine-grade neoprene compound and a brass hub with a slotted pin-drive shaft, this impeller delivers excellent flexibility, long service life, and consistent performance in both freshwater and saltwater environments.
This is a widely used compact diesel impeller, commonly found in Volvo Penta, Yanmar, Bukh, and small marine diesel engines.
Key Features
- Genuine Johnson Pump impeller kit
- MC97 marine-grade neoprene / EPDM construction
- 6-blade flexible impeller design
- Brass hub with slotted pin-drive shaft
- Designed for efficient cooling flow and durability
- Includes gasket and O-ring for full service
Engine Compatibility
Volvo Penta Marine Engines
Common applications include:
- MD1 / MD2 / MD3
- MD6 / MD7
- MD21 / MD22
- 2001 / 2002 / 2003 series
- AQ / AQD series engines
Yanmar Marine Diesel Engines
- 1GM / 2GM / 3GM series
- YSM / YSB / YSE series
- SB8 / SB12 engines
Bukh Marine Engines
- DV10
- DV20 / DV20M
Perkins Marine Engines
- Various small diesel applications
- Cross reference fitment
Onan Marine Generators
- Generator cooling systems using Johnson pumps
Other Diesel Applications
- Farymann diesel engines
- Lombardini / Nanni
- Iveco Aifo marine engines
Johnson Pump Compatibility (Primary Fitment)
Fits Johnson F35 / F35B series raw water pumps, including:
- F35
- F35B
- F35B-8007
- F35B-8027
- Pump assemblies:
- 10-31934-1
- 10-32280-1
- 10-32388-1
- 10-32415-1
- 10-35039-1
➡️ Designed specifically for Johnson F35-series pump systems
Serial Number Fitment Notice
Fitment depends on:
- Pump model (F35 required)
- Shaft type (pin-drive / slotted shaft)
- Engine application
⚠️ Always confirm compatibility using your pump model or engine serial number before ordering.
Impeller Specifications (Fitment Critical)
- Diameter: 40 mm (1.57")
- Width: 19 mm (0.75")
- Shaft: ~9.5–12 mm pin-drive
- Blade Count: 6 blades
- Material: MC97 neoprene / EPDM
What’s Included in the Kit
- Impeller
- Pump cover gasket
- O-ring
- Lubricant (varies by kit version)
When This Part Needs Replacement
Replace the impeller if you notice:
- Reduced or no cooling water flow
- Engine overheating
- Cracked, missing, or stiff vanes
- Reduced performance under load
Recommended service interval: every 100 hours or annually
Installation Notes
- Lubricate impeller before installation
- Align pin-drive correctly during install
- Install with correct vane direction
- Replace all seals and gaskets
- Inspect pump housing and wear plate
Alternate / Superseded Part Numbers
OEM Cross References
- Johnson Pump: 09-806B-1 / 09-806B
Major Cross References
- Volvo Penta: 3586494, 876689, 803729, 875807
- Yanmar: 104211-42070
- Perkins: 24880272 / 24990272
- Onan: 132-0859
- Vetus: IMP00501
Aftermarket Cross References
- Jabsco: 4528-0001-P / 4528-0003-P
- Ancor: 2043
Shipping
Shipping: Ships same or next day for fast Canada wide shipping. ⚓
💡 Parts Desk Insight
The 09-806B-1 is easy to mix up with the 09-808B-1—but this one is smaller (40mm) and uses a pin-drive hub, not a spline. That detail is the quickest way to avoid a wrong order 👍
