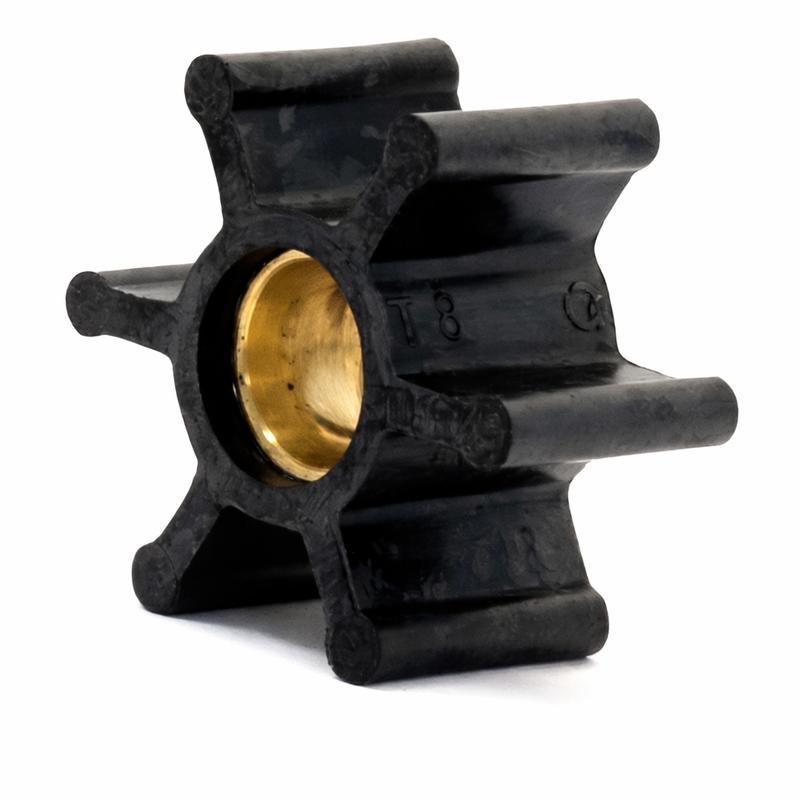

Johnson Pump 09-808B-1 Impeller Kit
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Johnson Pump 09-808B-1 Impeller Kit is a complete raw water pump service kit designed for Johnson F35 series pumps used in marine engine cooling systems. This kit includes a precision-molded MC97 neoprene impeller along with sealing components to restore proper water flow and ensure reliable cooling performance.
Built with a durable marine-grade neoprene compound and a brass hub with a slotted pin-drive shaft, this impeller provides excellent flexibility, long service life, and dependable operation in both freshwater and saltwater environments.
This is a widely used small-frame impeller, commonly found in Volvo Penta saildrives, Westerbeke engines, and compact diesel systems.
Key Features
- Genuine Johnson Pump impeller kit
- MC97 marine-grade neoprene / EPDM construction
- 6-blade flexible impeller design
- Brass hub with slotted pin-drive shaft
- Designed for maximum flow and durability
- Includes gasket and O-ring (kit version dependent)
Engine Compatibility
Volvo Penta Marine Engines
Common applications include:
- 120S saildrive series
- 2001 / 2002 / 2003 series
- MD series (MD1, MD2, MD3, MD5, MD6, MD7, MD11, MD17)
Westerbeke Marine Engines
- BEG / SBEG
- WMD
- BCD / BCDT
- BCGA / SBCG / BCGC / BCGB
Universal Marine Engines
- Various small diesel inboard applications
Other Diesel Engine Applications
Common across compact diesel platforms including:
- Bukh
- Yanmar (select pump setups)
- Kubota-based marine engines
- Lombardini / Farymann / Nanni
Johnson Pump Compatibility (Primary Fitment)
Fits Johnson F35 / F35B series raw water pumps, including:
- F35
- F35B
- F35B-8007
- F35B-8027
- K34A / K34M
- Threaded and slip port variants
➡️ Designed specifically for Johnson F35-series pump systems
Serial Number Fitment Notice
Fitment depends on:
- Pump model (F35 required)
- Shaft type (pin-drive / slotted shaft)
- Engine application
⚠️ Always confirm compatibility using your pump model or engine serial number before ordering.
Impeller Specifications (Fitment Critical)
- Diameter: 1.57–1.58" (40 mm)
- Width: 0.75" (19 mm)
- Shaft: 12 mm (0.47") pin-drive
- Blade Count: 6 blades
- Material: MC97 neoprene / EPDM
What’s Included in the Kit
- Impeller
- O-ring
- Gasket (varies by kit version)
When This Part Needs Replacement
Replace the impeller if you notice:
- Reduced or no cooling water flow
- Engine overheating
- Cracked, missing, or stiff vanes
- Reduced performance under load
Recommended service interval: every 100 hours or annually
Installation Notes
- Lubricate impeller before installation
- Install with correct vane direction
- Ensure pin-drive alignment is correct
- Replace all seals and gaskets
- Inspect pump housing for wear
Alternate / Superseded Part Numbers
OEM Cross References
- Johnson Pump: 09-808B-1 / 09-808B
Major Cross References
- Volvo Penta: 875583-7, 833995, 3586496, 21951342
- Westerbeke: 032620, 46622, 46120, 42026
- Vetus: IMP00601
Aftermarket Cross References
- Jabsco: 22405-0001
- Sierra: 18-3076
- Mallory: 9-45709
- CEF: 500121
Shipping
Shipping: Ships same or next day for fast Canada wide shipping. ⚓
💡 Parts Desk Insight
This is one of the most common small Johnson impellers used in Volvo saildrive setups. The key identifier is the 6-blade design + 12mm pin-drive shaft—that combo instantly separates it from spline or keyed impellers 👍
