Sherwood 09959K Impeller Kit
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

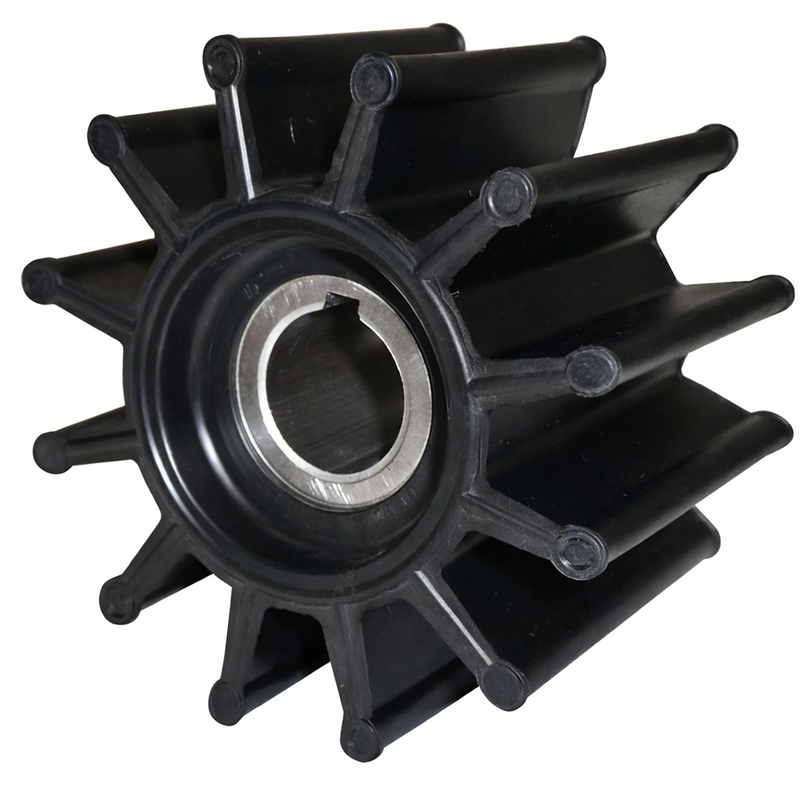

The Sherwood 09959K Impeller Kit is a complete raw water pump service kit designed for Sherwood pump systems used in marine engine cooling applications. This kit includes a precision-molded neoprene impeller along with multiple gaskets and an O-ring to ensure proper sealing and reliable water flow.
Built with a marine-grade neoprene impeller and a brass hub with a keyed drive, this kit delivers excellent durability and performance in both freshwater and saltwater environments. Replacing a worn impeller helps restore cooling efficiency, prevent overheating, and protect critical engine components.
This is a very common Sherwood impeller for gasoline inboards and light diesel applications, especially in PCM, Crusader, and Chrysler marine engines.
Key Features
- Genuine Sherwood impeller service kit
- Marine-grade neoprene rubber construction
- 12-blade flexible impeller design
- Brass hub with 5/8" keyed shaft (3/16" keyway)
- Includes multiple gaskets and O-ring
- OEM-spec fit and performance
Engine Compatibility
PCM (Pleasurecraft Marine)
- GM 5.0L / 5.7L / 8.1L
- Ford-based PCM engines (belt-driven pumps)
- Pre-2004 crank-driven systems (non-serpentine)
Crusader Marine Engines
- Interceptor series
- GM-based V6 & V8 engines
Chrysler Marine Engines
- 318 / 340 / 360
- 383 / 413 / 440
Chris-Craft Marine Engines
- Model 350 and various classic V8 platforms
Gray Marine Engines
- Fireball V8
- Compact V8 and 6-cylinder engines
Perkins Diesel Engines
- 4-108
- 4-154
Onan Marine Generators
- Diesel and gasoline generator sets using Sherwood pumps
Universal / Westerbeke
- Light plant and marine diesel applications
OMC / Volvo Penta (Pump-Based Fitment)
- Select 4, 6, and 8-cylinder engines using Sherwood pumps
Sherwood Pump Compatibility (Primary Fitment)
Fits a wide range of Sherwood pumps, including:
A03, A16
B06
D55*, D60**, D65**, D75**
F15, F85
G1, G2, G15, G20, G21, G22
G30-2, G30-2B, G65, G95-1
G9901, G9902, G9903
H5, H10
J70, J90
K75, K75B
L9920G, L9930G
M10065G, M10180G, M10210G, M10263G, M10264G, M10270G, M10280G
N10390G**, N10410G, N10460, N10470, N10510G
P10550G*, P10560G**, P10610G, P10650G, P10700G, P10710G**
Q10755G, Q10765G, Q10770G, Q10855G**
R50G, R991, R10870G, R10920G, R10925G, R10930G, R10935G**, R10955G
RPGC
* Some pumps use 09959K + 10615K combo
** Some pumps use dual 09959K impellers
Serial Number Fitment Notice
Fitment depends on:
- Pump model
- Shaft size (5/8" keyed shaft required)
- Engine application
⚠️ Always confirm compatibility using your pump model or engine serial number before ordering.
Impeller Specifications (Fitment Critical)
- Diameter: 2-7/16" (61–62 mm)
- Width: 1-1/4" (31–32 mm)
- Shaft: 5/8" keyed
- Keyway: 3/16"
- Blade Count: 12 blades
- Material: Neoprene rubber with metal hub
What’s Included in the Kit
- Impeller
- O-ring
- Multiple gaskets (varies by kit version)
When This Part Needs Replacement
Replace the impeller if you notice:
- Reduced or no cooling water flow
- Engine overheating
- Cracked, missing, or stiff vanes
- Reduced performance under load
Recommended service interval: every 100 hours or annually
Installation Notes
- Lubricate impeller before installation
- Install with correct vane direction
- Ensure key is properly seated
- Replace all included gaskets and O-rings
- Inspect pump housing and wear plate
Alternate / Superseded Part Numbers
OEM Cross References
- Sherwood: 09959K
- Replaces: 09959, 10685, 10687, 11422, 18656
Aftermarket Cross References
- Sierra: 18-3061 / 18-3084 (verify)
- JMP: Equivalent applications (verify)
- Jabsco: Cross application (verify)
Shipping
Shipping: Ships same or next day for fast Canada wide shipping. ⚓
💡 Parts Desk Insight
The 09959K is one of the most widely used Sherwood impellers in gas inboards. The key identifier is the 2-7/16" diameter + 5/8" keyed shaft—and note that some pumps run it paired with a 10615K, which is a common source of confusion 👍
