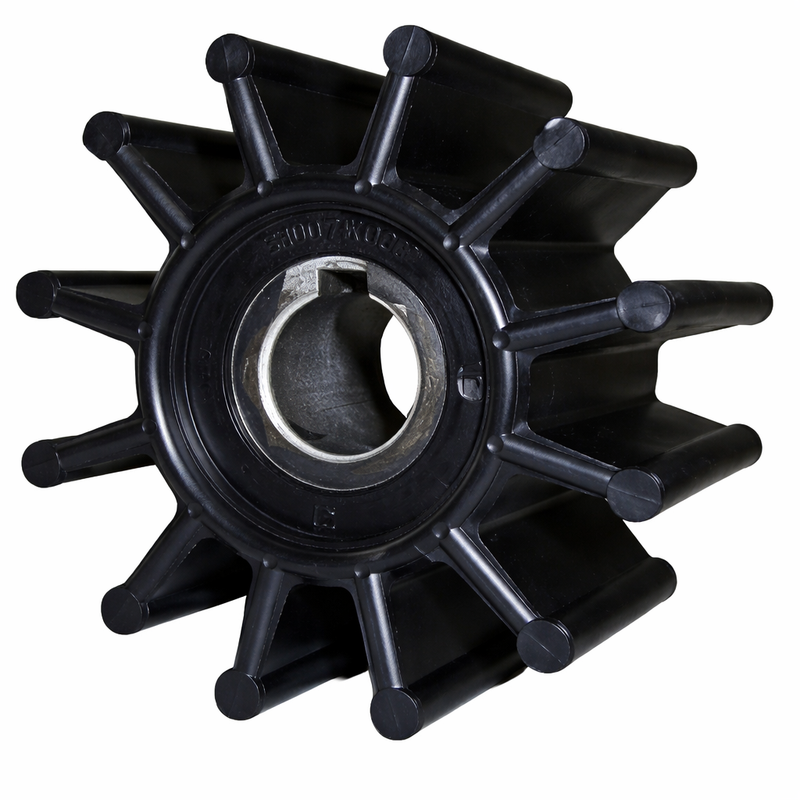

Sherwood 10077K Impeller Kit
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Sherwood 10077K Impeller Kit is a complete raw water pump service kit designed for Sherwood pump systems used in marine engines and generators. This kit includes a precision-molded neoprene impeller along with gaskets and an O-ring to restore proper cooling system performance and ensure reliable water circulation.
Constructed with a marine-grade neoprene impeller and a brass hub with a keyed drive, this kit provides durability and consistent performance in both freshwater and saltwater environments. Replacing a worn impeller helps maintain proper engine temperature and prevents overheating or internal damage.
This is a very common small-frame Sherwood impeller, widely used in gas inboards, classic marine engines, and Onan marine generators.
Key Features
- Genuine Sherwood impeller service kit
- Marine-grade neoprene rubber construction
- 12-blade flexible impeller design
- Brass hub with keyed drive (3/32" keyway)
- Includes gasket(s) and O-ring
- OEM-spec fit and performance
Engine Compatibility
Onan Marine Generators
Common applications include:
- MDKAA
- MDKAB
- MDKAL
- MDKAV
- MDKAW
- MDKAZ
- MDKBG
- MDKBK
- MDKBL
- MDKBM
- MDKBN
- MDKDK / MDKDL / MDKDM / MDKDN
➡️ Typically 6.5–10kW marine generator systems
Chris-Craft Marine Engines
- Model 283
- Model 430
- Model B
Gray Marine Engines
- Government / industrial marine engines
Westerbeke Marine Engines
- Various 4 & 6 cylinder diesel engines
- Pilot and generator applications
Universal / Palmer / Medalist Engines
- Universal marine engines
- Palmer I.H. series
- Medalist OK / OL engines
Sherwood Pump Compatibility (Primary Fitment)
Fits a wide range of Sherwood pumps, including:
- R30G / R30G-1-01
- G701 / G701-01
- G702 / G702-01
- H70 / H80
- M10095G
- M10261G
- N10360GX
- Q10805G
- Q10840
- E05 / E20
- A03 / A20
➡️ Some pump systems use two 10077K impellers (dual impeller setups)
Serial Number Fitment Notice
Fitment depends on:
- Pump model
- Shaft size (1/2" keyed shaft required)
- Engine or generator application
⚠️ Always confirm compatibility using your pump model or engine serial number before ordering.
Impeller Specifications (Fitment Critical)
- Diameter: 2-1/4" (57 mm)
- Width: 25/32" (≈20 mm)
- Shaft: 1/2" (12.7 mm) keyed
- Keyway: 3/32"
- Blade Count: 12 blades
- Material: Marine-grade neoprene
What’s Included in the Kit
- Impeller
- Gaskets (typically 2–3 depending on version)
- O-ring
When This Part Needs Replacement
Replace the impeller if you notice:
- Reduced or no cooling water flow
- Engine or generator overheating
- Cracked, missing, or stiff vanes
- Reduced performance under load
Recommended service interval: every 100 hours or annually
Installation Notes
- Lubricate impeller before installation
- Install with correct vane direction
- Ensure key is properly seated
- Replace all included gaskets and O-rings
- Inspect pump housing for wear
Alternate / Superseded Part Numbers
OEM Cross References
- Sherwood: 10077K / 10077K-SHW
Major Cross References
- Onan: 132-0375, 132-0379, 132-0498, 541-1519
- Westerbeke: 11764, 33100, 33112
- Universal: 287439
- Crusader: 727103
- Chris Craft: 16.80-90047
Aftermarket Cross References
- Sierra: 23-3310 / 23-3302 / 23-2000
- JMP: 7110 / 7110-01K
- CEF: 500166
- Mallory: 9-45716
Shipping
Shipping: Ships same or next day for fast Canada wide shipping. ⚓
💡 Parts Desk Insight
The 10077K is one of the most common small-frame Sherwood impellers, especially on generators. The key identifier is the 1/2" keyed shaft + 2-1/4" diameter—that combo makes it easy to separate from 10615K 👍
