Sherwood Impeller Kit 27000K – Raw Water Pump Service Kit
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

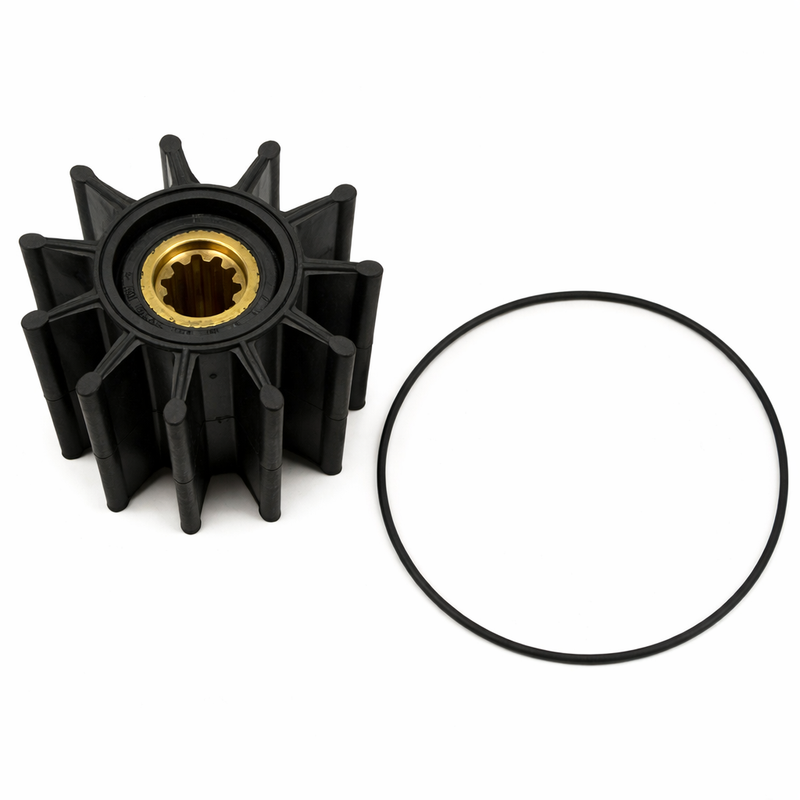

The Sherwood 27000K Impeller Kit is a complete raw water pump service kit designed to restore proper cooling system performance in marine engines equipped with Sherwood 27000 series pumps. This kit includes a precision-molded neoprene impeller along with sealing components to ensure reliable water flow and long service life.
The impeller is responsible for circulating seawater through the engine cooling system. Over time, the flexible vanes can wear, harden, or crack, reducing efficiency and increasing the risk of overheating. Replacing the impeller at recommended intervals ensures consistent cooling performance and helps protect your engine from damage.
This kit is widely used across Sherwood pump-equipped marine engines, making it a key maintenance item for dependable operation.
Key Features
- Complete Sherwood impeller service kit
- Marine-grade neoprene rubber construction
- 12-blade flexible impeller design
- Splined hub for secure fitment
- Includes gasket and O-ring for full reseal
- Maintains proper raw water flow and cooling performance
Fits Sherwood 27000 series raw water pumps, including:
- P2701-01 / P2701-02 / P2701X
- P2702-01
- P2704-01
- P2705-01
- P2706-01
- P2707-01
- P2708-01 / P2708X
- P2709-01
- P2710-01
➡️ Designed specifically for Sherwood 27000-series pump platforms
Additional Sherwood / Related Pump Fitment
Also used in some earlier / crossover pump setups:
- P1716
- P1722
- P1727
- P1730
- P1731
Engine Compatibility
Cummins Marine Diesel Engines
Common applications include:
- 6BTA 5.9
- 6CTA 8.3
- QSB 5.9
- QSB 6.7
➡️ Typically 210–450 HP marine diesel platforms
John Deere Marine Engines (via pump cross-fit)
Used on engines with Sherwood-equivalent pumps such as:
- 6067 series
- 6081 series
- 6125 series
Caterpillar Marine Engines (aftermarket / pump replacement applications)
- CAT 3116
- CAT 3126
- CAT C7
- CAT C9
OEM / Cross-Reference Part Numbers
Primary OEM
- Sherwood: 27000K
Cummins Cross Reference
- 3974456
- 3897194
- 3866493
Other Cross References
- CEF: 500181
- SMX: 27
Aftermarket Cross References
- JMP: 7608-01K
Impeller Specifications (Fitment Critical)
- Diameter: 3-5/16" (≈84 mm)
- Width: 2-7/8" (≈73–74 mm)
- Shaft: ~20 mm spline (11-tooth)
- Blade Count: 12 blades
Important Fitment Notes
- Fits only 27000-series pumps (not interchangeable with 17000 or 18000)
- Must match:
- Spline count (11-tooth)
- Shaft diameter (~20 mm)
- Common on Cummins-powered inboards and heavy-duty diesel cooling systems
💡 Parts Desk Insight
The 27000K is one of the most common mid-to-heavy-duty diesel impellers. If you're working on a Cummins 6BTA or 6CTA with a Sherwood pump, this is usually the one—but always confirm spline count, because that’s where most mis-orders happen 👍
Shipping
Shipping: Ships same or next day for fast Canada wide shipping. ⚓
💡 Parts Desk Insight
Sherwood impellers are very size-specific—even within the same pump series. Always confirm shaft size and spline type, especially on 27000-series pumps, to avoid ordering the wrong kit 👍
