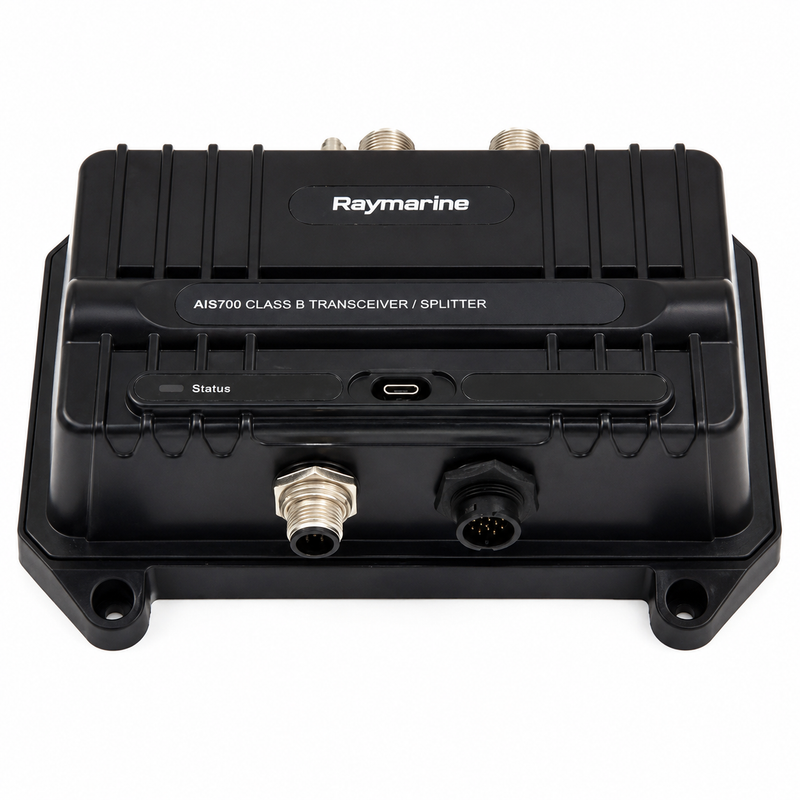

Raymarine AIS700 Class B SO-TDMA AIS Transceiver – Built-In Antenna Splitter | NMEA2000 | RAY-E70476
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Be Seen. See Everything. Class B AIS with SO-TDMA Technology.
The Raymarine AIS700 is a Class B SO-TDMA AIS transceiver that does both jobs — it receives AIS broadcasts from surrounding vessels, and it transmits your own vessel’s information so other boats and commercial traffic can see you on their displays. In busy shipping lanes, anchorages, and coastal passages, that two-way visibility is one of the most effective safety upgrades you can make to any vessel.
The AIS700 uses the latest SO-TDMA (Self-Organised Time Division Multiple Access) networking protocol — the same technology used by Class A commercial AIS systems. Compared to older CSTDMA Class B transceivers, SO-TDMA delivers longer range, faster update rates, and more reliable transmission in congested traffic areas where many vessels are transmitting simultaneously. Your position gets through when it matters most.
The built-in antenna splitter is a standout practical feature — it allows the AIS700 to share your existing VHF radio antenna, eliminating the need to run a second antenna cable or install a second antenna on the vessel. Clean installation, no extra hardware.
Fully compatible with Raymarine’s SeaTalk NG network and NMEA2000/NMEA0183, it integrates directly with Axiom and Axiom+ multifunction displays to overlay AIS targets on your chart, with vessel name, speed, course, and CPA (closest point of approach) displayed automatically. A software or hardware Silent Mode lets you disable transmission when needed — useful in security-sensitive situations or when anchored in remote areas.
Key Features
- Class B SO-TDMA transceiver — transmits and receives AIS for full two-way situational awareness
- SO-TDMA protocol — longer range, faster updates, and more reliable transmission than CSTDMA in congested areas
- Built-in antenna splitter — shares your existing VHF antenna, no second antenna required
- NMEA2000, NMEA0183, SeaTalk NG compatible — integrates with Raymarine MFDs and third-party displays
- Silent Mode — software or hardware switchable, disables transmission when needed
- PC connection for setup and diagnostics
- Compact: 6.76" W × 5.22" D
Specifications
- Class: Class B SO-TDMA
- Function: Transmit and receive AIS
- Protocol: SO-TDMA (Self-Organised TDMA)
- Antenna: Built-in splitter — shares existing VHF antenna
- Connectivity: NMEA2000, NMEA0183, SeaTalk NG, PC (USB)
- Silent Mode: Software and hardware switchable
- Dimensions: 6.76" W × 5.22" D
- SKU: RAY-E70476
Works With
- Raymarine Axiom 2 Pro 12 S Multifunction Navigation Display
- Raymarine Axiom 2 Pro 9 S Multifunction Navigation Display
- Raymarine Ray73 Fixed-Mount VHF Radio with Built-In GPS, DSC and AIS Receiver — VHF with integrated AIS receive
- Raymarine A80701 External GPS Antenna 5 m Extension Cable Kit
- Browse all Networked Marine Electronics & Accessories
🔧 Parts Desk Insights
Best use case: The AIS700 is the right choice for coastal and offshore cruisers, passage-makers, and any vessel regularly operating in or near commercial shipping traffic where being seen on other vessels’ AIS displays is a genuine safety requirement. The SO-TDMA protocol makes it the preferred Class B transceiver for high-traffic areas — busy shipping lanes, ferry routes, and commercial port approaches — where older CSTDMA Class B units can struggle to get their transmissions through reliably. The built-in antenna splitter is a significant practical advantage for vessels with a single VHF antenna run, eliminating the most common installation complication. It integrates cleanly into any Raymarine Axiom or Axiom+ system via SeaTalk NG, displaying AIS targets directly on the chart with CPA alerts.
Heads up: The AIS700 requires a VHF antenna connection to operate — the built-in splitter handles this if you have an existing VHF radio antenna installed. If you’re also considering a VHF radio upgrade, the Raymarine Ray73 includes a built-in AIS receiver (receive only, not transmit) — the AIS700 adds the transmit capability that makes your vessel visible to others. This is a special order item — please allow 4–5 business days for availability confirmation and dispatch after ordering.
