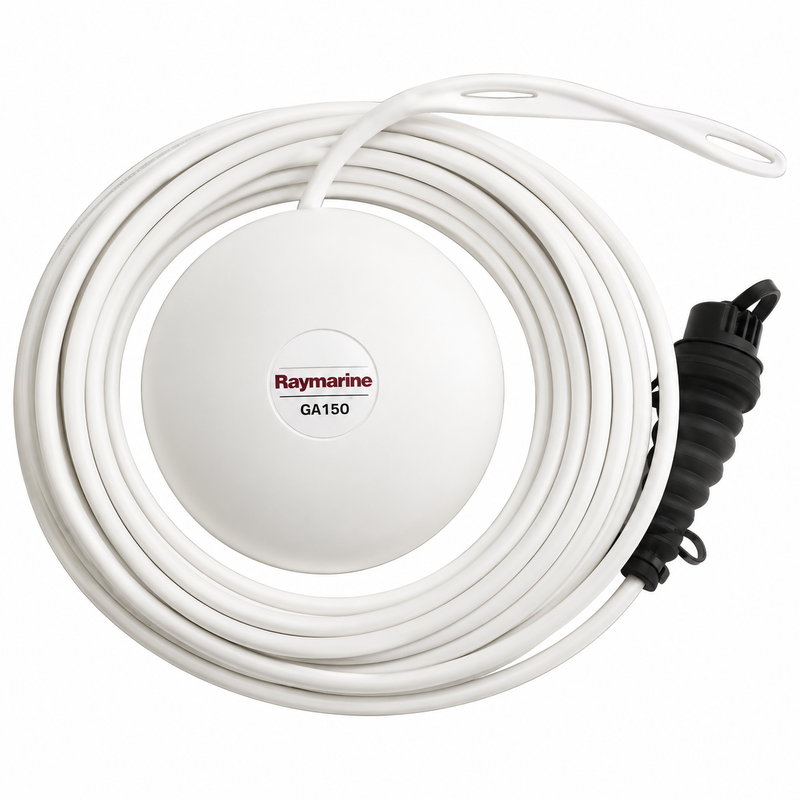

Raymarine GA150 External GPS Patch Antenna – 50-Channel GNSS | 10 m Cable | Flush or Pole Mount | RAY-A80288
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Better GPS Reception for Your Raymarine MFD — No New Sensor Required
The Raymarine GA150 is an external GPS patch antenna that improves the GNSS (GPS/GLONASS) reception of your Raymarine multifunction display’s built-in receiver. If your display is mounted below deck, under a hardtop, or in any location where the internal antenna can’t see enough sky, the GA150 lets you place a dedicated patch antenna in a clear, unobstructed location — and feed that stronger signal back to the display.
Unlike the Raystar RS150, which is a standalone GNSS sensor that replaces the display’s internal GPS, the GA150 works alongside the display’s built-in receiver — boosting its signal rather than replacing it. This makes it a simpler, lower-cost solution for installations where the display’s GPS is functional but underperforming due to mounting location.
The included 10 m cable gives you plenty of reach to position the antenna on deck, on a radar arch, or on a pole mount for the best possible sky view. Flush mount or pole mount options keep the installation clean on any vessel.
⚠️ Important: The GA150 requires the MFD’s internal GPS antenna to remain ON. It enhances the built-in receiver — it does not replace it. Confirm your display model is compatible before ordering.
Key Features
- 50-channel GPS/GNSS patch antenna — improves reception of your MFD’s built-in receiver
- GPS + GLONASS — dual constellation support for more satellites and better coverage
- 10 m cable included — plenty of reach for flexible antenna placement
- Flush or pole mount — clean installation options for any vessel
- Works with the MFD’s internal GPS — internal antenna must remain ON
- Ideal for below-deck displays, enclosed helms, and hardtop installations
Specifications
- Channels: 50
- Constellations: GPS + GLONASS
- Cable length: 10 m (included)
- Mounting: Flush mount or pole mount
- Compatible MFDs: Raymarine a9, a12, eS9, eS12 series
- Internal GPS requirement: Must remain ON
- SKU: RAY-A80288
Compatible & Related Products
- Raymarine Raystar RS150 External GPS/GNSS Sensor – 72-Channel | 10Hz | GLONASS — standalone sensor for Axiom/Axiom+ displays
- Raymarine Axiom 2 Pro 12 S Multifunction Navigation Display
- Raymarine Axiom 2 Pro 9 S Multifunction Navigation Display
- Raymarine A80701 External GPS Antenna 5 m Extension Cable Kit
- Browse all Networked Marine Electronics & Accessories
🔧 Parts Desk Insights
Best use case: The GA150 is the right solution for owners of Raymarine a9, a12, eS9, or eS12 MFDs where the display is mounted in a location with a compromised sky view — below the helm console, inside an enclosed wheelhouse, or under a fibreglass hardtop that attenuates GPS signals. It’s a cost-effective fix that avoids the need to relocate the display or upgrade to a newer MFD. The 10 m cable gives enough reach to get the patch antenna up on the radar arch, coachroof, or any clear deck surface where it can see the full sky.
Heads up: The GA150 is only compatible with the a9, a12, eS9, and eS12 MFD series — it is not compatible with Axiom, Axiom+, or Element displays. For those displays, the correct external GPS solution is the Raystar RS150, which connects via NMEA2000/SeaTalk NG and operates as a standalone sensor. The internal GPS antenna on your MFD must remain enabled for the GA150 to function — it boosts the existing receiver rather than replacing it.
