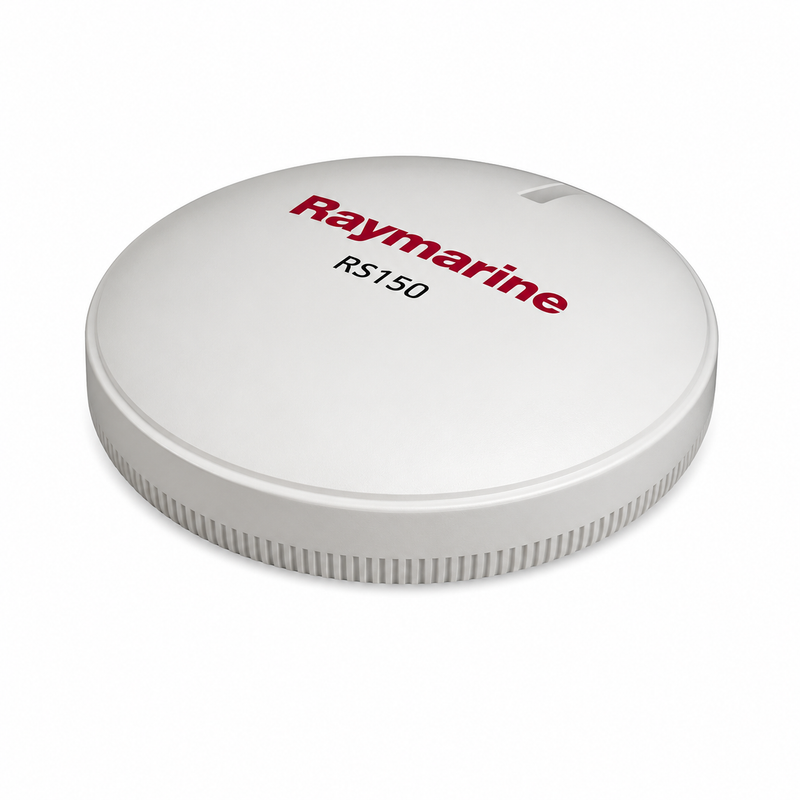

Raymarine Raystar RS150 External GPS/GNSS Sensor – 72-Channel | 10Hz | GLONASS | NMEA2000

Precision GPS Position for Your Raymarine System — Fast, Accurate, Low Power

The Raymarine Raystar RS150 is a high-performance external GPS/GNSS sensor designed to deliver fast, accurate position data to Raymarine multifunction displays, chartplotters, and AIS transceivers. Where a display’s internal GPS antenna may be compromised by mounting location, deck obstructions, or interference from other electronics, the RS150 gives you a dedicated, remotely mounted sensor positioned for the best possible sky view — and the position accuracy that follows.

With 72 channels and 10Hz position updates, the RS150 acquires satellites quickly and tracks position changes ten times per second — noticeably more responsive than standard 1Hz GPS sensors for fast-moving vessels or precision navigation. It supports both GPS and GLONASS satellite constellations simultaneously, giving it more satellites to work with and better performance in challenging sky conditions near tall structures, cliffs, or dense rigging.

SBAS (Space-Based Augmentation System) support — including WAAS (North America), EGNOS (Europe), MSAS (Japan), and GAGAN (India) — provides differential GPS correction for sub-metre accuracy where augmentation signals are available. At just 30mA power draw, it runs continuously without meaningfully impacting your battery budget.

Connects via SeaTalk NG or NMEA2000 (using a DeviceNet adapter cable) for seamless integration with Raymarine Axiom, Axiom+, and compatible third-party displays. Designed for low-profile surface mounting or optional pole mounting for maximum flexibility in placement.

Key Features

• 72-channel GPS/GNSS receiver — fast satellite acquisition and robust tracking
• 10Hz position updates — ten times per second for responsive, accurate navigation
• GPS + GLONASS — dual constellation for more satellites and better coverage
• SBAS enabled — WAAS, EGNOS, MSAS, and GAGAN support for differential GPS accuracy
• 30mA low power consumption — always-on without battery impact
• SeaTalk NG and NMEA2000 compatible — integrates with Raymarine and third-party systems
• Surface mount or optional pole mount — flexible placement for optimal sky view

Specifications

• Channels: 72
• Update rate: 10Hz
• Constellations: GPS + GLONASS
• SBAS: WAAS, EGNOS, MSAS, GAGAN
• Power consumption: 30mA
• Connectivity: SeaTalk NG / NMEA2000 (DeviceNet adapter required)
• Mounting: Low-profile surface mount or pole mount
• SKU: RAY-E70310

Works With

• Raymarine Axiom 2 Pro 12 S Multifunction Navigation Display
• Raymarine Axiom 2 Pro 9 S Multifunction Navigation Display
• Raymarine AIS700 Class B SO-TDMA AIS Transceiver — RS150 provides GPS position feed for AIS transmissions
• Raymarine Ray73 Fixed-Mount VHF Radio with GPS, DSC and AIS Receiver
• Raymarine A80701 External GPS Antenna 5 m Extension Cable Kit
• Browse all Networked Marine Electronics & Accessories

🔧 Parts Desk Insights

Best use case: The RS150 is the right choice in three specific scenarios. First, vessels where the MFD is mounted below deck or in a location with a poor sky view — a nav station, enclosed helm, or flush-mounted display where the internal GPS antenna can’t see enough sky for reliable position. Second, any installation where GPS accuracy and update rate matter — racing sailors, fast powerboats, and anyone using the chartplotter for precision anchoring or tight-quarters navigation will notice the difference between 1Hz and 10Hz position updates. Third, AIS700 installations — the RS150 provides the GPS position feed that the AIS700 transmits to other vessels; a dedicated external sensor ensures the position data is accurate and reliable. The GLONASS dual-constellation support is particularly valuable in high-latitude sailing areas (Pacific Northwest, Alaska, Scandinavia) where GPS satellite geometry can be less favourable.

Heads up: NMEA2000 connection requires a DeviceNet adapter cable — confirm you have the correct adapter for your network before ordering. If you need to extend the cable run from the sensor to the display, the Raymarine A80701 5 m Extension Cable Kit is the correct Raymarine accessory for this purpose.
