Buck Algonquin — Prop Shaft Kit 2 in. — BUC-PSK200
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

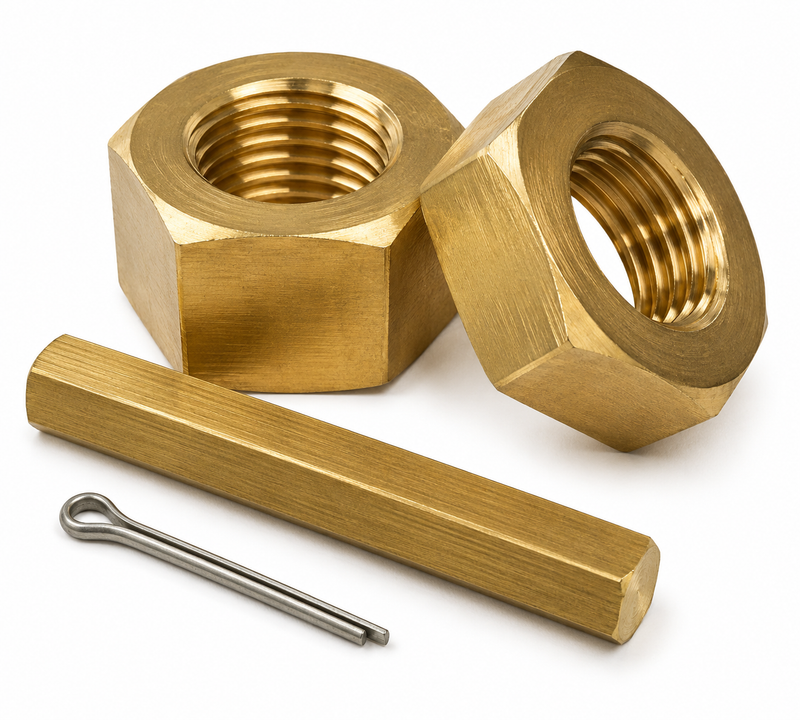

The Buck Algonquin BUC-PSK200 is a heavy-duty propeller shaft hardware kit for securing an inboard boat propeller on a compatible 2.00-inch propeller shaft. The kit includes the primary shaft nut, locking jam nut, keystock, and stainless cotter pin required for a complete propeller-end hardware installation. Built for submerged marine drivetrain service, this kit is used during propeller replacement, shaft service, haul-out repair, or drivetrain overhaul where the propeller retaining hardware should be renewed.
Key Features
- Product code: BUC-PSK200
- Application: Propeller-end shaft hardware kit
- Shaft size: For compatible 2.00-inch inboard propeller shafts
- Full nut thread size: 1-1/2"-6
- Jam nut thread size: 1-1/2"-6 thin-profile locking nut
- Keystock size: 1/2" x 4-15/16"
- Cotter pin size: 3/16"
- Hardware type: Full nut, jam nut, square drive key, and cotter pin
- Material design: Marine-grade brass/bronze shaft hardware with stainless steel cotter pin
- Country of origin: Made in U.S.A.
Application Compatibility
This kit is intended for inboard marine propeller shaft installations using a compatible 2.00-inch shaft, 1-1/2"-6 propeller-end shaft thread, and matching propeller hub keyway. It is used on conventional inboard shaft-drive vessels where the propeller is retained with a full nut, jam nut, key, and cotter pin.
Use this kit during propeller replacement, propeller re-pitching, shaft replacement, cutlass bearing service, haul-out drivetrain inspection, or underwater running gear rebuilds where the existing shaft hardware is worn, damaged, missing, or due for replacement.
Fitment Notice
Confirm the shaft diameter, shaft thread, propeller hub bore, keyway width, keyway length, and cotter-pin hole size before ordering. The BUC-PSK200 kit is for applications requiring a 1-1/2"-6 nut thread and 1/2" square key. Do not select propeller shaft hardware by shaft diameter alone, since thread size and keyway dimensions must also match the shaft and propeller hub.
When This Part Needs Replacement
Replace propeller shaft hardware when the nuts are rounded, cracked, deformed, corroded, cross-threaded, or no longer tighten cleanly. The key should be replaced if it is mushroomed, twisted, worn, loose in the keyway, or shows fretting from propeller hub movement. The cotter pin should always be replaced after removal and should not be reused.
Renewing the nut, jam nut, key, and cotter pin during propeller service helps prevent loose propeller hardware, hub movement, shaft-key damage, vibration, and loss of propeller retention.
Installation Notes
Clean and inspect the shaft taper, threads, keyway, propeller hub bore, and cotter-pin hole before installation. The propeller should seat properly on the shaft taper before final hardware tightening. Do not rely on the nuts to pull an incorrectly fitted propeller onto the taper.
Install the key so it fits cleanly in the shaft and propeller hub keyways without rocking or forcing. Use the correct tightening procedure for the vessel and shaft assembly, then secure the final nut with the supplied stainless cotter pin. If the shaft threads, taper, or keyway show damage, correct the shaft issue before installing new propeller hardware.
Alternate/Superseded Part Numbers
- Buck Algonquin: PSK200
- Marisol / product code: BUC-PSK200
- Common description: 2" Propeller Shaft Kit
- Thread reference: 1-1/2"-6
- Key reference: 1/2" x 4-15/16"
Parts Desk Insight
Propeller shaft kits must be matched by more than shaft diameter. A 2.00-inch shaft can still require a specific thread size, key size, and cotter-pin arrangement. Before ordering, confirm the existing shaft hardware and propeller hub keyway so the new nut set and key fit correctly during final propeller installation.
