Yamaha Water Pump Repair Kit 6P2-W0078-00-00 - Special Order
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Yamaha 6P2-W0078-00-00 Water Pump Repair Kit is a lower-unit water pump service kit for select Yamaha F250, F250B, LF250, F225, Z300, LZ300 4-stroke outboard applications. This kit services the raw-water pump assembly and includes the impeller, cartridge insert, cartridge outer plate, gasket, O-rings, dowel pins, bolts with washers, and woodruff key required for a proper pump rebuild.
Key Features
- Yamaha water pump repair kit
- Part number: 6P2-W0078-00-00
- Fits select Yamaha F250 / F250B 4-stroke outboards
- Also applies to listed F225, LF250, Z300, and LZ300 models
- Services the lower-unit raw-water pump assembly
- Includes impeller 6E5-44352-01-00
- Includes cartridge insert, plate, gasket, O-rings, hardware, dowel pins, and woodruff key
Application Compatibility
Fits select Yamaha outboard models including:
- F225TLR
- F250B
- F250BTUR / F250BTXR
- F250TUR / F250TXR
- F250UA / F250XA
- LF250BTUR / LF250BTXR
- LF250TUR / LF250TXR
- LF250UA / LF250XA
- Z300TUR / Z300TXR
- LZ300TUR / LZ300TXR
Use on applicable model/year or model-code ranges where the Yamaha parts diagram calls for 6P2-W0078-00-00.

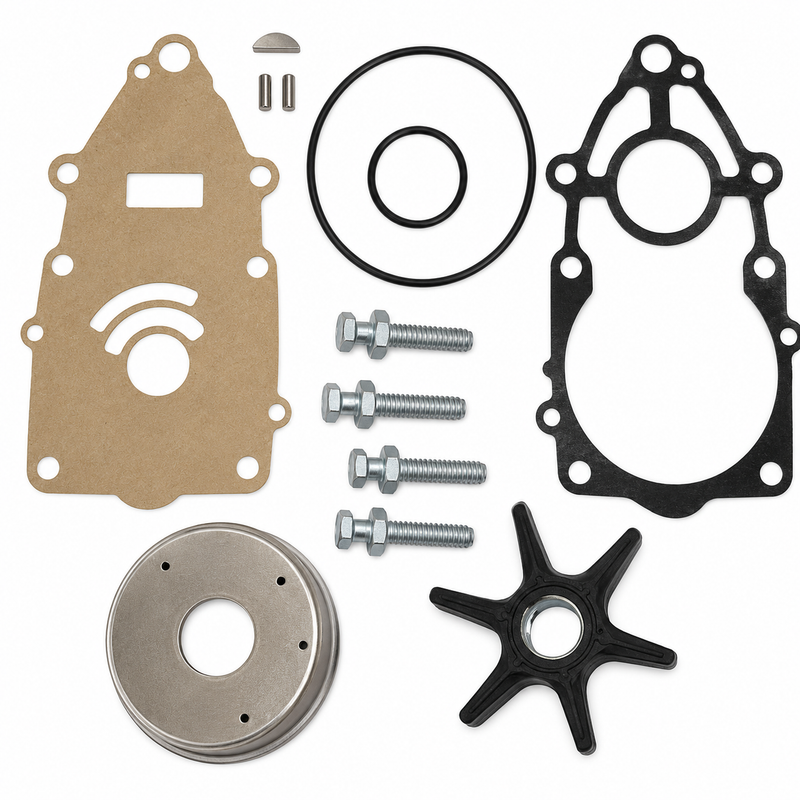

Kit Contents
- 1 Cartridge Insert — 61A-44322-02-00
- 1 O-Ring — 93210-86M38-00
- 1 O-Ring — 93210-37M67-00
- 1 Impeller — 6E5-44352-01-00
- 1 Cartridge Outer Plate — 6P2-44323-00-00
- 1 Water Pump Gasket — 60X-44315-A0-00
- 2 Dowel Pins — 93606-12019-00
- 4 Bolts with Washer — 90119-08M14-00
- 1 Woodruff Key — 90280-04M05-00
Serial Number Fitment Notice
Confirm fitment by Yamaha model code, production year, serial number, and lower-unit water pump diagram before ordering. Yamaha 225–300 HP gearcases can use different pump stack components depending on model and production range.
When This Part Needs Replacement
Replace during scheduled water pump service, when cooling-water discharge is weak, after overheating, after a dry-run event, or when the impeller, gasket, O-rings, cartridge insert, or wear surfaces show damage, hardening, grooves, or leakage.
Installation Notes
Inspect the pump housing area, driveshaft surface, water tube connection, pump cover, and lower-unit sealing surfaces during installation. Remove any broken impeller vane pieces from the cooling passages before reassembly. Install the woodruff key correctly and follow Yamaha service-manual procedure for pump stack order and gearcase reinstallation.
Alternate/Superseded Part Numbers
- Yamaha 6P2-W0078-00-00
- Common short format: 6P2-W0078-00
Parts Desk Insight
This kit is more complete than an impeller-only service because it includes the wear components and hardware needed to rebuild the water pump stack. On high-horsepower Yamaha outboards, replacing the cartridge, plate, gasket, and O-rings along with the impeller helps prevent repeat overheating issues caused by worn pump surfaces or poor sealing.
Special Order: This product is not currently in store inventory but may be available from the Manufacturer. Special Orders may take up to 2 weeks to arrive. Call the parts desk before ordering if you need a closer estimate on delivery time.
