em-trak X100 Fixed Mount VHF/DSC Radio with AIS Class B EMT-X100
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

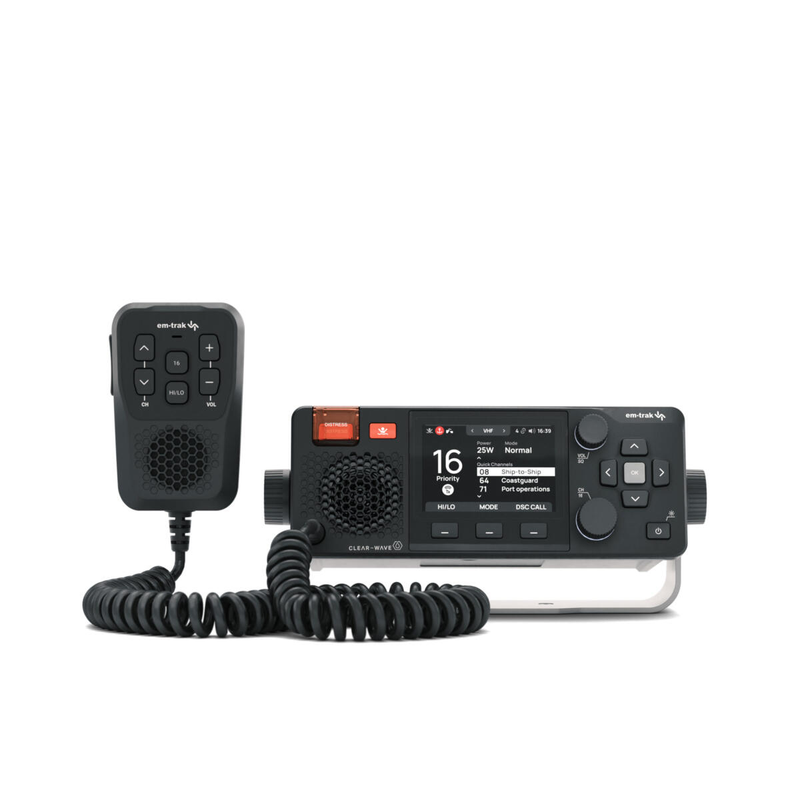

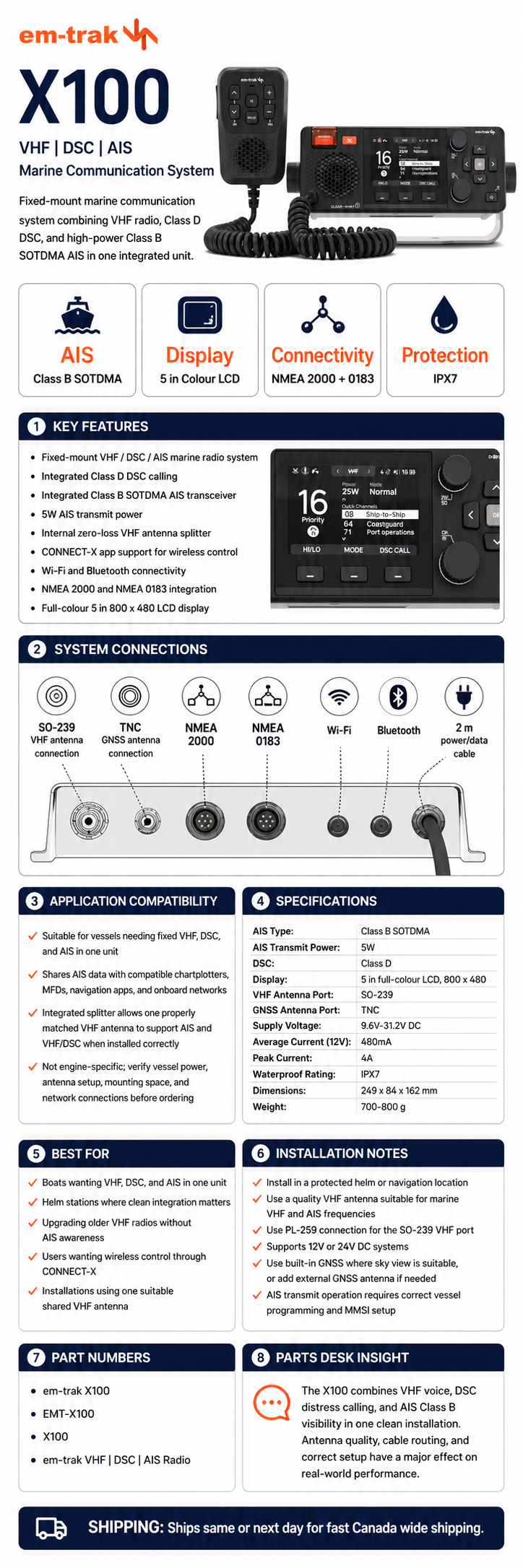

The em-trak X100 is a fixed-mount marine communication system that combines VHF radio, Class D DSC, and high-power Class B SOTDMA AIS in one integrated unit. It is designed to give boaters voice communication, DSC safety calling, AIS target awareness, and wireless onboard control through the CONNECT-X app. The X100 includes a full-colour 5" display, NMEA 2000 and NMEA 0183 integration, Wi-Fi and Bluetooth connectivity, and an internal zero-loss VHF antenna splitter so VHF/DSC and AIS can share one suitable VHF antenna.
Key Features
- Fixed-mount VHF / DSC / AIS marine radio system
- Integrated Class D DSC calling
- Integrated Class B SOTDMA AIS transceiver
- 5W AIS transmit power
- Internal zero-loss VHF antenna splitter for shared AIS and VHF antenna use
- CONNECT-X app support for wireless control from compatible phones or smartwatches
- Wi-Fi and Bluetooth connectivity
- NMEA 2000 and NMEA 0183 integration
- Full-colour 5" 800 x 480 LCD display
- SO-239 VHF antenna connection
- TNC GNSS antenna connection
- Supply voltage range: 9.6V–31.2V DC
- Average current at 12V: 480mA
- Peak current: 4A
- IPX7 ingress protection
- Approximate base unit size: 249 x 84 x 162 mm
- Approximate weight: 700–800 g
Application Compatibility
The em-trak X100 is suitable for vessels needing a fixed VHF/DSC radio with integrated AIS Class B transmit and receive capability. It can share AIS data with compatible chartplotters, MFDs, navigation apps, and onboard networks through NMEA 2000, NMEA 0183, Wi-Fi, and Bluetooth. The integrated splitter allows one properly matched VHF antenna to support both AIS and VHF/DSC functions when installed correctly.
Serial Number Fitment Notice
This is a marine electronics product, not an engine-specific part. Before ordering, confirm that the vessel has suitable power, a compatible VHF/AIS antenna setup, proper mounting space, and the required network connections for the intended installation. AIS transmit operation also requires correct vessel programming and MMSI setup according to regional marine-radio requirements.
When This Part Needs Replacement
Replace or upgrade to this unit when the boat needs integrated VHF, DSC, and AIS capability in one fixed-mount system, when an older VHF radio lacks AIS awareness, or when the current radio, AIS transceiver, display, antenna splitter, or wireless control setup no longer meets the vessel’s safety and navigation needs.
Installation Notes
Install the X100 in a protected helm or navigation location with good display visibility and access to the fist mic. Use a quality VHF antenna suitable for the marine VHF and AIS frequency range, with a PL-259 connector for the X100’s SO-239 VHF port. The unit supports 12V or 24V DC systems and includes a 2-metre power/data cable. For best GNSS performance, use the built-in GNSS where the unit has a suitable sky view, or add an external GNSS antenna when the installation location requires it.
Alternate / Superseded Part Numbers
- em-trak X100
- EMT-X100
- X100
- em-trak VHF | DSC | AIS Radio
Parts Desk Insight
The big advantage of the X100 is that it combines three major safety systems—VHF voice, DSC distress calling, and AIS Class B visibility—into one clean installation. The antenna setup matters: using a properly tuned VHF/AIS antenna and good cable routing will usually make more difference to real-world range than the radio location alone.
