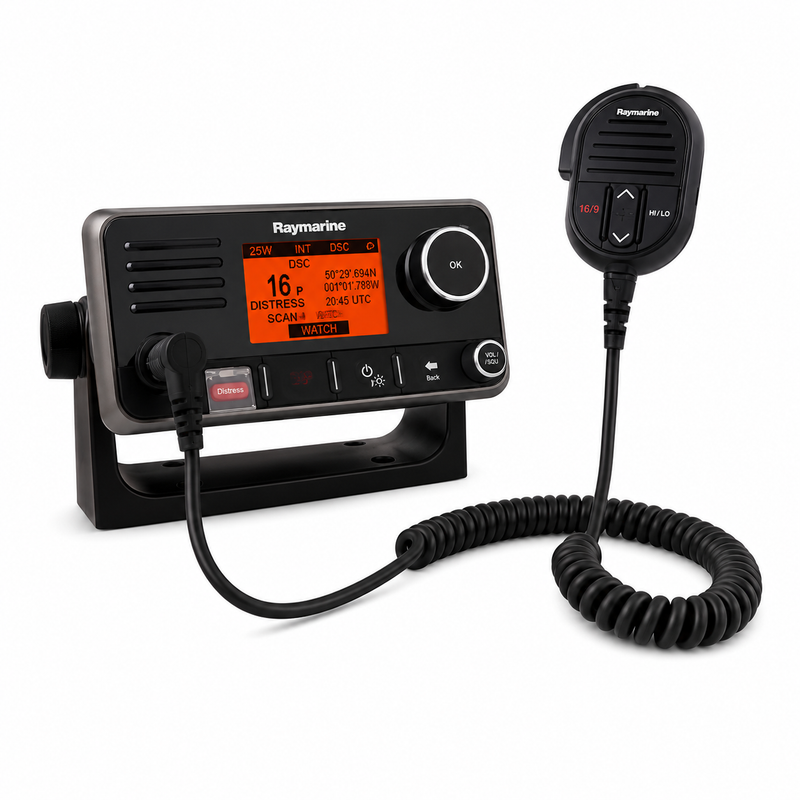

Raymarine Ray63 Fixed-Mount VHF Radio with Built-In GPS and DSC
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Raymarine Ray63 Fixed-Mount VHF Radio
The Ray63 is a full-featured, Class D DSC fixed-mount VHF marine radio with a built-in GPS/GNSS receiver, NMEA 2000 networking, and support for Raymarine’s RayMic expansion system. Designed for seamless integration into a Raymarine helm, it delivers reliable communication, accurate DSC distress positioning, and the flexibility to add a second-station handset — all in a compact, IPX7-rated panel-mount package.
Key Features
- Class D DSC with Built-In GPS/GNSS — Transmits your vessel’s GPS position automatically with every DSC distress call; no external GPS source required, though an external antenna connection is also supported
- 25W / 1W Selectable Power — Full 25W output for maximum range; 1W low-power mode for short-range communication
- NMEA 2000 & NMEA 0183 Networking — Integrates with chartplotters, autopilots, and other onboard electronics for position sharing and DSC alert routing
- RayMic Expansion — Supports optional Raymarine RayMic remote handset for second-station VHF operation at a secondary helm or cockpit
- IPX6 / IPX7 Waterproof — Rated for both water jet resistance and submersion; suitable for open helm and exposed installations
- Hailer / Foghorn — Built-in hailer and foghorn function when connected to an external hailer speaker
- Tri-Watch / Dual-Watch — Simultaneously monitors Channel 16 and two additional channels
- Compact Panel-Mount Design — Slim profile for flush helm installation with a clean, modern Raymarine aesthetic
Parts Desk Insights
Best Use Case: The Ray63 is the ideal primary VHF for mid-size to large powerboats and sailboats (typically 28 ft+) running a Raymarine helm system. The built-in GPS eliminates the need for a separate GPS feed to the radio for DSC, simplifying installation. NMEA 2000 connectivity allows DSC alerts and position data to be shared across the network to a chartplotter. The RayMic expansion makes it particularly well-suited for twin-helm vessels or boats where a cockpit handset is desired without running a second full radio. Pairs naturally with Raymarine Axiom chartplotters and Quantum radar for a fully integrated Raymarine system.
Installation Notes: Requires 12V DC power and a VHF antenna with PL-259 connector (sold separately). NMEA 2000 connection requires a backbone drop cable. Optional external GPS antenna connection available for improved GPS reception below decks. RayMic handset sold separately. Hailer function requires an external hailer speaker (sold separately).
Compatibility: NMEA 2000 and NMEA 0183 compatible. Works with Raymarine RayMic remote handset (sold separately). Compatible with Raymarine SeaTalk³ network via NMEA 2000 backbone. External GPS antenna input for optional improved positioning.
