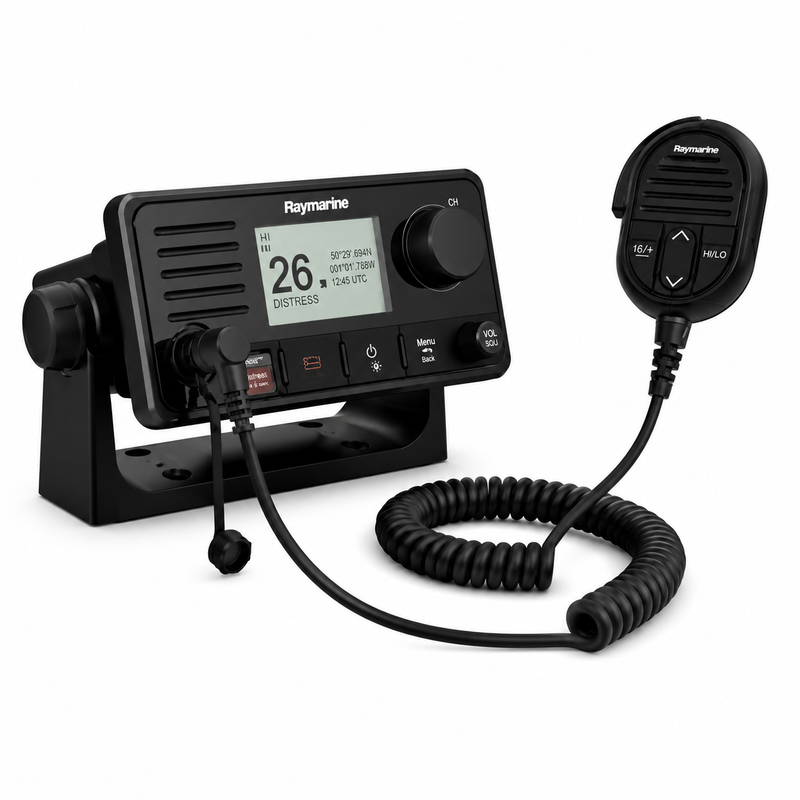

Raymarine Ray73 Fixed-Mount VHF Radio with GPS, DSC and AIS Receiver
The Ray73 is Raymarine’s premium fixed-mount VHF radio, combining Class D DSC communication, a built-in GPS/GNSS receiver, and an integrated AIS receiver in a single compact panel-mount unit. It delivers the full communication and safety capability of the Ray63 and adds real-time AIS target data — feeding vessel traffic information directly to your chartplotter, radar, and instruments over NMEA 2000 for enhanced situational awareness on busy waterways and offshore passages.
Key Features
- Built-In AIS Receiver — Receives AIS Class A and Class B vessel transmissions and shares target data with compatible chartplotters and displays via NMEA 2000; no separate AIS receiver required
- Class D DSC with Built-In GPS/GNSS — Transmits your vessel’s GPS position automatically with every DSC distress call; no external GPS source required
- 25W / 1W Selectable Power — Full 25W output for maximum range; 1W low-power mode for short-range communication
- NMEA 2000 & NMEA 0183 Networking — Full integration with chartplotters, autopilots, and instruments for position sharing, DSC alert routing, and AIS target overlay
- RayMic Expansion — Wired or Wireless — Supports optional Raymarine RayMic handset for second-station VHF operation; available in wired or wireless configurations
- Hailer / Foghorn — Built-in hailer and foghorn function when connected to an optional external hailer horn
- IPX6 / IPX7 Waterproof — Rated for water jet resistance and submersion; suitable for open helm and exposed installations
- Compact Panel-Mount Design — Slim profile for flush helm installation with a clean Raymarine aesthetic
Parts Desk Insights
Best Use Case: The Ray73 is the ideal primary VHF for vessels operating in commercial shipping lanes, busy coastal waters, or offshore passages where AIS situational awareness is a priority. The built-in AIS receiver eliminates the need for a separate AIS receiver unit, reducing helm clutter and installation complexity while feeding vessel traffic data directly to a Raymarine Axiom chartplotter or compatible MFD. Particularly well-suited for larger cruising sailboats and powerboats (30 ft+) running a full Raymarine helm system. The wireless RayMic option makes it an excellent choice for twin-helm vessels or catamarans where running wiring between stations is impractical. Step up from the Ray63 when AIS target display on your chartplotter is a requirement.
Installation Notes: Requires 12V DC power and a VHF antenna with PL-259 connector (sold separately). A separate AIS antenna or antenna splitter is recommended for optimal AIS reception — sharing the VHF antenna via a splitter is possible but may reduce AIS sensitivity. NMEA 2000 connection requires a backbone drop cable. RayMic handset and hailer horn sold separately.
Compatibility: NMEA 2000 and NMEA 0183 compatible. Works with Raymarine RayMic wired and wireless remote handsets (sold separately). Compatible with Raymarine SeaTalk³ network via NMEA 2000 backbone. AIS data feeds to any NMEA 2000 compatible chartplotter or MFD.
