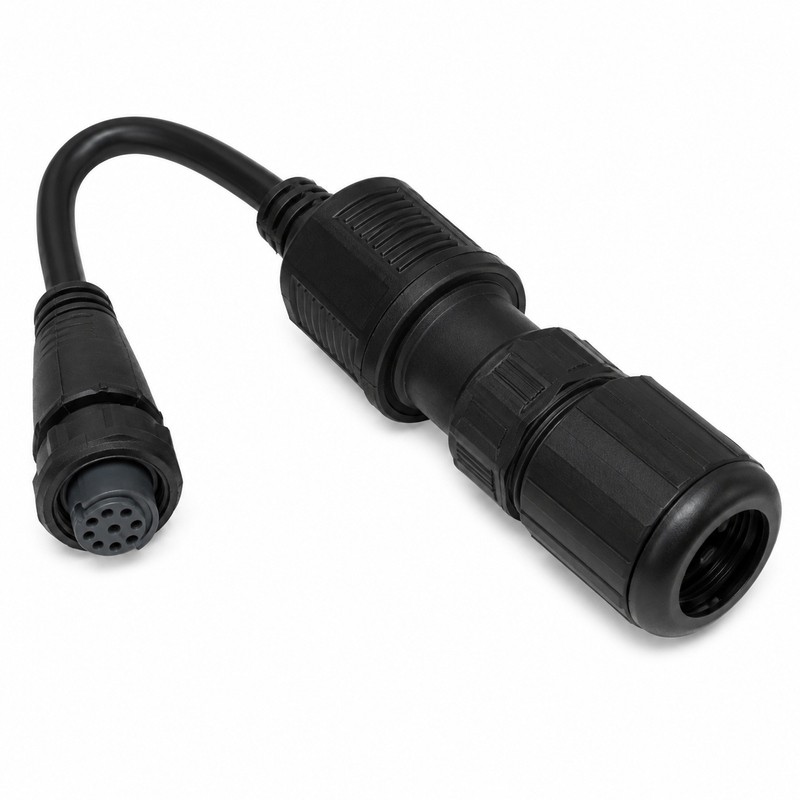

Raymarine A80247 RayNet to RJ45 (F) Adaptor – 100mm

Raymarine A80247 RayNet to RJ45 (F) Adaptor – 100mm

Part Number: A80247 (distributor SKU: 152-A80247)
Brand: Raymarine
Type: RayNet to RJ45 (Female) network adaptor
Length: 100mm
Connectors: RayNet male (device end) – RJ45 female (network end)

Product Overview

The Raymarine A80247 is a compact 100mm adaptor cable that connects a RayNet-equipped Raymarine multifunction display or chartplotter to an RJ45-terminated network device, switch, or cable run. RayNet is Raymarine’s weatherproof high-speed Ethernet connector used on Axiom, eS, gS, and compatible MFD series displays. This adaptor bridges the RayNet port to a standard RJ45 female socket, allowing the use of standard Ethernet patch cables or RJ45 networking accessories where a full RayNet-to-RayNet cable run is not needed.

• RayNet male connector on the Raymarine display end
• RJ45 female (socket) connector on the network end
• 100mm length — minimal cable bulk for tight panel and console installations
• Weatherproof RayNet connector for marine use
• Compatible with Axiom, eS, gS, and all RayNet-equipped Raymarine MFDs
• Weight: approx. 30 g

Compatible Applications

• Connecting a RayNet-equipped Raymarine MFD (Axiom, Axiom+, Axiom Pro, eS, gS series) to an Ethernet switch or router with RJ45 ports
• Adapting a RayNet port to accept a standard RJ45 patch cable in an onboard network installation
• Tight helm or panel installations where a 100mm adaptor avoids cable management issues from a full-length network cable
• Network installations where a compatible RJ45 cable run completes the connection from the adaptor to the next network device

Note: This adaptor has a RJ45 female socket on the network end. To connect directly to another RJ45-terminated cable or device, use a standard RJ45 male-terminated Ethernet cable. For a direct RayNet-to-RJ45 male adaptor, see the Raymarine A80513 RayNet (M) to RJ45 (M) Adaptor Cable.

Part Number Reference

• Raymarine: A80247
• Distributor SKU: 152-A80247
• Related RayNet (M) to RJ45 (M) adaptor: Raymarine A80513 RayNet (M) to RJ45 (M) Adaptor Cable – 100mm
• Related RayNet to RayNet cable, 400mm: Raymarine A80161 RayNet to RayNet Cable – 400mm
• Related RayNet to RayNet cable, 2m: Raymarine A62361 RayNet to RayNet Cable – 2m / 6.5 ft

Installation Notes

• Connect the RayNet male end to the RayNet port on the Raymarine MFD — align the connector and rotate to lock
• Connect a standard RJ45 male-terminated Ethernet cable to the RJ45 female socket on the other end
• Ensure all connectors are fully seated and locked to prevent intermittent network dropouts
• The 100mm length is suited to situations where the network switch or RJ45 patch cable is immediately adjacent to the display; use a longer RayNet or RayNet-to-RJ45 cable for runs between separate locations
• After connection, verify the Raymarine display detects the network and connected devices through the MFD’s network settings

Technical FAQ

What is RayNet? RayNet is Raymarine’s proprietary waterproof Ethernet connector format used on Axiom, eS, gS, and compatible multifunction display series. It carries standard 100Mbps Ethernet but uses a sealed circular connector designed for marine environments.

What is the difference between A80247 and A80513? The A80247 has a RJ45 female (socket) connector — it accepts a standard RJ45 male plug. The A80513 has a RJ45 male (plug) connector for direct connection to a RJ45 female port or socket. Choose based on what the downstream device requires.

Can I use a standard Ethernet cable with this adaptor? Yes — the RJ45 female socket on the A80247 accepts any standard Cat5e or Cat6 RJ45 male-terminated Ethernet patch cable.

Does this work with all Raymarine MFDs? The A80247 is compatible with any Raymarine MFD that has a RayNet Ethernet port, including Axiom, Axiom+, Axiom Pro, eS series, and gS series displays.

Related Products

• Raymarine A80513 RayNet (M) to RJ45 (M) Adaptor Cable – 100mm
• Raymarine A80161 RayNet to RayNet Cable – Waterproof | 400mm / 1.3 ft
• Raymarine A62361 RayNet to RayNet Cable – Waterproof | 2m / 6.5 ft
• Raymarine SeaTalkng Starter Kit
• Raymarine A06031 SeaTalkng Backbone Terminator

Parts Desk Insights

The A80247 is the right choice when a customer needs to tap a RayNet port into an RJ45-connected device or cable without adding cable bulk at the display. The 100mm length is intentionally short — it’s an adaptor, not a cable run — so the downstream RJ45 device or patch cable needs to be immediately adjacent. The most common confusion is between this (RJ45 female socket) and the A80513 (RJ45 male plug) — always confirm what the customer needs to connect to before recommending one over the other. Intermittent network dropouts after installation are almost always traced to a partially seated RayNet connector — the connector must be rotated until it locks.
