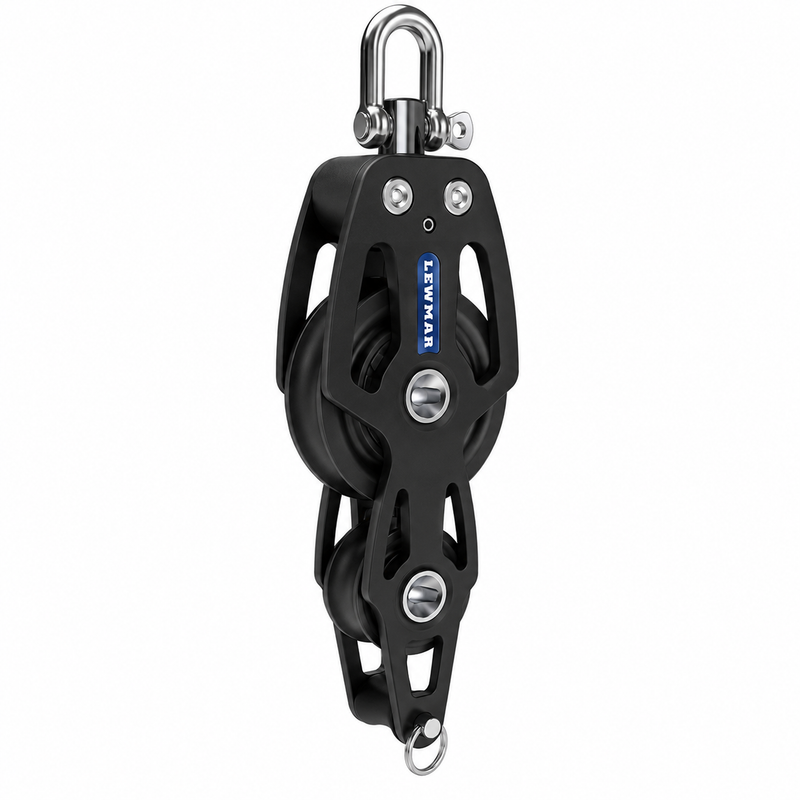

Lewmar 72mm HTX Fiddle Block with Becket – Black | 29197234

Lewmar 72mm HTX Fiddle Block with Becket – Black | 29197234

The Lewmar HTX 72mm Fiddle Block with Becket combines high-load capacity with the versatility of a built-in line termination point. The fiddle configuration delivers compact mechanical advantage in a slim profile, while the integrated becket allows the standing end of the purchase line to terminate directly at the block — making it the right choice for multi-part purchase systems, cascades, and fine-tune controls where a standard fiddle block won’t do.

The self-aligning swivel head adjusts to changing lead angles automatically, reducing friction and side loading across the full range of motion. Strong aluminum side cheeks, a central plain bearing, and Delrin side-thrust ball bearings complete the HTX construction.

Specifications

• Part Number: 29197234
• Sheave Diameter: 72 mm
• Configuration: Fiddle (double sheave, vertical) with integrated becket
• Maximum Line Diameter: 1/2" (12 mm) — see fitment note
• Working Load Limit: 4,405 lbs (2,000 kg)
• Breaking Load: 8,810 lbs (4,000 kg)
• Weight: 560 g (19.6 oz)
• Finish: Black HTX
• UPC: 743683204302

Features

• Fiddle configuration — compact vertical twin-sheave layout for high purchase in tight spaces
• Integrated becket — terminates the standing end of the purchase line directly at the block
• Self-aligning swivel head — adjusts to changing lead angles to reduce friction and side loading
• Strong aluminum side cheeks for high-load durability
• Central plain bearing optimized for efficiency under high loads
• Delrin side-thrust ball bearings for smooth, consistent operation
• Grub screw swivel head locking mechanism

Compatible Applications

• Multi-part purchase systems requiring a compact fiddle block with line termination
• Cascade and fine-tune control systems on performance cruising and racing sailboats
• Boom vang and backstay purchase arrangements
• High-load control lines using modern, reduced-diameter running rigging
• Applications where the standing end must terminate at the block rather than at a separate attachment point

Fitment Note

Important line-size detail: While the broader 72mm HTX family is rated for line up to 14 mm (9/16"), Lewmar’s fiddle-specific guidance indicates a maximum of approximately 12 mm (1/2") for this configuration. If you’re running 14 mm line, confirm the exact rope clearance for this fiddle variant before ordering.

Related Products

• Lewmar 72mm HTX Fiddle Block – Black (without Becket)
• Lewmar 72mm HTX Single Block – Black
• Lewmar 72mm HTX Double Block – Black
• Lewmar 72mm HTX Single Toggle Head Block – Black
• Lewmar 72mm Synchro Fiddle Block with Becket & Cam – Black

Parts Desk Insights

Best use case: This block is the right choice when you need a high-load fiddle block and a built-in termination point for the standing end of your purchase system — the becket eliminates the need for a separate attachment shackle or bail at the base of the tackle, which keeps the system more compact and reduces the number of potential failure points. It’s particularly well suited to vang and backstay purchase systems on performance cruisers and racers where space is tight and loads are high.

The key distinction from the standard 72mm HTX Fiddle is simply the becket — if your purchase system doesn’t need a standing-end termination at the block, the version without becket is the simpler choice. And as with all HTX fiddle variants, confirm your rope diameter against the 12 mm fiddle-specific limit before ordering if you’re running larger line.
