Jabsco Par-Max Shower Drain Pump – 12V, 3.5 GPM, Self-Priming with Thermal Overload Protection (32601-0092)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

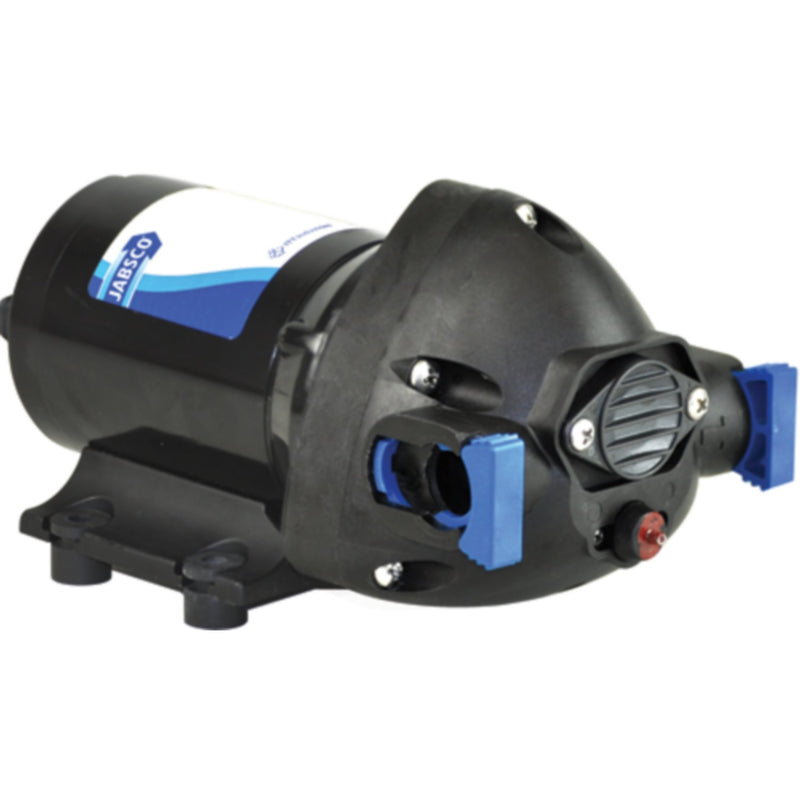

Jabsco Par-Max Shower Drain Pump – 12V, 3.5 GPM (32601-0092)
A purpose-built shower sump pump designed to drain marine shower sumps and wet bilges efficiently and reliably. The Par-Max 32601-0092 self-primes up to 10 feet, so it can be mounted above the wet area — keeping the motor out of standing water and extending its service life. The heavy-duty, continuous-rated motor is sealed for harsh bilge environments and built to handle the demanding duty cycles of a busy onboard shower.
Thermal overload protection automatically shuts the motor down if it overheats, then restarts it once it cools — protecting the pump without requiring manual intervention. A pump guard is included to protect the impeller from debris.
Key Features
- 12V DC operation
- 3.5 GPM flow rate
- Self-priming up to 10' — can be mounted above the wet bilge
- Continuous-rated heavy-duty motor sealed for bilge environments
- Thermal overload protection with automatic restart
- Extended dry-run capability
- Includes pump guard
Compatible Applications
- Marine shower sump and drain pump installations
- Wet bilge drainage on 12V electrical systems
- Head compartment shower drain systems
- Any marine application requiring a self-priming, above-bilge-mounted drain pump
Parts Desk Insights
The 32601-0092 is the right pump when you need a dedicated shower drain solution that can be mounted above the bilge — the 10-foot self-prime capability is the key spec that makes this possible. The thermal overload protection and extended dry-run design make it forgiving in real-world use, where the pump may run briefly without water if the sump empties quickly. For an alternative shower drain solution with a built-in float switch and enclosure, see the Rule 98B24 Marine Shower Drain Box – 800 GPH, 24V. For freshwater pressure system pumps in the Par-Max line, see the Jabsco Par-Max Water System Pump, 12V, 3 GPM or the Jabsco Par-Max Heavy Duty Water System Pump, 12V, 5 GPM.
