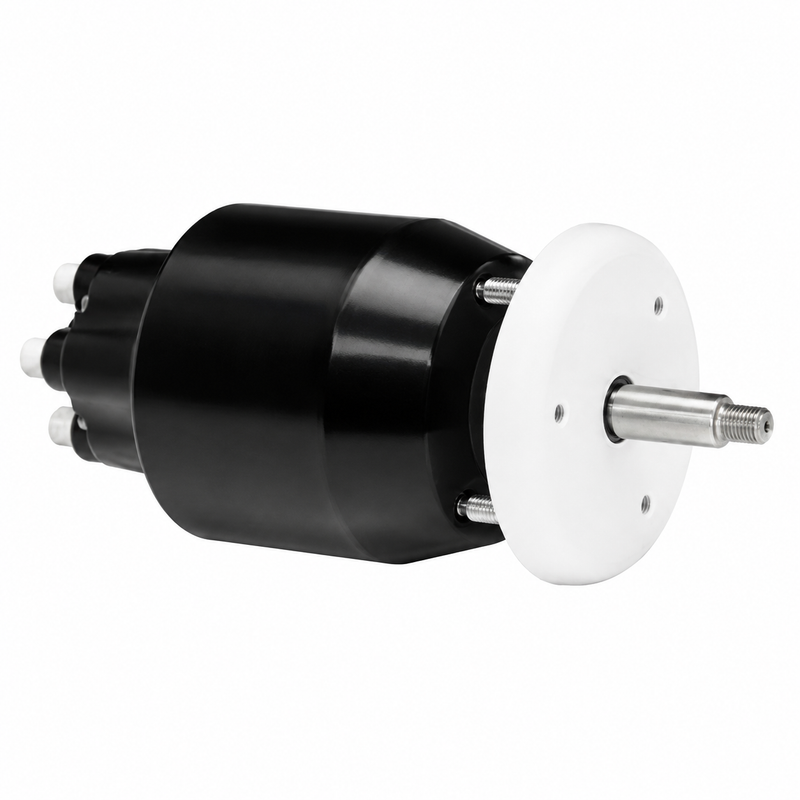

Uflex UP28R Rear Mount Hydraulic Steering Helm – SeaStar Compatible, 3/4" Tapered Shaft
The Uflex UP28R is a rear-mount hydraulic steering helm from the UP28 series — designed for dash configurations where the helm must be installed from behind the dash rather than through the front. It delivers the same UP28-series displacement and SeaStar® compatibility as the front-mount UP28FM, in a rear-mount configuration that suits certain helm station layouts and console designs where front-mount access is limited or not possible.
Compatible with Teleflex/SeaStar cylinders, hoses, and oil, the UP28R integrates cleanly into existing SeaStar-compatible hydraulic steering systems without requiring system-wide replacement.
Key Features
- Rear-Mount Configuration — Installs from behind the dash; suited for consoles where front-mount access is not available
- UP28 Series Displacement — Higher fluid output per stroke than UP25-series helms for larger cylinder and higher-demand applications
- Compact Design — Low-profile configuration for clean dash installations
- Built-In Lock Valve — Provides positive rudder lock to hold steering position under load
- Integral Relief Valve — Over-pressure protection rated at 1,000 PSI
- 3/4" Tapered Stainless Steel Shaft — Corrosion-resistant; accepts most standard marine steering wheels
- Convenient Front-of-Dash Fill — Easy fluid access without removing the helm from the dash
- Easily Accessible Lock Valve and Shaft Seal — Simplified field servicing and seal replacement
- Adjustable Boss Fittings — Compatible with Uflex Kit OB, Kit OBSVS hose kits, and SeaStar hoses
- Relief Valve Pressure: 1,000 PSI
- Part Number: UP28R | SKU: 216-UP28R
Compatible Applications
- Dash configurations requiring rear-mount helm installation
- Outboard and sterndrive hydraulic steering systems using SeaStar-compatible cylinders and hoses
- Compatible with Teleflex/SeaStar cylinders, hoses, and hydraulic oil
- Compatible with Uflex Kit OB and Kit OBSVS hose kits
- Pairs with the Uflex UC132OBS Sterndrive Cylinder and UC133IOB Sterndrive Cylinder for sterndrive applications
- For front-mount UP28 series installations, see the Uflex UP28FM Front Mount Hydraulic Helm
- For standard-output front-mount applications, see the Uflex UP25FM
Parts Desk Insights
Best Use Case: The UP28R is the correct helm when your console or dash design requires the helm to be installed from the rear — a configuration that comes up on certain center consoles, walkarounds, and custom helm stations where the dash panel is not accessible from the front for a standard front-mount installation. The rear-mount design is less common than front-mount, so if you’re replacing a failed helm, confirm the original was a rear-mount unit before ordering — front-mount and rear-mount helms are not interchangeable in most dash configurations. The UP28R carries the same UP28-series displacement advantage over the UP25-series as the front-mount UP28FM: more fluid per stroke, fewer turns lock-to-lock, and more responsive steering feel on larger systems. If your dash supports front-mount installation, the UP28FM is typically easier to install and service. For high-performance applications, see the UP25FSVS SilverSteer™ Helm.
