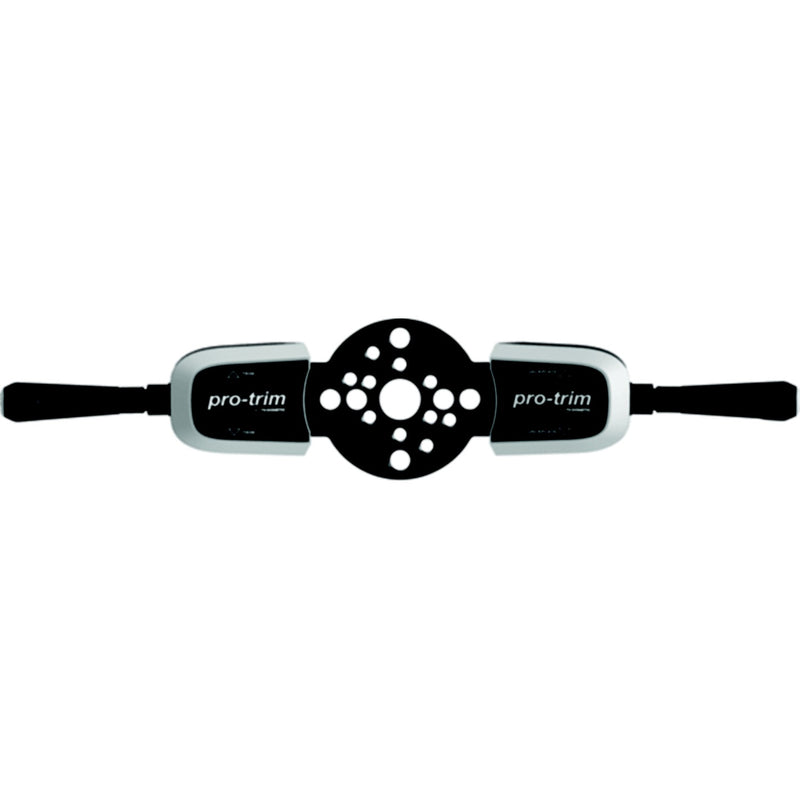

Dometic PT20002P Pro-Trim Steering Wheel Trim & Jackplate Controller – Dual Function
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Dometic PT20002P Pro-Trim Steering Wheel Trim & Jackplate Controller – Dual Function
The Dometic PT20002P Pro-Trim Dual is a steering wheel-mounted controller that manages two functions — engine trim and jackplate — from a single unit at the wheel. Where the single-function PT10002P controls one output, the PT20002P handles both trim and jackplate independently, giving the driver full control of both systems without reaching for dash-mounted switches.
The wireless design eliminates cords around the steering wheel, and the stainless steel bracket adjusts for standard and deep-dish wheels. The marine-grade wiring harness is color-coded to match existing trim and jackplate wiring for straightforward installation.
Key Features
- Dual-Function Control — Controls two outputs independently: engine trim and jackplate from a single steering wheel-mounted unit
- Steering Wheel Mount — Keeps both trim and jackplate control at the wheel; stainless steel bracket adjusts for standard and deep-dish wheels
- Momentary-On Switches — Center off position at rest; each switch actuates up and down independently
- UV-Stabilized ABS Switch Cover — Blends with dash and cockpit aesthetics; resistant to UV fading
- Marine-Grade Wiring Harness — Heavy-duty, color-coded to match existing trim and jackplate wiring
- Mylar® Decals Included — Allows labeling of each switch function for clear identification
- All Mounting Hardware Included — Complete hardware and instructions included for installation
- Part Number: PT20002P | SKU: 1-PT20002P
Compatible Applications
- Steering wheel-mounted dual-function control for outboard engine trim and hydraulic or electric jackplate systems
- Compatible with most steering systems; stainless steel bracket adjusts for standard and deep-dish wheels
- Particularly suited for boats with hydraulic steering where cord management from wheel to dash is complex
- Verify wiring harness compatibility with your specific trim and jackplate systems before installation
- For single-function trim or jackplate control only, see the Dometic PT10002P Pro-Trim Single Function Controller
Parts Desk Insights
Best Use Case: The PT20002P is the right controller when you run both a jackplate and need engine trim control at the wheel — the combination that’s standard on high-performance bass boats and tournament flats boats where the driver is constantly adjusting both trim and jackplate height while running. Having both controls at the wheel means the driver never has to take a hand off the wheel or look away from the water to make adjustments, which matters at speed. The dual-function unit is the more capable and more expensive option compared to the PT10002P — if you only need to control one function from the wheel, the PT10002P is the more cost-effective choice. Confirm your trim and jackplate systems’ wiring is compatible with the Pro-Trim harness before installation.
