Uflex UP25TX52 Front Mount Tilt Hydraulic Steering Helm – X52 Tilt, SeaStar Compatible, 48° Range

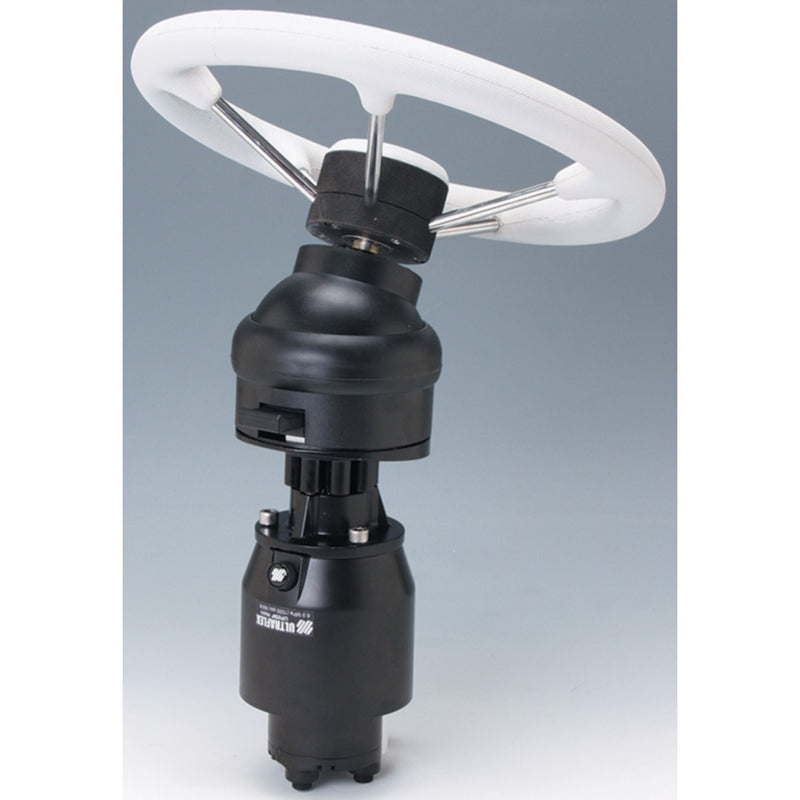

The Uflex UP25TX52 is the tilt version of the UP25FM front-mount hydraulic steering helm, combining the same SeaStar® drop-in compatibility and proven hydraulic performance with the X52 tilt mechanism for adjustable wheel positioning. With a 48° tilt range and five locking positions, the UP25TX52 lets you dial in the ideal steering wheel angle for comfort and control — a meaningful ergonomic upgrade for boats where the helm position is fixed and the standard non-tilt helm puts the wheel at an awkward angle.
Like the UP25FM, it is a direct drop-in replacement for SeaStar® front-mount helms and is compatible with Teleflex/SeaStar cylinders, hoses, and oil.
Key Features
- X52 Tilt Mechanism — 48° tilt range with five locking positions for adjustable steering wheel angle
- Direct SeaStar® Drop-In Replacement — Same mounting footprint as SeaStar front-mount helms; no additional dash modifications required
- Compact Design — Low-profile front-mount configuration for clean dash installations
- Built-In Lock Valve — Provides positive rudder lock to hold steering position under load
- Integral Relief Valve — Over-pressure protection rated at 1,000 PSI
- 3/4" Tapered Stainless Steel Shaft — Corrosion-resistant stainless steel; accepts most standard marine steering wheels
- Convenient Front-of-Dash Fill — Easy fluid access without removing the helm from the dash
- Easily Accessible Lock Valve and Shaft Seal — Simplified field servicing and seal replacement
- Adjustable Boss Fittings — Compatible with Uflex Kit OB, Kit OBSVS hose kits, and SeaStar hoses
- Part Number: UP25TX52 | SKU: 216-UP25TX52
Compatible Applications
- Direct replacement for SeaStar® front-mount tilt hydraulic steering helms
- Outboard and sterndrive hydraulic steering systems using SeaStar-compatible cylinders and hoses
- Compatible with Teleflex/SeaStar cylinders, hoses, and hydraulic oil
- Compatible with Uflex Kit OB and Kit OBSVS hose kits
- X52 tilt mechanism fits standard Uflex tilt-mount rotary, rack and pinion, and hydraulic helms
- Note: X52 tilt mechanism is not compatible with SilverSteer™ or MasterDrive™ steering systems
- For the non-tilt version, see the Uflex UP25FM Front Mount Hydraulic Helm
- For high-performance tilt applications, see the Uflex UP25FSVS SilverSteer™ Helm
Parts Desk Insights
Best Use Case: The UP25TX52 is the right helm when you want the SeaStar drop-in compatibility and proven hydraulic performance of the UP25FM, but need the ability to adjust the steering wheel angle for driver comfort. The 48° tilt range with five locking positions covers most ergonomic needs — whether you’re a taller driver who needs the wheel tilted away, or a shorter driver who needs it closer. It’s particularly useful on boats where the dash angle puts the standard helm at an uncomfortable position for extended runs. The stainless steel shaft is a step up from the aluminum shaft on the non-tilt UP25FM, adding corrosion resistance in saltwater environments. Note that the X52 tilt mechanism is not compatible with SilverSteer™ or MasterDrive™ systems — if you need tilt on a high-performance system, confirm compatibility before ordering. For a non-tilt front-mount helm, see the Uflex UP25FM.
