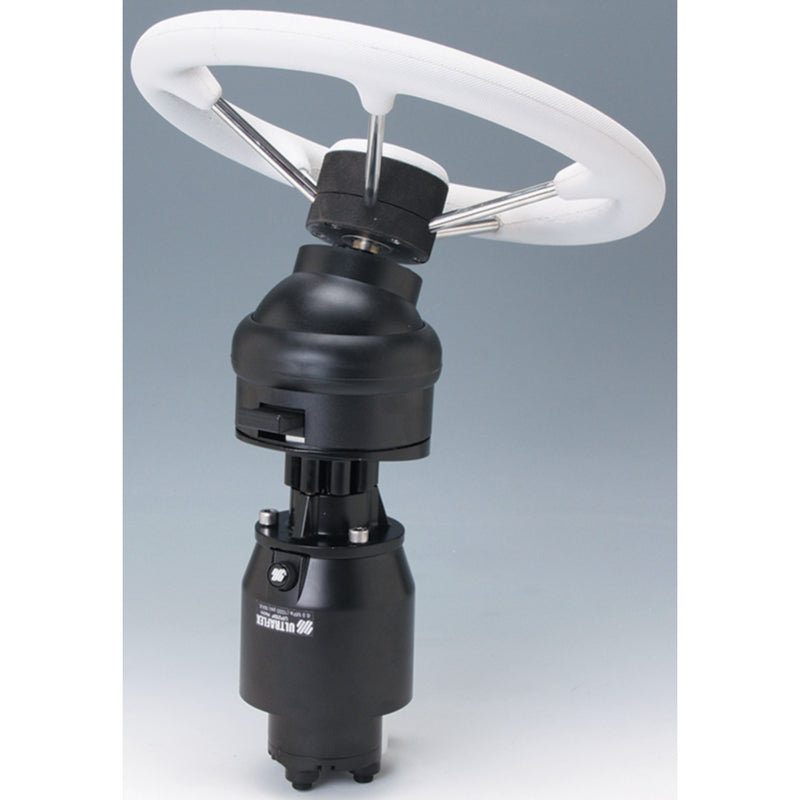

Uflex UP28TX52 Front Mount Tilt Hydraulic Steering Helm – X52 Tilt, UP28 Series, 48° Range
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Uflex UP28TX52 Front Mount Tilt Hydraulic Steering Helm – X52 Tilt, UP28 Series, 48° Range
The Uflex UP28TX52 combines the higher-displacement UP28 series hydraulic helm with the X52 tilt mechanism — delivering both the steering authority of the UP28 series and the ergonomic flexibility of a 48° adjustable tilt range with five locking positions. It is a direct drop-in replacement for SeaStar® front-mount tilt helms and is fully compatible with Teleflex/SeaStar cylinders, hoses, and oil.
The UP28TX52 is the right choice when you need more steering output than the UP25TX52 provides, combined with the ability to adjust the steering wheel angle for driver comfort.
Key Features
- UP28 Series Displacement — Higher fluid output per stroke than UP25-series helms for larger cylinder and higher-demand applications
- X52 Tilt Mechanism — 48° tilt range with five locking positions for adjustable steering wheel angle
- Direct SeaStar® Drop-In Replacement — Same mounting footprint as SeaStar front-mount tilt helms; no additional dash modifications required
- Compact Design — Low-profile front-mount configuration for clean dash installations
- Built-In Lock Valve — Provides positive rudder lock to hold steering position under load
- Integral Relief Valve — Over-pressure protection rated at 1,000 PSI
- 3/4" Tapered Stainless Steel Shaft — Corrosion-resistant; accepts most standard marine steering wheels
- Convenient Front-of-Dash Fill — Easy fluid access without removing the helm from the dash
- Easily Accessible Lock Valve and Shaft Seal — Simplified field servicing and seal replacement
- Adjustable Boss Fittings — Compatible with Uflex Kit OB, Kit OBSVS hose kits, and SeaStar hoses
- Relief Valve Pressure: 1,000 PSI
- Part Number: UP28TX52 | SKU: 216-UP28TX52
Compatible Applications
- Direct replacement for SeaStar® front-mount tilt hydraulic steering helms requiring UP28-series output
- Larger outboard and sterndrive hydraulic steering systems where the UP25TX52 is insufficient
- Dash configurations requiring both tilt adjustment and higher-displacement helm output
- Compatible with Teleflex/SeaStar cylinders, hoses, and hydraulic oil
- Compatible with Uflex Kit OB and Kit OBSVS hose kits
- X52 tilt mechanism fits standard Uflex tilt-mount rotary, rack and pinion, and hydraulic helms
- Note: X52 tilt mechanism is not compatible with SilverSteer™ or MasterDrive™ steering systems
- For the non-tilt UP28 version, see the Uflex UP28FM Front Mount Hydraulic Helm
- For the tilt UP25 version, see the Uflex UP25TX52 Tilt Helm
Parts Desk Insights
Best Use Case: The UP28TX52 is the right helm when you need both the higher steering output of the UP28 series and the ergonomic benefit of a tilt-adjustable wheel — typically on larger outboard boats or twin-engine applications where the UP25TX52 feels slow or requires too many turns, and where the fixed wheel angle of a non-tilt helm is uncomfortable for the primary driver. It’s the most capable tilt helm in the standard Uflex lineup short of the SilverSteer™ system. As with all X52 tilt helms, confirm the original helm was a tilt unit before ordering — tilt and non-tilt helms are not interchangeable in most dash configurations. The X52 mechanism is not compatible with SilverSteer™ or MasterDrive™ systems. For non-tilt UP28 installations, see the UP28FM. For high-performance bass and flats boat applications, see the UP25FSVS SilverSteer™ Helm.
