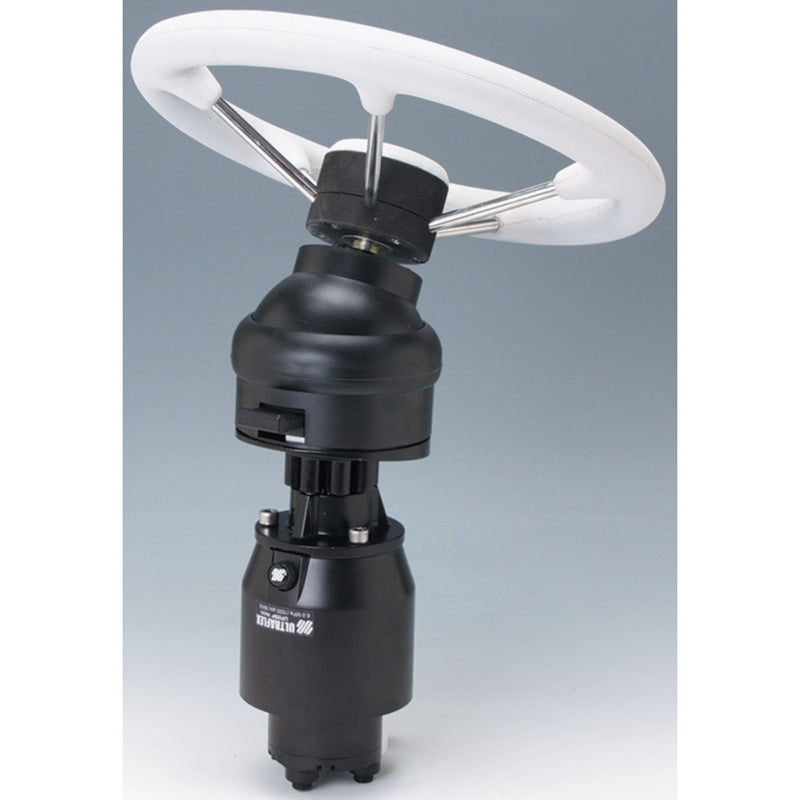

Uflex UP33TX52 Front Mount Tilt Hydraulic Steering Helm – X52 Tilt, UP33 Series, 48° Range
The Uflex UP33TX52 is the top of the standard Uflex tilt helm lineup — combining the highest-output UP33 series hydraulic helm with the X52 tilt mechanism for a 48° adjustable tilt range and five locking positions. It is a direct drop-in replacement for SeaStar® front-mount tilt helms and is fully compatible with Teleflex/SeaStar cylinders, hoses, and oil.
The UP33TX52 is the right choice when you need the maximum steering output of the UP33 series and the ergonomic flexibility of a tilt-adjustable wheel — the most capable combination in the standard Uflex tilt helm range, short of the SilverSteer™ system.
Key Features
- UP33 Series — Highest Standard Output — Maximum fluid output per stroke in the standard Uflex tilt helm lineup for the most demanding applications
- X52 Tilt Mechanism — 48° tilt range with five locking positions for adjustable steering wheel angle
- Direct SeaStar® Drop-In Replacement — Same mounting footprint as SeaStar front-mount tilt helms; no additional dash modifications required
- Compact Design — Low-profile front-mount configuration for clean dash installations
- Built-In Lock Valve — Provides positive rudder lock to hold steering position under load
- Integral Relief Valve — Over-pressure protection rated at 1,000 PSI
- 3/4" Tapered Stainless Steel Shaft — Corrosion-resistant; accepts most standard marine steering wheels
- Convenient Front-of-Dash Fill — Easy fluid access without removing the helm from the dash
- Easily Accessible Lock Valve and Shaft Seal — Simplified field servicing and seal replacement
- Adjustable Boss Fittings — Compatible with Uflex Kit OB, Kit OBSVS hose kits, and SeaStar hoses
- Relief Valve Pressure: 1,000 PSI
- Part Number: UP33TX52 | SKU: 216-UP33TX52
Compatible Applications
- Direct replacement for SeaStar® front-mount tilt hydraulic steering helms requiring UP33-series output
- Larger outboard and sterndrive hydraulic steering systems where the UP28TX52 is insufficient
- Applications requiring both maximum standard-output tilt helm performance and adjustable wheel positioning
- Compatible with Teleflex/SeaStar cylinders, hoses, and hydraulic oil
- Compatible with Uflex Kit OB and Kit OBSVS hose kits
- X52 tilt mechanism fits standard Uflex tilt-mount rotary, rack and pinion, and hydraulic helms
- Note: X52 tilt mechanism is not compatible with SilverSteer™ or MasterDrive™ steering systems
- For the non-tilt UP33 version, see the Uflex UP28R Rear Mount Helm or UP28FM
- For the lower-output tilt options, see the UP25TX52 or UP28TX52
Parts Desk Insights
Best Use Case: The UP33TX52 is the right helm when you need the highest steering output available in the standard Uflex tilt helm lineup — typically on the largest single-engine outboard boats, twin-engine applications, or heavy sterndrive setups where the UP28TX52 still feels slow or requires too many turns lock-to-lock, and where the driver also needs tilt adjustment for comfort. It’s the most capable standard tilt helm Uflex offers before stepping into the SilverSteer™ system. As with all X52 tilt helms, confirm the original helm was a tilt unit before ordering — tilt and non-tilt helms are not interchangeable in most dash configurations. The X52 mechanism is not compatible with SilverSteer™ or MasterDrive™ systems. If tilt adjustment isn’t required, the non-tilt UP28FM is a more cost-effective option at similar output. For high-performance bass and flats boat applications where SilverSteer™ output is needed, see the UP25FSVS or UP33FSVS SilverSteer™ helms.
